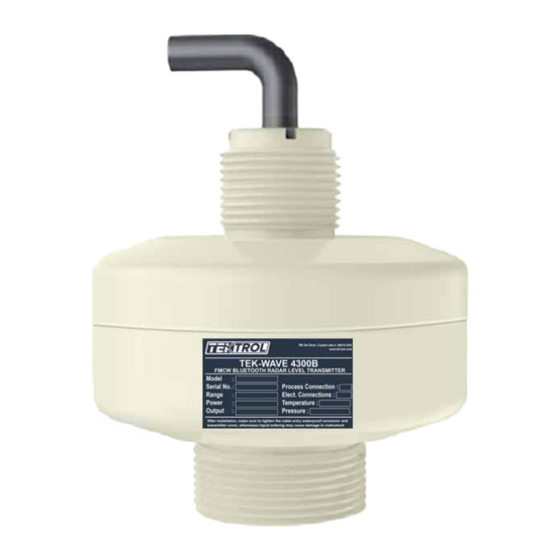

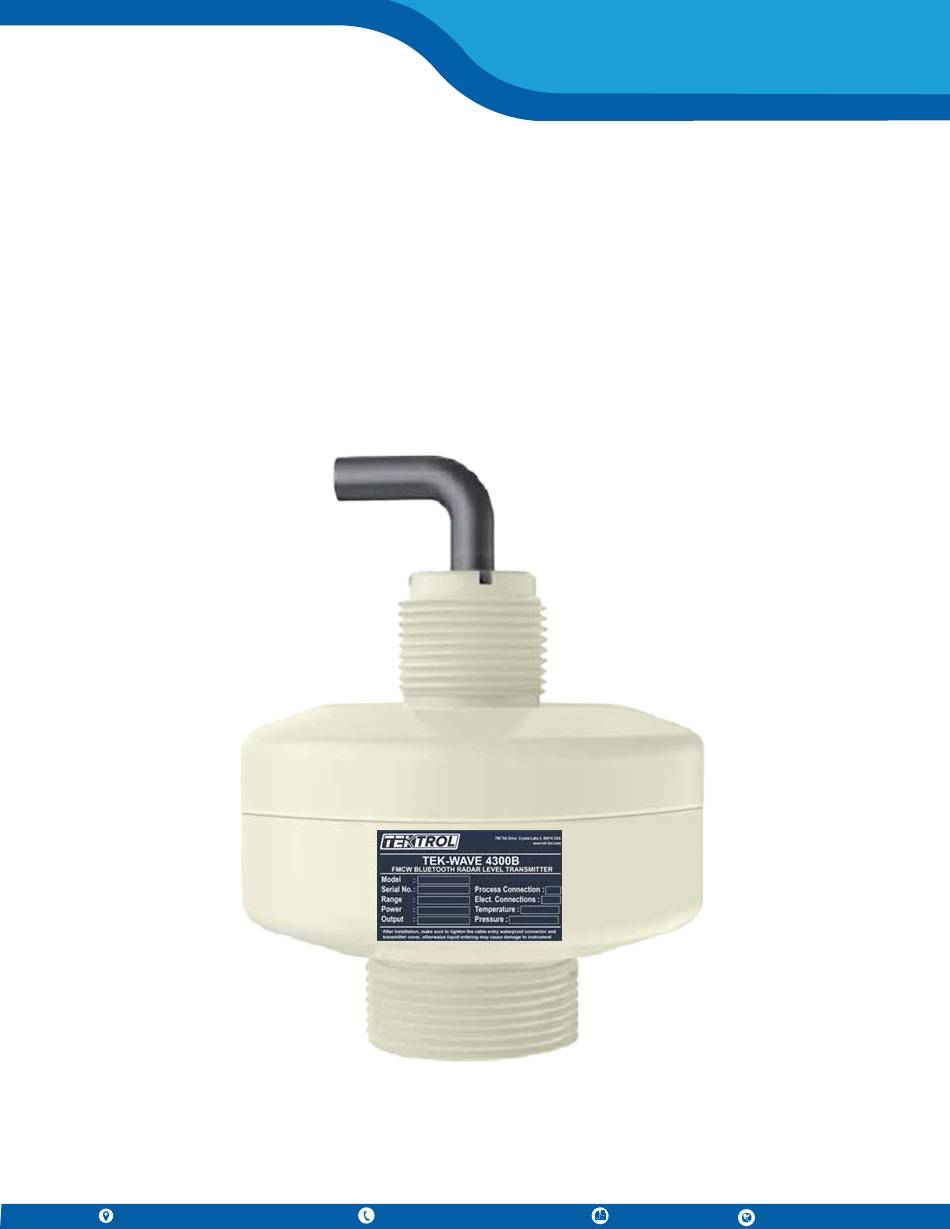

- Page 1 Quick Start Guide TEK-WAVE 4300B FMCW Bluetooth Radar Level Transmitter 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 | +1 847 655 7428 +1 847 655 6147 www.tek-trol.com...
-
Page 2: Before You Begin
Operating Instructions and must follow the instructions they contain. When using the measuring device in hazardous areas, installation must comply with the corresponding national standards and regulations. 2. Unpack Tek-Wave 4300B FMCW Bluetooth Radar Level Transmitter 3. Dimensional Drawing 3/4" NPT 1.5" NPT... - Page 3 Technology Solutions • Mounting brackets 17.25” 21.5” Fig 2: Mounting Bracket Side Angle 2” Fig 3: Mounting Bracket Back Angle Tek-Wave 4300B...
- Page 4 Quick Start Guide 2.25” 6” 6” 2” 1.5” NPT Fig 4: Mounting Bracket Top Angle Fig 5: Mounting Bracket 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 | +1 847 655 7428 +1 847 655 6147 www.tek-trol.com...
-
Page 5: Power Supply
Fig 6: Wiring Connections 5. Installation • General mounting conditions • The Tek-Wave 4300B should not be mounted closer than 8” (200mm) to the vessel wall. • The Tek-Wave 4300B is not mounted in the center because interference can cause signal loss. •... - Page 6 Quick Start Guide • Stirring Fan in Vessel If there is a stirring fan in the vessel: • The instrument should be mounted at 1/2 of the distance from the inner wall to the stirring fan. • Carry out false echo storage to reduce the interference from the stirring fan. Fig 8: Mounting Position for Stirring Fan in Vessel •...
- Page 7 Please install “Blueset” in your smart phone. • Allow the APP to utilise the location and storage functions. • Hold down the APP till it indicates “APP info”. • ”APP info”> “Permissions”>”Location”>”Allow” • ”APP info” >”Permissions”>”Storage”>”Allow” • Start APP. • Select Device “SENSOR 01”. Tek-Wave 4300B...
- Page 8 Quick Start Guide Note: - If the 4300B is having any Alarm like HH or LL. the output current will be either 20.5 mA or 3.8 mA.at this point the Bluetooth app will starts connect/disconnect or get hang to previous screen until the unit reaches to normal operation.
- Page 9 • Enter menu with echo curve by entering “Level Confirm”. • If you set a new measuring range and want to change the X range, please re-write the data on the End and save it by Refresh Range Tek-Wave 4300B...
- Page 10 Quick Start Guide • Check Fake Echo • If there is an obstacle inside the tank that generates a fake echo, you will need to create a fake echo. • Please use “+” or “-” to move the line indicated by the arrow to set the fake echo position of false echo and press behind Create and you will get new double echo curve.
- Page 11 For more menu information, please contact us, and you can also refer to the menu overview. *Note: The distance between device and smartphone should be not more than 25’ to get better signal communication. • Modbus Software Setup • Connect the 4300B to the 4300B-USB tool and power the 4300B. Tek-Wave 4300B...
- Page 12 Quick Start Guide • Launch the 4300B Modbus Program. • When the program opens. Click Connect to Poll the 4300B. • It will take the software a few moments to find the 4300B. 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 | +1 847 655 7428 +1 847 655 6147 www.tek-trol.com...
- Page 13 From the Quick Setup screen the Max and Min range can be set up the Max range is your 4mA and the min range is you 20mA. You can also look at the Echo Curve on this screen. Tek-Wave 4300B...
- Page 14 Quick Start Guide • In the Basic Setup screen the following parameter can be adjusted. • In the System screen you can simulate a mA signal to make use you output is setup correctly at your PLC or Scada. 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 | +1 847 655 7428 +1 847 655 6147 www.tek-trol.com...
- Page 15 Technology Solutions • In the Communication screen the HART and Mobus communication paraments can be changed. • The Security screen will allow the following parameters to be changed. Tek-Wave 4300B...
- Page 16 Quick Start Guide • The Info screen will give you all the manufacturing information about the 4300B. • After you have uploaded all the modifications to the 4300B, click Disconnect and remove the 4300B from your PC. 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 | +1 847 655 7428 +1 847 655 6147 www.tek-trol.com...
- Page 17 Technology Solutions 7. Menu Tree Tek-Wave 4300B...
- Page 18 Tek-Trol Middle East FZE PO Box 121 Windsor, Colorado Florijnstraat 18, 4879 AH SAIF Zone, Y1-067, PO BOX No. 80550, USA Etten-Leur, Netherlands 21125, Sharjah, UAE Sales: +1 847-857-6076 Sales: +31 76-2031908 Sales: +971-6526-8344 Support: +1 847-857-6076 Email: tektrol@tek-trol.com www.tek-trol.com Tek-Wave 4300B...
