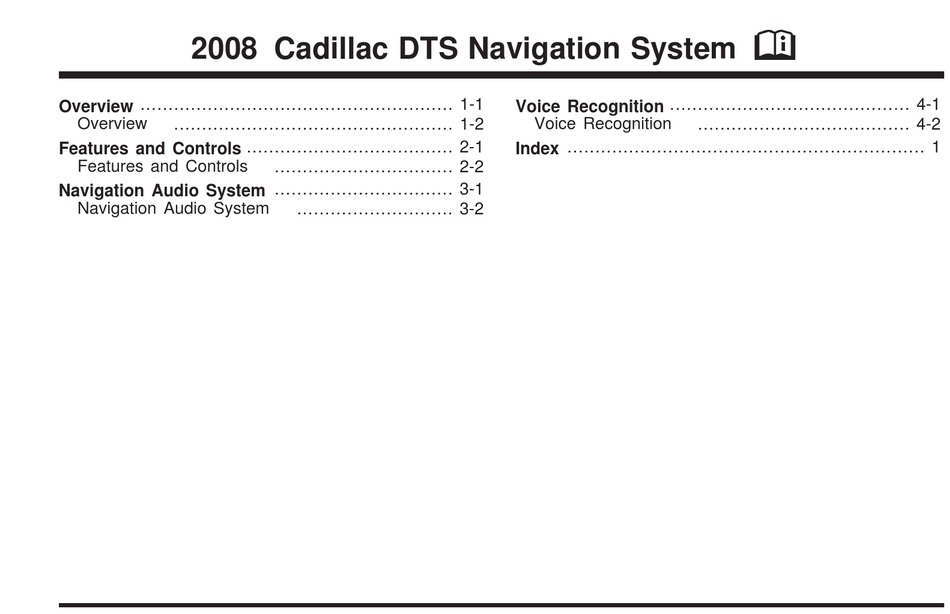

2008 Cadillac DTS Navigation System
Overview ........................................................ 1-1
Overview
.................................................. 1-2
Features and Controls ..................................... 2-1
Features and Controls
Navigation Audio System ................................ 3-1
Navigation Audio System
................................ 2-2
............................ 3-2
Voice Recognition ........................................... 4-1
Voice Recognition
Index ................................................................ 1
M
...................................... 4-2

Advertisement

loading

Related Manuals for Cadillac DTS 2008

Summary of Contents for Cadillac DTS 2008

  • Page 1 2008 Cadillac DTS Navigation System Overview ............1-1 Voice Recognition ........... 4-1 Overview Voice Recognition ..........1-2 ........4-2 Features and Controls ........2-1 Index ..............1 Features and Controls ........ 2-2 Navigation Audio System ........ 3-1 Navigation Audio System...
  • Page 2 Dolby GENERAL MOTORS, GM, the GM Emblem, CADILLAC, ® Laboratories. Dolby and the double-D symbol the CADILLAC Crest & Wreath, and the name DTS ® are trademarks of Dolby Laboratories. are registered trademarks of General Motors Corporation.
  • Page 3 Canadian Owners Propriétaires Canadiens On peut obtenir un exemplaire de ce guide en français A French language copy of this manual can be auprès de concessionnaire ou à l’adresse suivante: obtained from your dealer/retailer or from: Helm Incorporated Helm, Incorporated P.O.
  • Page 4 NOTES...
  • Page 5 Section 1 Overview Overview ............1-2 Getting Started ..........1-4 Navigation System Overview ......1-2 Cleaning the Video Screen ......1-12...
  • Page 6 Overview Navigation System Overview Screen shown with Map Disc Inserted...
  • Page 7 A. Map DVD Slot. See “Installing the Map DVD” under K. FAV (Favorite) Key. See “Storing Preset Stations” Maps on page 2-4 for more information. under Navigation Audio System on page 3-2 for more information. B. FULL MAP Touch Screen Button. See “NAV” under “Hard Keys”...
  • Page 8 Getting Started S. AUDIO Key. See Navigation Audio System on page 3-2 for more information. Before you begin to operate the navigation system, read T. MENU Key. See Configure Menu on page 2-32 for this manual thoroughly to become familiar with it and more information.
  • Page 9 Keeping your mind on the drive is important for safe Entering a destination or alphanumeric text requires driving. See “Defensive Driving” in the Index of many steps, so you can only perform these operations your vehicle’s owner manual for more information. when the vehicle is in PARK (P).
  • Page 10 The system uses limited information, you must always evaluate whether following the system’s directions CAUTION: is safe and legal for the current conditions. Looking at the moving map on the navigation screen frequently or for too long while driving can cause a crash and you or others can be injured or killed.
  • Page 11 Storing Radio Station Presets When getting started you may set the navigation system to your preference or delete information you may To set preset radio stations, do the following: have entered using various options. To do so, reference the following topics. 1.
  • Page 12 Setting the Time Setting the Search Area To set the search area, do the following: To set the time, do the following: 1. If the radio is already on with a map disc inserted, 1. Press the clock touch screen button located in the skip to Step 5.
  • Page 13 Entering an Address 7. The City name category will automatically be selected for entry. Start entering the city name. If you are having trouble finding a city or a street name, If five or less names are available for the entered do the following: characters, a list will display.
  • Page 14 Entering a Point of Interest (POI) 9. Select the street name with the correct prefix from the list (Dr., Ln., St., etc.). To set a destination by entering a Point of Interest (POI), 10. Once a street has been selected, the numeric do the following: keyboard will display, allowing you to enter the 1.
  • Page 15 8. Select the Go screen button. A map screen, with 5. Press the DEST hard key. the destination marked, will appear. Enter a destination. See Destination on page 2-14 for more information on how to enter a destination. 9. Select the route preference (Fastest, Shortest, or Other).
  • Page 16 Using Your Stored Preset Destinations Canceling Guidance Guidance will be canceled once you arrive at your final These destinations are available for selection while destination. To cancel guidance prior to arrival at the driving. final destination, do the following: 1. If the radio is already on with a map disc inserted, 1.

  • Page 17: Table Of Contents

    Section 2 Features and Controls Features and Controls ........2-2 Global Positioning System (GPS) ....2-39 Using the Navigation System ......2-2 Vehicle Positioning ........2-40 Maps ............2-4 Problems with Route Guidance .......2-41 Symbols ............2-8 If the System Needs Service ......2-41 Destination ..........2-14 Ordering Map DVDs ........2-42 Configure Menu ..........2-32 Database Coverage Explanations ....2-42...

  • Page 18: Features And Controls

    Features and Controls (CD/DVD Eject): Press the eject button to eject CDs or DVDs. See CD Player on page 3-12 and DVD Player on page 3-18 for more information. Using the Navigation System NAV (Navigation): Press this key to view your vehicle’s This section presents basic information needed to current position on the map screen.
  • Page 19 MENU: Press this key to adjust features for sound, A-Y (Accent Alphabet): Select this screen button to radio, navigation, and the display. See Configure Menu select letters with accent symbols. This button may on page 2-32 for more information. toggle to A-Z. ¨...

  • Page 20: Maps

    Maps Limited Guidance Areas Any area that is not classified as detailed is a limited This section includes basic information needed to know guidance area. Limited guidance streets will be about the map database. displayed on the map display but route guidance The maps are stored on a DVD.
  • Page 21 Installing the DVD Map Disc When a DVD Map Disc is installed, noise from the disc may occur when entering the vehicle and turning the vehicle off, this is normal system operation. Your dealer/retailer may have installed the map DVD. If the map DVD was not installed, do the following to load it: Read the following steps completely before operating...
  • Page 22 DVD Map Disc Messages 3. Touch the Change screen button. The screen will tilt, exposing the map DVD slot and the map DVD If Disc Read Error appears on the display and/or the will eject. Pull the disc out. map disc comes out, it could be for one of the following 4.
  • Page 23 Map Adjustments Move your finger in any direction on the map screen and the map will continue to scroll in that direction until The system allows you to adjust the scale of view on you remove your finger. the map. Also, as you drive, the map will scroll If scrolling while your vehicle is in PARK (P), the system automatically based on the direction of travel.

  • Page 24: Symbols

    Symbols The waypoint symbol will display on the map after a waypoint has been The following symbols are the most common symbols added to your route. that will appear on a map screen. Your vehicle is shown as this symbol. It indicates the current position and heading direction of your The waypoint symbol will be numbered from one...
  • Page 25 The distance and time to The north up symbol destination symbol indicates the map with indicates the distance and North Up, known as the estimated time North Up mode. remaining to your final destination or arrival time, depending on the option selected.
  • Page 26 Displaying Points of Interest (POI) on the The No GPS symbol will appear when your vehicle Map Screen is not receiving a Global Positioning System (GPS) Touch anywhere on the satellite signal. map to display the POI (Point of Interest) screen button.
  • Page 27 Select one of the POI categories to display or to delete POI Close to: Once a category has been selected, POI icons from the map screen. Once a category select this screen button to display the list of available has been selected, the POI icon will display at the top POIs for the selected POI categories.
  • Page 28 Go: Press this screen button, next to the desired POI, List all Categories: Select this screen button to list all to make this POI a destination or a waypoint. POIs sorted alphabetically. Select a POI name to receive information about the Clear: To delete a category, do one of the following: POI.
  • Page 29 Driving on a Route When a destination has been routed and you are driving on route, the map screen will automatically display the next maneuver. This next maneuver pop-up will display the next maneuver direction and how many miles or kilometers you are from it.

  • Page 30: Destination

    Traveling Across Regions Destination If you plan to drive across many states, you may have Press the DEST key to access the Destination Entry to change the region selected to represent the area screen. From this screen, you can select from several you are traveling to.
  • Page 31 Search Area Touch the Change Search Area screen button to view the Search Area screen. Touch the numbered The Destination Entry screen allows you to select the screen button to the left of the search area map area included in the search for your destination. A map that corresponds with the numbered region and to that divides the 48 contiguous United States and a view a list of states included in the region selected.
  • Page 32 To enter a destination, choose from one of the following destination entry methods: Address Entry Address Entry: The address entry destination method allows you to enter an address by providing the system with a city name or a street name. If you are having trouble finding a city or a street name, do the following: •...
  • Page 33 4. Enter the city name or touch the Last 5 Cities 6. Select the street name with the correct prefix screen button. (Dr., Ln, St., etc.) from the list. The Last 5 Cities screen will display a list of the last 7.
  • Page 34 To enter a destination by entering the street name first, 6. Once a city has been selected, the numeric do the following: keyboard will display, allowing you to enter the house number. The system will display the 1. Press the DEST hard key. house number range that is available for the street.
  • Page 35 To enter a destination by entering a cross street, 6. Select the street name with the correct prefix from do the following: the list (Dr., Ln., St., etc.). An Information screen will automatically display. 1. Press the DEST hard key. 7.
  • Page 36 Point of Interest (POI) To use the point of interest destination entry method by entering the name, do the following: The Point of Interest (POI) destination entry method 1. Press the DEST hard key. allows you to select a destination from the POI list. 2.
  • Page 37 To use the point of interest destination entry method by 5. Select the Go screen button next to the POI. selecting a category, do the following: The map screen, with the destination marked, will display. 1. Press the DEST hard key. 6.
  • Page 38 Previous Destination To use the previous destination entry method, do the following: The previous destination entry method allows you to 1. Press the DEST hard key. select a destination from a list of previous destination points. 2. Select the Previous Destination screen button. 3.
  • Page 39 Address Book To use the address book entry method, do the following: 1. Press the DEST hard key. The address book entry method allows you to select a destination by selecting an address that has been 2. Select the Address Book screen button. stored in your address book.
  • Page 40 Pick from Map 3. Use the (zoom in/out) screen buttons and touch on the map to find the area that you would This destination entry method allows you to select a like to select as your destination. destination by scrolling on the map. Pressing/holding and dragging your finger on the map will activate fast scrolling.
  • Page 41 Map Coordinates 3. Select the Map Coordinates screen button. 4. Touch N (north) or S (south) next to Lat. (latitude) The coordinates destination entry method allows you to to enter the direction of the latitude coordinate. select a destination by entering latitude and longitude Enter the numeric portion of the latitude coordinate.
  • Page 42 Preset Destination To use the preset destination entry method, do the following: The preset destination entry method allows you to set a 1. Press the DEST hard key. destination by selecting from one of five previously stored destinations. Besides voice tagged destinations, 2.
  • Page 43 Getting Started on Your Route Turn List Once you have entered a destination there are several Turn List: Touch this screen button to view the list of functions that can be performed. Press the DEST turn maneuvers for the entire route and to avoid turns on hard key to access the Route screen.
  • Page 44 Avoid List: Select this screen button to cancel an (Pause): Select this screen button to pause the avoided turn. The list of selected avoided turns will route preview, while in reverse or fast forward scroll. display. Select the turn to cancel the turn from being avoided.
  • Page 45 Add Waypoint To add a waypoint: 1. Press the DEST hard key. 2. Select the Add Waypoint screen button. This button will only appear if a route has been calculated. 3. Using the desired method of entering a destination, enter the waypoint. See “Destination” previously for more information.
  • Page 46 Adding Destinations to the To delete a waypoint from your current route: 1. Press the DEST hard key. Address Book 2. Select the Delete screen button for the desired There are two ways to add a destination to the waypoint to delete. address book: 3.
  • Page 47 Adding or Changing Preset To store an address book entry as a preset destination: Destinations 1. Select the MENU hard key. 2. Select the Nav screen button or press the MENU This feature allows you to add or change one of five key until the Nav screen button is selected or preset destinations.
  • Page 48 Configure Menu Sound Press the MENU key to enter the Menu options, then press the MENU key repeatedly until Sound is selected or touch the Sound screen button to make speaker and equalization or DSP (Digital Signal Processing) adjustments. See Navigation Audio System on page 3-2 for more information.
  • Page 49 Voice Prompt Volume: Touch the + (plus) or − (minus) Nav (Navigation) screen buttons to increase or to decrease the volume of the voice prompts. Turn voice turn instruction: Touch the ON or OFF screen buttons to turn voice instructions on and off while traveling on a planned route.
  • Page 50 Edit Address Book — How to Add To add an address to the address book, see “Adding Destinations to the Address Book” under Destination on page 2-14. Edit Address Book — Edit/View To edit the name of an address book: 1.
  • Page 51 5. Touch the Phone # screen button and use the To delete an address book entry: numeric keyboard to input or change the phone 1. Select the MENU hard key. number. 2. Select the NAV screen button. 6. Touch the OK screen button to save your changes. 3.
  • Page 52 Map Database Information A. Map DVD Slot Touch the Map Database Information screen button to change the map DVD and to view the coverage areas of Once the map DVD is loaded touch the Close screen the map DVD. button. The screen will close. Once the screen is closed touch the OK screen button Change: Touch this screen button to eject or change to proceed to the navigation system.
  • Page 53 Display Coverage: Touch this screen button to view the areas covered by the map DVD. Press the MENU key to enter the Menu options, then Touch the up and down arrow screen buttons to view press the MENU key repeatedly until Display is selected each region of the map DVD.
  • Page 54 Brightness/Contrast/Mode Auto (Automatic): Touch this screen button for the system to automatically adjust the screen background depending on exterior lighting conditions. Night: Touch this screen button and the system will make the map background darker. Day: Touch this screen button and the system will make the map background brighter.
  • Page 55 Global Positioning System (GPS) This system may not be available or interferences may occur if any of the following are true: The navigation system determines the position of your • Signals are obstructed by tall buildings, trees, large vehicle by using satellite signals, various vehicle signals, trucks, or a tunnel.
  • Page 56 Vehicle Positioning • The vehicle is entering and/or exiting a parking lot, garage, or a lot with a roof. At times, the position of the vehicle on the map may be • The GPS signal is not received. inaccurate due to one or more of the following reasons: •...
  • Page 57 Problems with Route Guidance • The route prohibits the entry of a vehicle due to a regulation by time or season or any other regulation Inappropriate route guidance may occur under one or which may be given. more of the following conditions: •...
  • Page 58 Ordering Map DVDs After receiving the updated disc, replace the old disc in the navigation system. See “Installing the DVD Map Disc” and “Ejecting the DVD Map Disc” under Maps on The map DVD in your vehicle is the most up-to-date page 2-4.
  • Page 59 Section 3 Navigation Audio System Navigation Audio System ........3-2 DVD Player ..........3-18 CD Player ...........3-12 Auxiliary Devices ..........3-24...
  • Page 60 Navigation Audio System Playing the Radio Notice: Before adding any sound equipment to (Power/Volume): Press this knob to turn the audio your vehicle, such as an audio system, CD player, system on and off. Turn the knob to increase or to CB radio, mobile telephone, or two-way radio, decrease the volume.
  • Page 61 Finding a Station FM source shown, other sources similar FM source shown, other sources similar If you do not want to view a split screen or you are If viewing a map screen, touch the source screen not on a map screen, press the AUDIO hard key. (AM, FM, XM, CD, etc.) button.
  • Page 62 XM lists will also contain a category to select and the stations or channels that pertain to the category. For XM, touch the left and right arrow screen buttons to change categories. The station information will appear on the display. See “Radio Menu” later in this section to add and remove XM categories from the category list.
  • Page 63 Storing Preset Stations Sound Menu This feature allows you to store up to 30 preset stations. You can mix AM, FM, and XM (if equipped). To store presets, do the following: 1. Press the (power) knob to turn the system on. 2.
  • Page 64 Setting the Tone Automatic Equalization If the system has automatic equalization, you can select TREBLE: Touch the plus (+) or minus (−) sign to customized equalization settings designed for Talk, increase or decrease the treble. If a station is weak or Rock, Country, Pop, and Classical.
  • Page 65 Radio Menu Select from the following DSP settings: Normal: Select this screen button to adjust the audio to be in normal mode. This provides the best sound quality or all seating positions. ® Surround (Centerpoint ): Select this screen button to ®...
  • Page 66 Additional Information Displayed Number of Preset Pages The navigation system may have this feature. Touch the Number of Preset Pages screen button to change the number of preset pages, 1 through 6. Touch the Additional Information Displayed screen Each preset page can contain five preset stations. button to turn station, channel, CD, and MP3 information Touch the desired numbered screen button.
  • Page 67 ® ® Automatic Volume Control or Bose AudioPilot : If the system has the Bose audio ® ® system, it includes Bose AudioPilot noise AudioPilot compensation technology. > Automatic Volume Control: With automatic volume ® To use AudioPilot control, your audio system adjusts automatically to 1.
  • Page 68 Radio Data System (RDS) XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the The audio system has a Radio Data System (RDS). 48 contiguous United States and Canada. XM™ offers a RDS features are available for use only on FM stations large variety of coast-to-coast channels including music, that broadcast RDS information.
  • Page 69 No XM signal: The vehicle is in a location that is No Information: No text or informational messages blocking the XM™ signal. When the vehicle is moved are available. The system is working properly. into an open area, the signal should return. XM Theftlocked: The XM™...
  • Page 70 CD Player the bottom surface of the CD. If the surface of the CD is damaged, such as cracked, broken, or scratched, The player can be used for CD, MP3, DVD audio, and the CD will not play properly. If the surface of the CD as a DVD video player.
  • Page 71 Playing an Audio CD (Rewind): Touch and hold this button to rewind quickly through a track selection. You will hear sound at a reduced volume. Touch this button again to stop rewinding. The display will show the elapsed time of the track.
  • Page 72 Using an MP3 CD • It is recommended that there is a maximum of 192 files on a disc. MP3 Format • The files can be recorded on a CD-R or CD-RW with There are guidelines that must be met, when creating a maximum capacity of 700MB.
  • Page 73 No Folder File System and Naming When the CD contains only compressed files, the files The song name that will display will be the song name will be located under the root folder. The next and that is contained in the ID3 tag. If the song name is previous folder functions will have no function on a not present in the ID3 tag, then the radio will display the CD that was recorded without folders or playlists.
  • Page 74 Playing an MP3 the CD will not play properly. If the surface of the CD is soiled, see “Care of Your CDs” in the Index of your With the ignition on, insert a CD partway into the slot, vehicle’s owner manual. label side up.
  • Page 75 (Folder): Select the left or right arrow to go to the previous or next folder on the disc. Press the middle screen button, with the folder name, to sort the MP3 by folder and file name. It may take a few minutes for the system to sort the MP3.
  • Page 76 CD Messages DVD Player If Disc Read Error appears on the display and/or the CD The player can be used for CD, MP3, DVD audio, and comes out, it could be for one of the following reasons: as a DVD video player. •...
  • Page 77 Playing a DVD and/or difficulty in loading and ejecting. If these problems occur, check the bottom surface of the DVD. If the There are three ways to play a DVD: surface of the DVD is damaged, such as cracked, broken, or scratched, the DVD will not play properly. •...
  • Page 78 DVD Menu Options Full: Press this screen button to remove all menu options from the display. Press anywhere on the screen Once a DVD starts to play, the menu options will to display the menu options. automatically appear. To display the menu choices while Cursor: Touch this button to access the cursor menu.
  • Page 79 Random: Touch this screen button to hear the disc Search: Touch this button to display the title search played in random, rather than sequential, order. Touch screen. The keyboard allows you to type in the title Random again to turn off random play. This button number of the title that you would like to watch.
  • Page 80 Day: Touch this screen button and the system will make the navigation screen background brighten. Monitor: From the DVD Setup screen, touch this button to adjust the viewing angle of the DVD on the navigation screen. This is not available on all DVDs. Touch the button to close the screen in from the left and right sides.
  • Page 81 When the parental level screen is first entered a Angle: Touch this button to adjust the viewing angle of keyboard will appear on the display and a four-digit the DVD. Repeatedly press this button to toggle through password will need to be created. Type in a password the angles.
  • Page 82 DVD Messages Auxiliary Devices If Disc Read Error appears on the display and/or the The navigation system has an auxiliary input jack DVD comes out, it could be for one of the following located in the lower right corner of the faceplate. This is reasons: not an audio output;...
  • Page 83 Section 4 Voice Recognition Voice Recognition ..........4-2...
  • Page 84 Voice Recognition Helpful Hints for Stating Commands • When a multiple command is available, choose the The navigation system’s voice recognition allows for command that best works for you. hands-free operation of the navigation system, • ® audio system, and OnStar features.
  • Page 85 • Voice Tag Commands If you experience difficulty with the system recognizing a command, try saying it more softly, and The following are voice tag commands you can access wait for a few seconds after the beep, or you may just by clearly stating the commands exactly as they are try saying it again.
  • Page 86 Storing Voice Tags Radio Commands From the address book entry information page, press The following are radio commands you can access by the Add Voice tag screen button. The system will clearly stating the commands exactly as they are written. respond “Name Please?”.
  • Page 87 CD Commands Auxiliary Commands The following are CD, MP3, and DVD commands that The following auxiliary commands can be accessed by can be accessed by clearly stating the commands clearly stating the commands exactly as they are exactly as they are written. written.
  • Page 88 NOTES...
  • Page 89 Adding Destinations to the Address Book ... 2-30 Database Coverage Explanations ...... 2-42 Adding or Changing Preset Destinations ..... 2-31 Deleting Personal Information ......1-7 Alpha-Numeric Keyboard ........2-3 Destination ............. 2-14 Audio System ..........3-2 Detailed Areas ..........2-4 Auto Reroute ..........
  • Page 90 Finding a Station ..........3-3 Language — English/Metric ........ 1-7 Limited Guidance Areas ........2-4 Getting Started, Navigation ........ 1-4 Getting Started on Your Route ......2-27 Map Adjustments ..........2-7 Global Positioning System (GPS) ...... 2-39 Map Scales ............. 2-7 Guidance Volume ...........
  • Page 91 Ordering Scrolling the Map ..........2-7 Map DVDs ..........2-42 Setting the Search Area, Entering an Address Overview, Navigation System ......1-2 and Point of Interest, and Storing Preset Destinations ..........1-8 Owners, Canadian ..........iii Setting the Time ........1-8, 2-38 Sound ............
  • Page 92 Voice Recognition ..........4-2 Voice Recognition Commands ......4-3 Using an MP3 CD .......... 3-14 Using Your Stored Preset Destinations ....1-12 XM™ Satellite Radio Service ......3-10 Vehicle Positioning .......... 2-40 Video Screen, Cleaning ........1-12...
