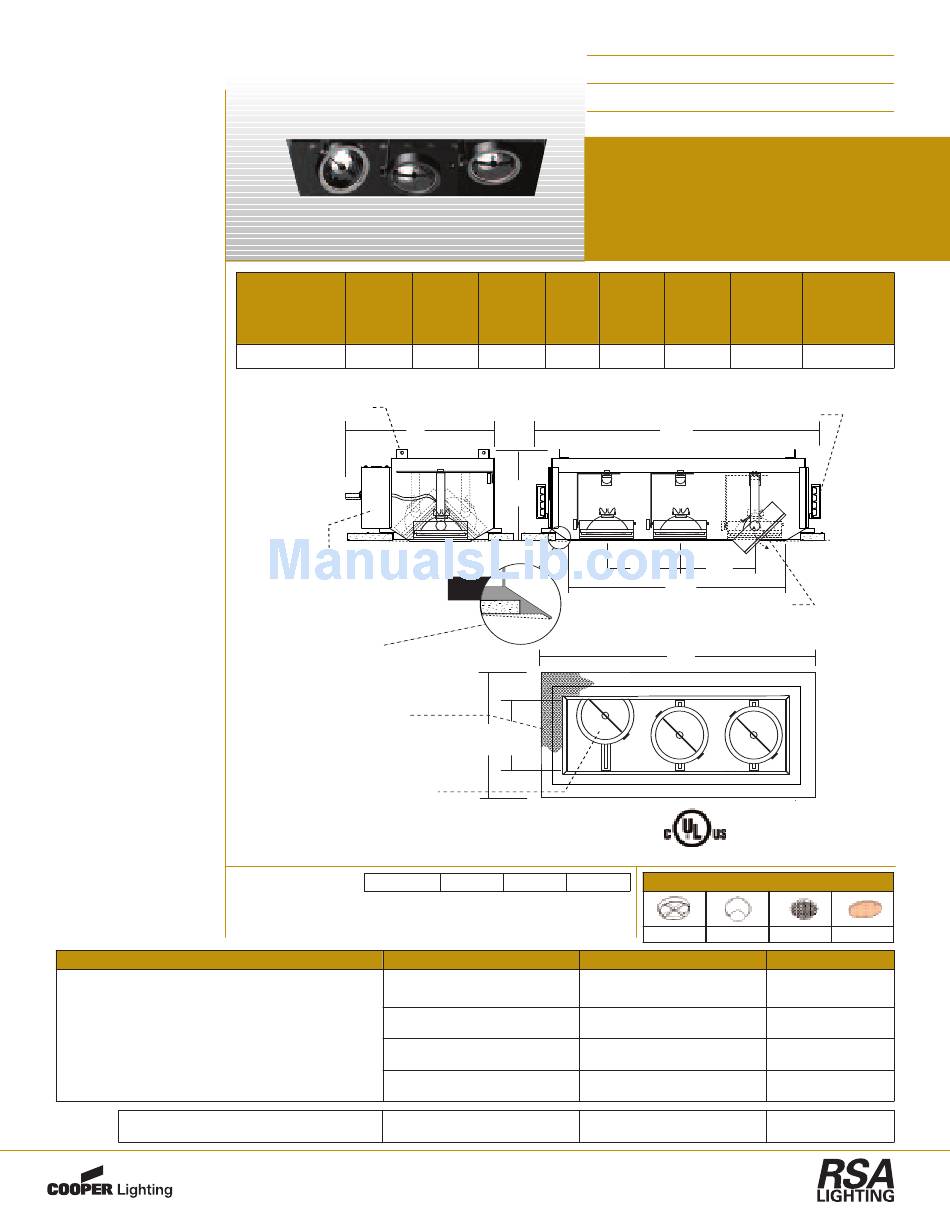

RSA Lighting Combolight LV1100 Specifications

RECESSED AR111
LV TRIMLESS
DESCRIPTION:
An adjustable AR111 fixture suit-
able for multiple downlighting
applications with one point of
electrical entry. Powder coat fin-
ish on housing & lamp assembly.
Housing suitable for new con-
struction applications.
CONSTRUCTION:
All aluminum construction.
Perforated mesh plaster frame
adheres to ceiling compound for
seamless trimless mounting.
Beveled fixture opening provides
easy mudding compound applica-
tion. Can accommodate 0.50" or
0.625" drywall. Includes butterfly
brackets for black iron commer-
cial mounting.
LAMP ASSEMBLY:
3 - AR111 lamps mounted in
adjustable bezels. Each lamp can
accept up to two optical acces-
sories. 380º x 45º locking adjust-
ment. Fixture provides 45º visual
cut-off. Lamp holders retract for
added internal adjustment.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in hous-
ing provide cooler operation
ELECTRICAL:
Integral electronic transformer.
Secondary lead is 11.5V. Primary
lead is 120V. Dimmable. Junction
box is UL listed for through branch
wiring, (access above ceiling not
required) for 8 #12, 90°C supply
conductors or 60°C for end of run.
Fused and short circuit protection.
Transformers and electrical
accessible through ceiling open-
ing via access door on housing
sidewall.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Cat. # / Description
LV1100 : 3 Light Recessed Next Generation Trimless
Combo Fixture
12V AR111
SPECIFY -
A
Dimensions
Housing
Length
27.77"
Tabs for aircraft
cable suspension
above ceiling
Side mounted compartment
houses wiring, electronic
transformers and thermal
protector. Accessible through
fixture opening.
Ceiling mudding
compound is applied
directly to the edge
of the aperture.
Perforated mesh plaster
frame adheres to ceiling
compound for seamless
trimless mounting.
Beveled housing interior and
standard retractable yokes allow
lamp holders to slide within the
housing for added adjustability.
LV1100
ORDERING EXAMPLE:
= Three Light Trimless Recessed AR111 - White Interior - 50 watt lamps -
120 Volt
Interior Finish
BK - Black
WH - White
S - Silver
PT - Custom (Specify)
LV1100
___
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Type
Project
B C D
Housing Aperture Aperture
Height Length Width
8.40" 22.00" 7.00"
G
B
Trimless
Detail
E D
WH 50 120
Lamp Wattage
35 - 35 Watt AR111
50 - 50 Watt AR111
75 - 75 Watt AR111
100 - 100 Watt AR111
___
COMBOLIGHT
®
THREE (3) Light Recessed
Next Generation Trimless
Multi-Lamp Luminaire
Low Voltage AR111
E F G
Plaster Frame Plaster Frame Above Ceiling
Width Length Width
12.75" 27.75" 14.95"
Butterfly Brackets
for Black Iron mounting
A
6.75" 6.75"
C
380º x 45º locking
angular adjustment
45º visual cut-off
F
Other Adders
CC - Two Circuit
CP - Chicago Plenum
Optional Accessories - Details on Other Side
Baffle Snoots Louvers
Voltage
120 - 120 Volt
277 - 277 Volt
___
LV Series
Ceiling
Cut-Out
25.25" x 10.25"
Lenses
(Standard)
