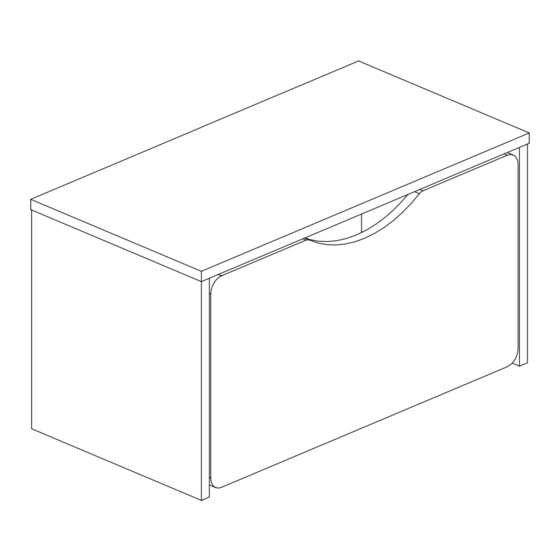

Tolga - Storage Box
Assembly Instructions
Dimensions
Width - 73,4cm
Depth - 38,2cm
Height - 40,2cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please visit: www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928
For any other queries please contact the Customer Helpline on: 0345 640 2020
- Please keep for future reference
20kg
483/8364 PINK
481/4113 BLUE
487/7741 OAK
Tip : To prevent damage,
we recommend that you
build your unit on the
carton(s) it was packed in.
483/8364
481/4113
487/7741
Issue 1 - 28/10/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Tolga 483/8364
Summary of Contents for Argos Tolga 483/8364
- Page 1 Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please visit: www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928...
-
Page 2: Handy Hints
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed or put weight on the product, the likelihood of on the following pages. - Page 3 Components - Panels For damaged or missing parts, please visit: www.argos-support.co.uk or email: Help@ClickSpares.co.uk Please check you have all the panels listed below Drawer Front 1 Top x 1 (688 x 370 x 18mm) (734 x 382 x 18mm) P4132...
-
Page 4: Tools Required
Components - Fittings For damaged or missing parts, please visit: www.argos-support.co.uk or email: Help@ClickSpares.co.uk Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. - Page 5 Assembly Instructions Step - 1 Screw 24mm locking Finished screw A into side 6. front edge Note: look carreful for the right postion. Note: Insert 24mm locking screw A as far as shown. Do not over tighten. Step - 2 Screw 24mm locking screw A into side 6.
- Page 6 Assembly Instructions Step - 4 Attaching panels Position both side 6 onto plinth 5 on both sides. Use a screwdriver to turn locking nuts clockwise to lock. Finished front edge Step - 5 Put drop of glue H into the 6 holes of top 2.
- Page 7 Assembly Instructions Step - 6 Attaching top Put drop of glue H into the 6 holes of side 6. Position the 6 dowels H of top 2 onto the 6 holes of side 6. Step - 7 Screw expando dowel B Screw expando dowel D into drawer back 3.
- Page 8 Assembly Instructions Step - 8 Screw expando dowel D into left drawer side 8. Finished Note: Insert expando front edge dowel D as far as shown. Do not over tighten. Insert large locking nuts B into left drawer side 8. Make sure the ‘arrow’...
- Page 9 Assembly Instructions Step - 11 Attaching drawer panels Put drop of glue H into the Finished 8 holes of drawer back 3. edge Position the 4 dowels F of drawer side 7 and 8 onto the holes of drawer back 3. Step - 12 Insert expando housing E into drawer base 4.
- Page 10 Assembly Instructions Step - 14 Attaching drawer panels Put drop of glue H into the 4 holes of drawer side 7 and 8. Position the 4 dowels F of drawer side 7 and 8 onto the holes of drawer back 3. Use a screwdriver to turn locking nuts clockwise to lock.
- Page 11 Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 03456 400 800...
- Page 12 Assembly Instructions...
