Anderson - Coffee Table

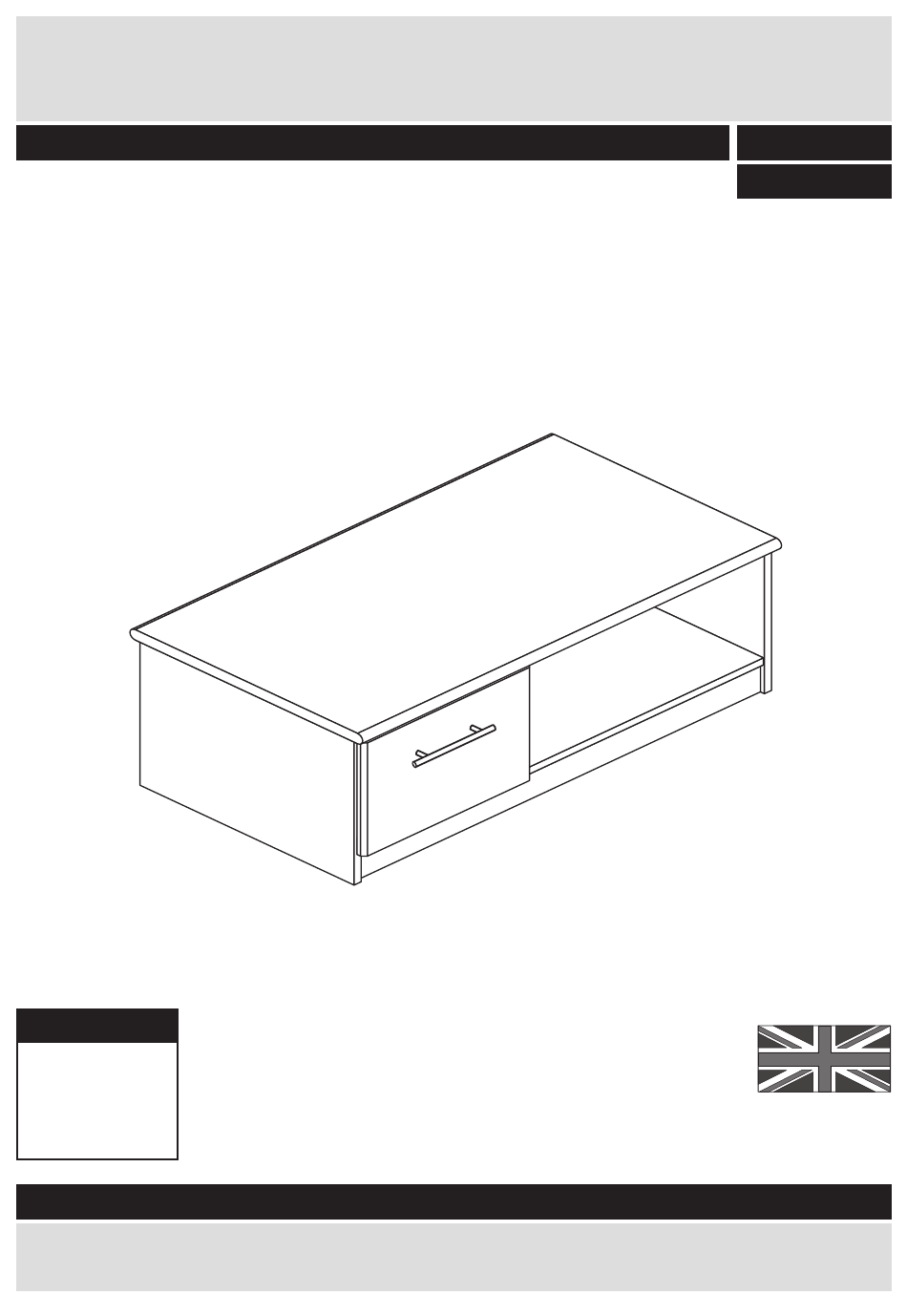

Assembly Instructions -

Dimensions

Width - 89.5cm

Depth - 50cm

Height - 33cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800

Please keep for future reference

290/8021

609/5442

MADE IN

BRITAIN

Issue 2 - 26/01/15

Need help?

Do you have a question about the Anderson Coffee Table 290/8021 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Anderson Coffee Table 290/8021

Page 1 Anderson - Coffee Table Assembly Instructions - 290/8021 Please keep for future reference 609/5442 Dimensions Width - 89.5cm Depth - 50cm MADE IN Height - 33cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 Issue 2 - 26/01/15...
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 19kgs. space to layout the parts before recommend the Please lift with care. starting.
Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side 2 Right Side Upright (D1516A) (D1517A) (D1519A) (306 x 444mm) (306 x 444mm) (230.5 x 438mm) Base...
Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 03456 400800 quoting the reference numbers below Step 1 Prepare the drawer front Screw 2 metal dowels into the holes shown on the back of the drawer front Note: Tighten metal dowels up fully against...
Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
Page 7 Assembly Instructions Step 7 Runners must be pushed up against the drawer front Fit runners to the drawers Turn the drawer assembly over. Fit the runner to the bottom edge of the left drawer side , as shown, making sure that it is pushed up against the back of the drawer front...
Page 8 Assembly Instructions Step 9 Finish preparing the left side Screw 4 metal dowels into the left side Insert 2 large locking nuts into the left side Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
Page 9 Assembly Instructions Step 11 Prepare the base Insert 4 large locking nuts into the base Step 12 Join the right side and base Push the base onto the right side Use a screwdriver to tighten the 2 large p l a locking nuts fitted to i n c...
Page 10 Assembly Instructions Step 13 Prepare the upright Fit the runner to the upright The 1st screw uses the 2nd hole in from the screw screw front of the runner. The 2nd screw uses the hole that lines up with the other panel hole. Gently tap the 2 mini blocks into the holes...
Page 11 Assembly Instructions Step 16 Prepare the back Tap 4 wooden dowels into the back Step 18 Fit the back Push the back onto the upright...
Page 12 Assembly Instructions Step 19 Fit the left side Push the left side onto the assembly. Use a screwdriver to tighten the 4 large locking nuts fitted to the base and the 2 plinths Carefully stand the unit up. Warning: The unit is heavy.
Page 13 Assembly Instructions Step 21 Fit the top Position the top onto the assembly so that the screws from the mini blocks fitted to the upright are lined up with the holes in the top Tighten the screws in the 2 mini blocks into the holes in the top Use a screwdriver to...
Page 14 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
Page 16 ALR2744...
