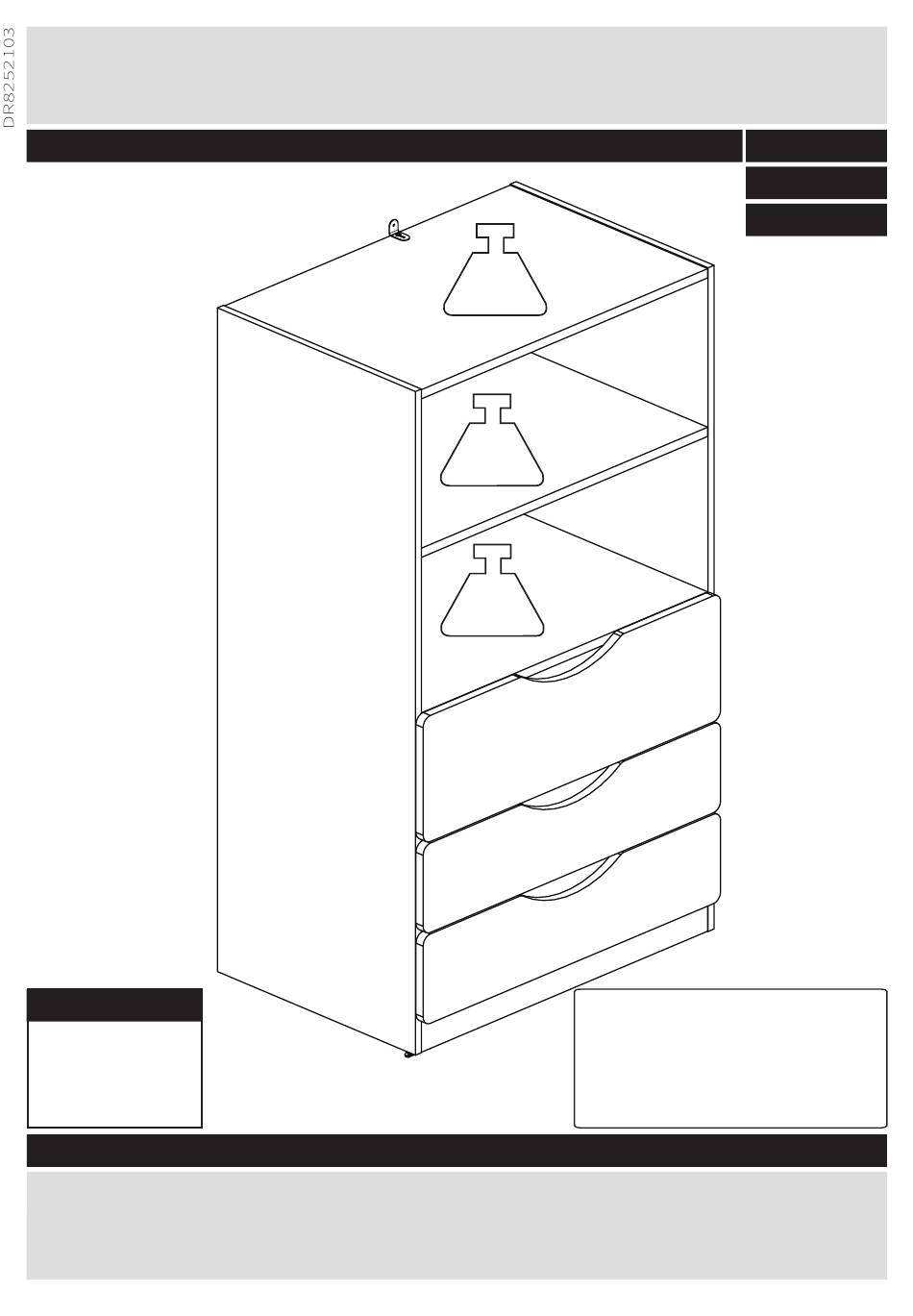

Page 1
Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please visit: www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928...
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed or put weight on the product, the likelihood of on the following pages.
Page 3
Components - Panels For damaged or missing parts, please visit: www.argos-support.co.uk or email: Help@ClickSpares.co.uk Please check you have all the panels listed below Left Side x 1 Right Side x 1 Back x 1 (1300 x 497 x 15mm) (1300 x 497 x 15mm) (1252 x 746 x 2.5mm)
Components - Fittings For damaged or missing parts, please visit: www.argos-support.co.uk or email: Help@ClickSpares.co.uk Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5
Assembly Instructions Step - 1 Insert large locking nuts C into plinth 7. Make sure the ‘arrow’ on locking nuts C points towards the hole in the edge of 7. Put drop of glue L into the 2 holes of plinth 7. Put dowels H into the holes of plinth 7.
Page 6
Assembly Instructions Step - 3 Attaching runners a: Fix runner leftpart A N on leftside 1 as shown usesing 10mm fixing screw drawer E into left side 1. Note: look carreful for the right postion. Screw 24mm locking Finished screw A into right side 1. front edge Note: Insert 24mm locking screw A as far as shown.
Page 7
Assembly Instructions Step - 5 Attaching panels Put drop of glue L into the 2 holes of left side 1 and right side 2 on the bottom of the sides. Position left side 1 and right side 2 onto plinth 7 and top / shelf 4.
Page 8
Assembly Instructions Step - 7 Preparing drawer Insert locking nuts B into left drawer side 9 and right drawer side !. Make sure the ‘arrow’ on locking nuts B points towards the hole in the edge of 9 and !. Put drop of glue L into the 3 holes of left drawer side 9 and right drawer side !.
Page 9
Assembly Instructions Step - 10 Turn over drawer. Fix runner left part B O on left drawer side 9 as shown using 12,5mm pozi screw D. Fix runner right part B Q on right drawer side ! as shown using 12,5mm pozi screw D.
Page 10
Assembly Instructions Step - 11 Preparing drawer Insert locking nuts B into left drawer side @ and right drawer side $. Make sure the ‘arrow’ on locking nuts B points towards the hole in the edge of @ and $. Put drop of glue L into the 3 holes of left drawer side @ and right drawer side $...
Page 11
Assembly Instructions Step - 14 Turn over drawer. Fix runner left part B O on left drawer side @ as shown using 12,5mm pozi screw D. Fix runner right part B Q on right drawer side $ as shown using 12,5mm pozi screw D.
Page 12
Assembly Instructions Step - 15 Inserting drawers as shown. Position L-bracket J on top 4 as shown, fix using screw F. Note: there is no pre-drilled hole for screw F. Use V to fix on the wall, please see last page for more information.
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
