Summary of Contents for Pentair STA-RITE DPC

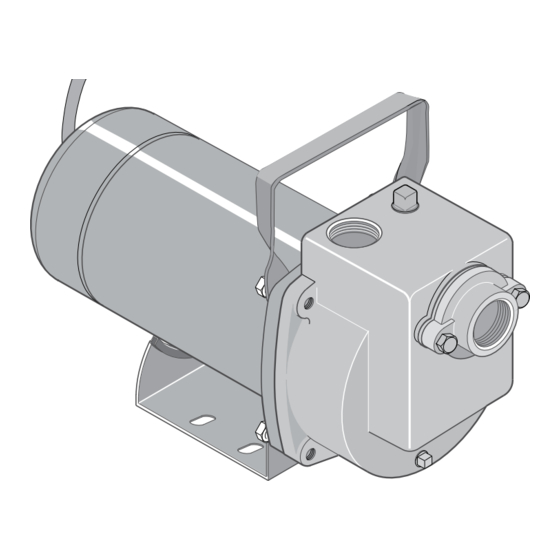

- Page 1 OWNER’S MANUAL Portable Utility Water Pump 1172 0794ASB 293 WRIGHT STREET, DELAVAN, WI 53115 WWW.STA-RITE.COM PH: 888-782-7483 S930 (04/01/14) © 2014 Pentair Ltd. All Rights Reserved.
-
Page 2: Important Safety Instructions
Safety Important Safety Instructions Electrical Safety The pump is supplied with a 3-conductor grounding SAVE THESE INSTRUCTIONS - This manual contains type cord. Connect only to a properly grounded, important instructions that should be followed during GFCI protected outlet. Do not lift the pump by the installation, operation, and maintenance of the product. -
Page 3: Limited Warranty
Warranty Retain Original Receipt For Your Records Limited Warranty STA-RITE warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period shown below. Product Warranty Period Water Systems Products —... -
Page 4: Installation
Installation Before You Install Your Pump 5. Start the pump; water should be produced in 10 minutes or less. The time will depend on the Pump clean water only with this pump. depth to water. If no water is produced within NOTICE: This unit is not designed for applications 10 minutes, stop the pump, release all the pressure, involving salt water or brine! Use with salt water or brine... - Page 5 Installation Piping damaging seal and possibly causing burns to persons handling pump. Fill pump with water before starting. Both the suction and discharge are tapped for 1-1/4” pipe. If you are using hose or plastic pipe for the suction Burn Hazard. NEVER run pump against closed discharge.
-
Page 6: Maintenance
Maintenance Draining Installation Of New Seal The pump and piping should always be protected against 1. Clean polished surface of ceramic seat with a freezing temperatures. If there is any danger of freezing, clean cloth. drain the pump and piping. To drain pump, remove the 2. -
Page 7: Troubleshooting
Troubleshooting Symptom Probable Cause(s) Corrective Action Make sure pump body is full of water. See priming Pump not properly primed. instructions. Check voltage at motor terminals and at meter when pump is Speed too low. operating. If low, refer to wiring instructions, or check with your Power Company. -
Page 8: Repair Parts
Repair Parts 1172 0511 Ref. Part Description Qty. Part Number Motor - 1/2 HP 115V/230V - 60 Hz. J218-582A-115-PKG Hex Capscrew - 3/8 - 16x1-1/2” † Water Slinger 17351-0009 Seal Plate Diffuser C3-120 Roll Pin 3/32 x 5/16” U30-522SS Gasket N20-35 Shaft Seal U109-6A...
