Summary of Contents for Bristan Bright BRG BAS C

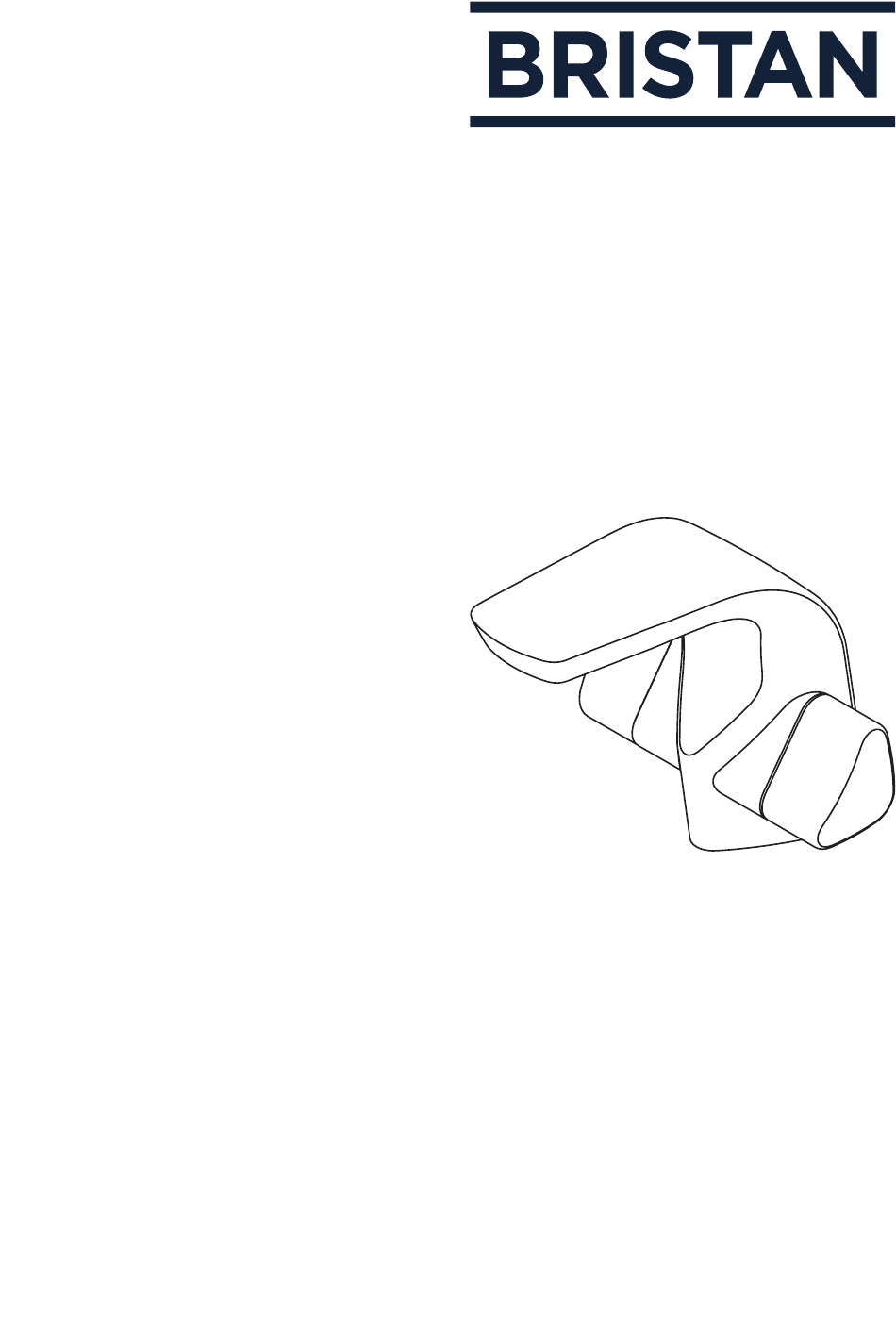

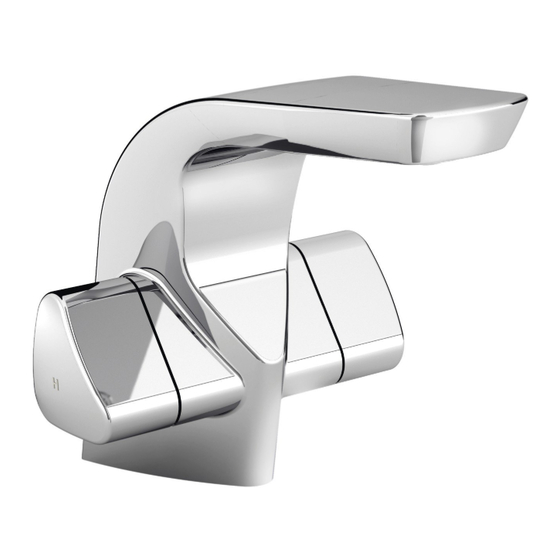

- Page 1 Installation Instructions Bright Tap Range Models covered: BRG BAS C, BRG BF C, BRG BSM C, BRG 1HBF C Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to contact us. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. •... -
Page 4: General Information
General Information This product has been tested to the Water Regulations Advisory Scheme (WRAS) and satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and current bylaws. For full Installation Requirements & Notes (IRN) please visit www.wras.co.uk/directory. Designed to comply with BS EN 200 for combination taps to be used within systems designed to BS 6700. -
Page 5: Specifications
Specifications Working pressure Product Code Inlet BRG BAS C M10 15mm Compression Flexible Tails BRG BF C 3/4" BSP Threaded Tail BRG BSM C 3/4" BSP Threaded Tail BRG 1HBF C M16 15mm Compression Flexible Tails Maximum static pressure- 10.0 bar System Requirements: Gravity fed hot &... -
Page 6: Dimensions
Dimensions Basin Mixer Basin Mixer 1 Hole Bath Filler Dimensions are approximate and in millimetres. Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisers. - Page 7 Dimensions Cont. Bath Shower Mixer Bath Shower Mixer Bath Filler Dimensions are approximate and in millimetres. Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisers.
-
Page 8: Installation Requirements
Installation Requirements Flexible Connecting Pipes Care must be taken when connecting the flexible connection pipes to the household pipework to ensure they do not bend sharply and kink or twist. See below for recommended ways to fit the flexible connecting pipes. Slight 90°... -
Page 9: Installation
Installation Basin Mixer / 1 Hole Bath Filler 1. Screw the flexi tails into the bottom of the body by hand only (DO NOT OVERTIGHTEN). 2. Feed the flexi tails through the hole in the basin/ bath ensuring the washer is fitted between the tap body and the fixing surface to ensure a water tight seal. -
Page 10: Bath Filler & Bath Shower Mixer
Installation Cont. Bath Filler and Bath Shower Mixer 1. Fit the bath filler / bath shower mixer to the bath ensuring that the washers are fitted between the body and the bath. 2. Secure the tap to the bath using the washers and metal backnuts Tighten the backnuts onto the threaded tails. -
Page 11: Maintenance
Maintenance General Cleaning Your product has a high quality finish and should be treated with care to preserve the visible surfaces. All surfaces will wear if not cleaned correctly, the only safe way to clean your mixer is to wipe with a soft damp cloth. -
Page 12: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or low Partially closed isolation valve. Open isolation valve. flow rate Instantaneous water heater Increase water flow rate or cycles on and off as flow rate or pressure through system to pressure is too low. meet required minimum working pressure of tap. -
Page 13: Guarantee
Guarantee At Bristan, we want to make things as easy as possible for our customers. That’s why we o er solid guarantees on all our products, e ective from the date of purchase, to give you peace of mind. To start your free guarantee simply scan the QR code and register your product. - Page 14 BRG BOOK 1 Part Number: Issue: D3 Bristan Group Ltd. UK: Bristan Group, B78 1SG. EU: Masco Europe S.à.r.l. 14 Rue Strachen 6933 Mensdorf Luxembourg Customer Service: +44330 026 6273 Web: www.bristan.com Email: enquire@bristan.com A Masco Company...
