Schischek ExRun Y Series Quick Start Manual

ExRun
Valve actuators with continuous control
Electrical, explosion proof linear actuators – 500 N to 10,000 N
24...240 VAC /DC, 5...60 mm adjustable stroke
ATEX tested in acc. with directive 94/9/ EC for zone 1, 2, 21, 22
Compact. Easy installation. Universal. Cost effective. Safe.
Type Force
ExRun- 5.10 - Y
0,5 kN / 1,0 kN
ExRun- 25.50 - Y 2,5 kN / 5,0 kN
ExRun- 75.100- Y 7,5 kN / 10,0 kN
ExRun- ... - CTS Types as above with aluminium housing and seawater resistant C5-M painting (exterior parts in stainless steel, cable glands brass nickel-plated)

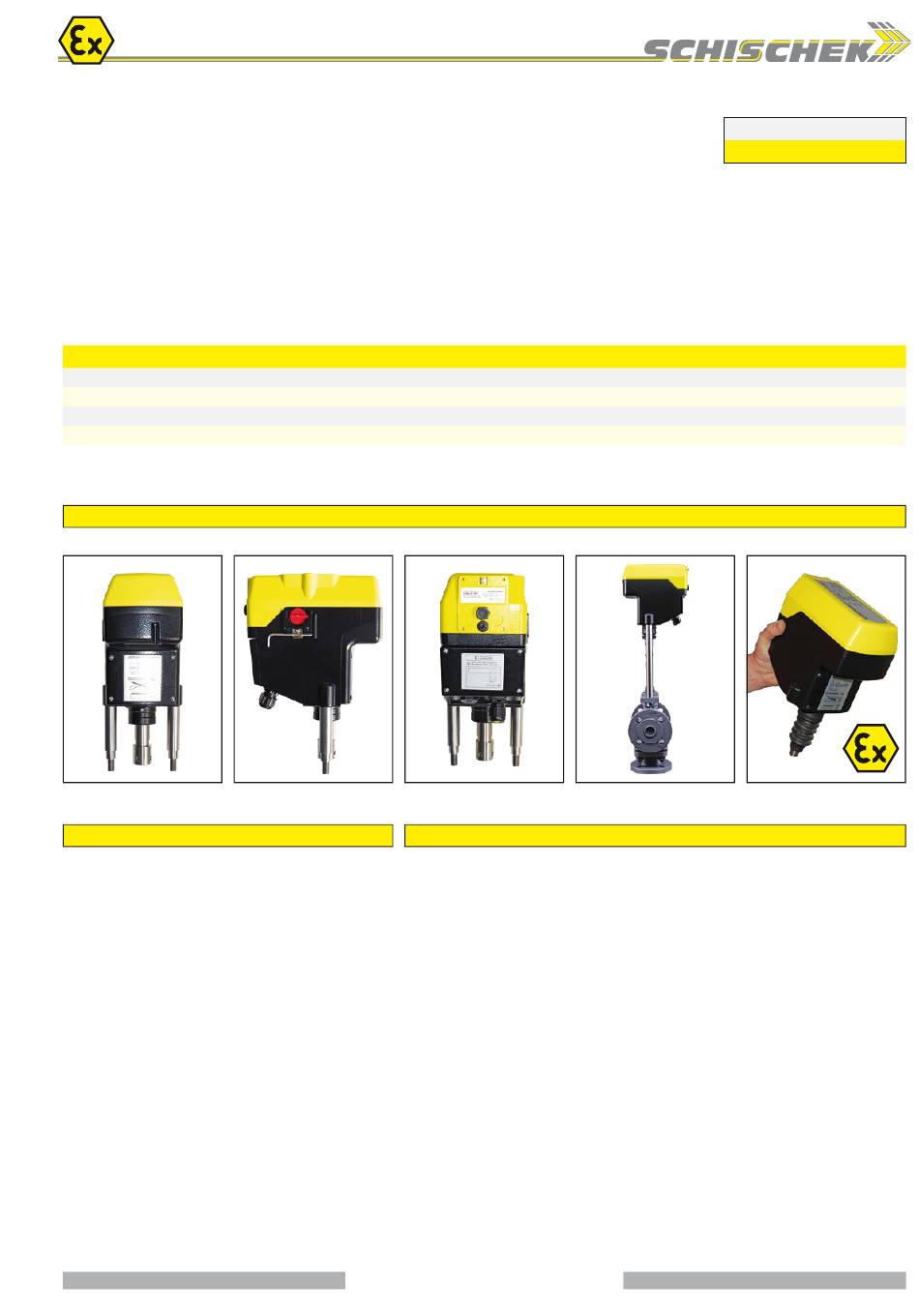

Product views and applications

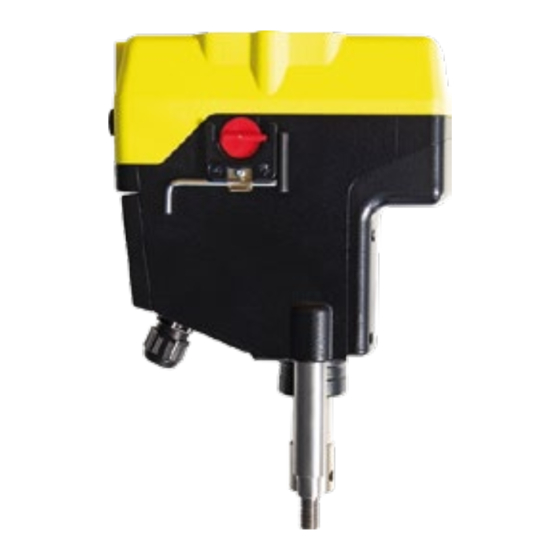

...Run Side view
Description
ExRun valve actuators are the new generation of electrical, explosion
proof adjustment and control valves and other motorized applications
for HVAC systems in chemical, pharmaceutical, industrial and
offshore/onshore plants, for use in Ex-areas zone 1, 2 (gas) and zone
21, 22 (dust).
Highest protection class and IP66 protection, compact dimensions, little
weight, universal functions and technical data and an integrated heater
guarantee safe operation even under difficult environmental conditions.
High quality brushless motors guarantee long life.
All actuators are programmable and adjustable on site. Special tools
or equipment are not required. Motor running times and forces, accord-
ing to the actuator type, are selectable or adjustable on site. The inte-
grated universal power supply is self adaptable to input voltages in the
range of 24...240 VAC/DC. The actuators are 100 % overload protected
and self locking.
The modular concept offers the possibility to mount adjustable end
switches for signalization.
Schischek GmbH Germany, Muehlsteig 45, Gewerbegebiet Sued 5, 90579 Langenzenn, Tel. +49 9101 9081-0, Fax +49 9101 9081-77, E-Mail info-de@schischek.com
Supply Motor running time
24...240 VAC/DC 2 / 3 / 6 / 9 / 12 s /mm
24...240 VAC/ DC 2 / 3 / 6 / 9 / 12 s/mm
24...240 VAC/ DC 4 / 6 / 9 / 12 / 15 s/mm
Back view with terminal box ...Run mounted on valve
Highlights
► For all type of gas, mixtures, vapours and dust for use in zone 1, 2, 21 and 22
► Universal supply unit from 24...240 VAC/DC
► Integrated junction box
► Motor running times 2 – 3–4 –6– 9 –12–15 s /mm, acc. to type
►Continuous control, feedback signals 0...10 VDC and 4...20 mA
► Reverse function
► Forces 500–1000–2500– 5000 –7500–10000 N, acc. to type
► Feedback gear unit, adjustable in steps 10 / 20 / 30 / 60 mm
► Mechanical stroke limitation, 5...60 mm stroke adjustable
► 100 % overload protected and self locking
► Compact design and small dimensions
► Robust aluminium housing (optional marine painting)
► IP66 protection
► Manual override included + preparation for comfortable manual override
► Weight ~ 7 kg
► Integral safety temperature sensor
► Status indication by LED
www.schischek.com
E X P L O S I O N P R O O F
ExRun - ... - Y
ExRun - ... - CTS
Control mode Feedback
0...10 VDC, 4...20 mA 0...10 VDC, 4...20 mA
0...10 VDC, 4...20 mA 0...10 VDC, 4...20 mA
0...10 VDC, 4...20 mA 0...10 VDC, 4...20 mA
Subject to change!
Wiring diagram
SB 1.0
SB 1.0
SB 1.0
Compact body
ExRun-S-Y_en
V01 – 17-Jan-2014
