AVProEdge AC-EXO-UNC-KIT Quick Start Manual

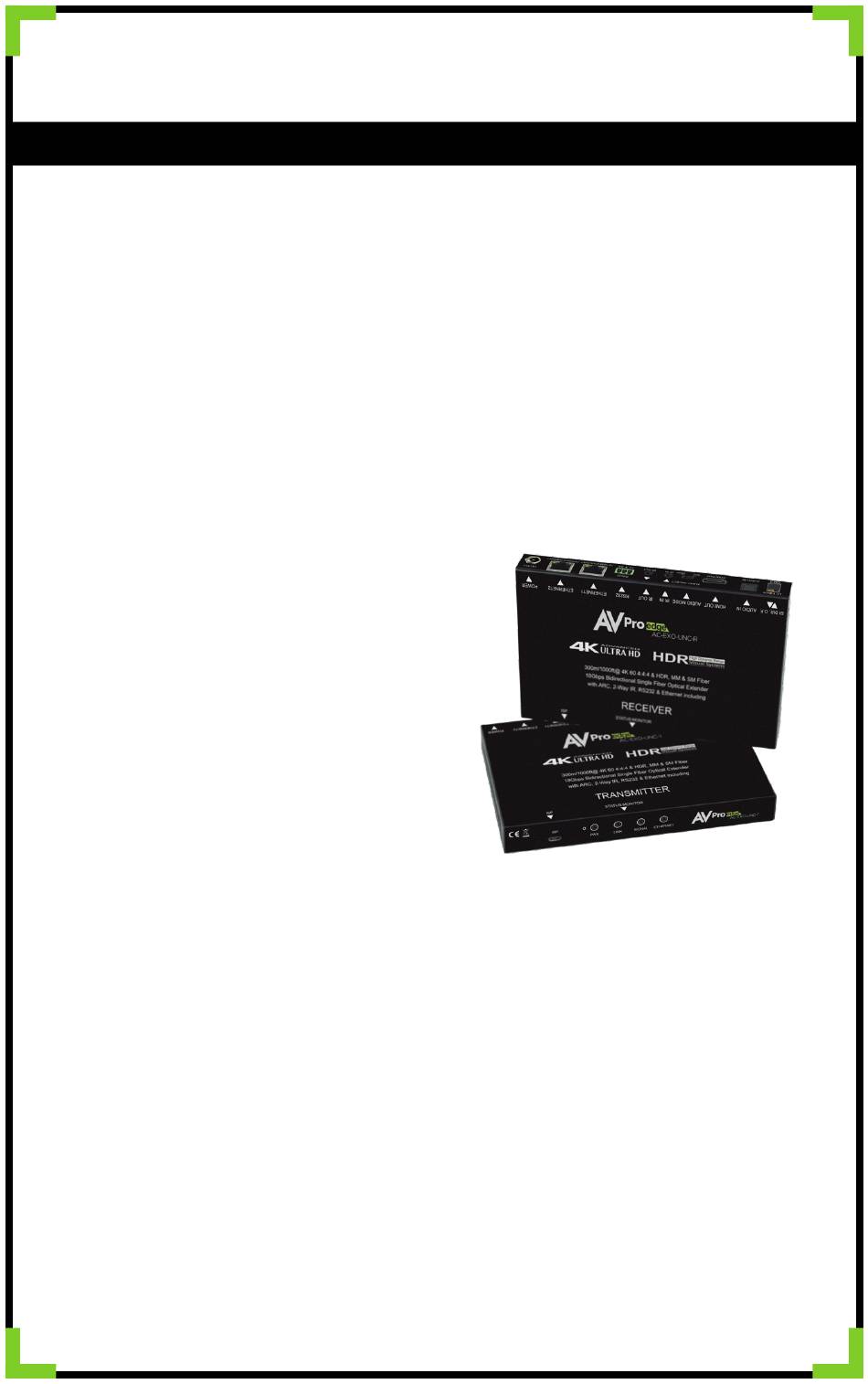

AC-EXO-UNC-KIT
4K HDMI Extender via Optical Fiber; up to 300 Meter.
Quick Start Guide
This is AVProEdge's flagship Fiber Optic Extender, allowing the user to extend an HDMI
signal up to 300 meters using single-mode or multi-mode fiber. It solves problems for
both commercial and residential markets for distributing high value 4K 18Gbps content
from rack to display. These extenders go the distance, no need to find power and cascade
extenders for ultra long runs. Additionally AC-EXO-UNC offers solutions for 18Gbps
distribution in residential, digital entertainment centers, retail stores, AV events that
require reliable and long distance distribution, suitable for Data Center, Control Rooms,
Conference Rooms, Schools and Corporate Training environment.
This quick start guide will be going
through:
•

Installation

•

FIber basics

• Transmitter and Receiver breakdown
• Rs-232 Configuration
• Ir Configuration
• Troubleshooting
Installation
1) Plug a HDMI cable from the source into the transmitter's hdmi input
2) Plug fiber from the transmitter's Single LC Fiber Input to the receiver's
Single LC Fiber Input
3) Plug a Hmdi cable from the receiver to the display
4) PLug in the provided power supply into the 12v power input.
Fiber Basics:
Fiber Cable Types
•Single-mode - Typically used for "long hauls" - Typically used for long distance buried cable. Single-
mode should be used in applications over 1000FT (300M).
•Multi-mode - Most common in pro/custom electronics. For shorter runs, up to 1000FT (300M). Multi-
mode is used in residential/commercial applications for on premise infrastructure.
LC (Lucent Connector) - Universal style, most common (used in networking). Can be terminatedin the
field, some connectors support more than one strain
. AC-EXO-UNCuses this connector type
