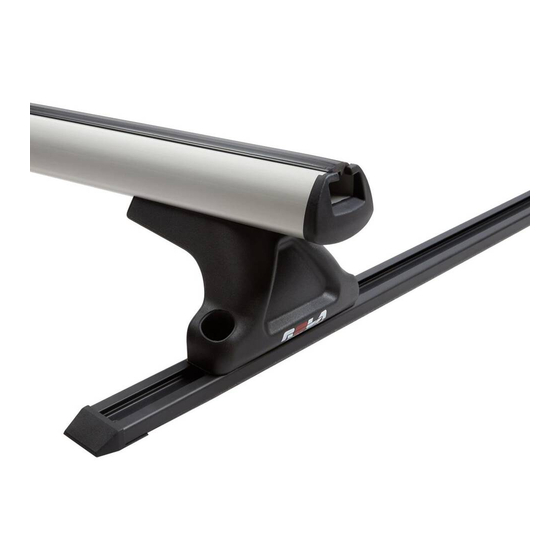

Rola CTM60-3 Assembly

Maximum carrying capacity for a 2 bar and 3 bar system is 75kg and 100kg respectively. Check vehicle owners manual to confirm that this
Note:
does not exceed maximum vehicle roof load. Always use the lower of the 2 values as your maximum load weight.
STEP 1 :
Aligning Tracks on Vehicle
A. Align tracks on the inner side of the roof
ditch mouldings. See Fig. 1a
B. Position tracks so that the front og the
Closed End Cap is aligned with the centre
of the B-Pillar. See Fig. 1b
STEP 2:
Marking and Drilling Holes.
A. Mark holes in Tracks onto vehicle roof using a felt tip pen.
B. Drill all marked holes u sing a 5mm drill bit and carefully remove drilling swarf.
The use of a drill stop is recommended as only the roof panel i s to be drilled.
Use caution as to not damage the interior roof lining.
NOTE: Ensure that all components are correctly positioned, as described within these Fitting Instructions,
before proceeding to drill holes - always double check.
C. Seal i n and around all holes with Butyl Mastic .
STEP 3 :
Riveting Tracks to Vehicle Roof
A. Remove the paper backing from Backing
Tape on the underside of all T racks.
B. Reposition Tracks in place on the vehicle roof
C. Fit End C aps at each end of Tracks
beneath Backing T ape (See Fig. 5a).
D. Rivet Tracks to vehicle roof using
Rivets supplied.
ROLA reserves the right to nullify any warranty
claim, or annul any costs incurred due to
additional work or use of extra parts, due to the
incorrect fitment of ROLA Roof Racks.
CTM60-3 / CTM60-3-B
TRACK RACK MOUNT ASSEMBLY

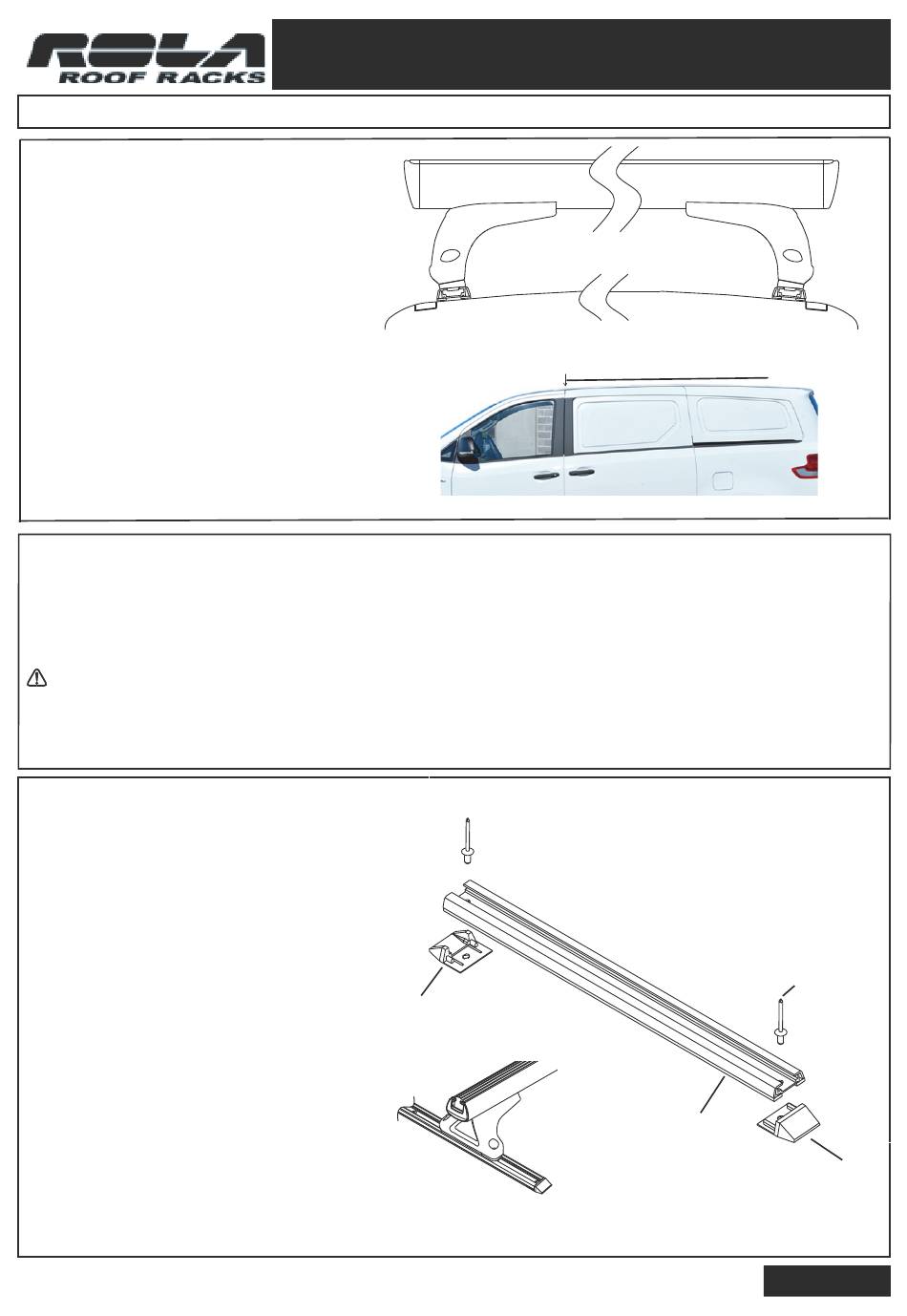

Fig. 1a
NOTE: For maximum roof strength fit tracks as
Fig. 1b
Fig. 3 a
Open End Cap
(Rear)
Fig. 3 b
www.rola.com.au
LDV G10
close as possible to roof ditch mouldings
Backing Tape
Completed
Roof Rac k
Assembly
.
Rivet
Closed End Cap
(Front)
CTM60-3
ISSUE: B
08/02/19
Sheet 1 o f 2
