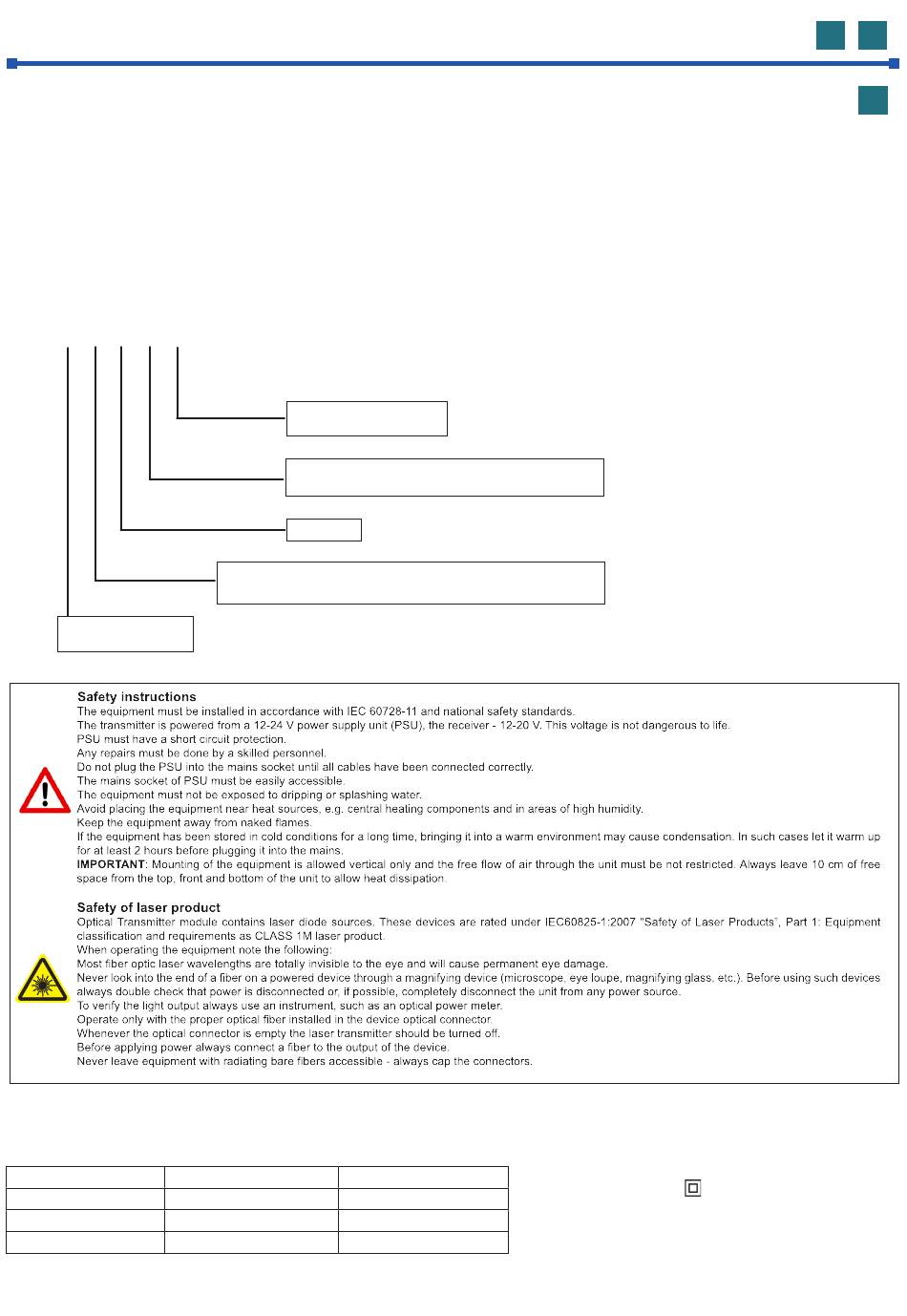

Optical transmitters OT401, OT501W
Optical receivers OR401, OR401M, OR501W, OR501MW
Product description
The optical transmitters series OT and the optical receivers series OR are intended to distribute SAT IF and DTT (Digital terrestrial TV) signals through a fibre optic.
Transmitters series OT4 convert 4 SAT IF sub-bands into an optical signal.
Transmitters series OT5 convert 4 SAT IF sub-bands and DTT band into an optical signals; for converting SAT and DTT bands separate lasers are used. To combine two
optical cariers into one single-mode fibre WDM diplexer is used.
AGC (automatic gain control) provides for automatically controlled constant RF level to the laser.
Receivers series OR4 convert optical signal into 4 SAT IF sub-bands.
Receivers series OR5 convert optical signals into 4 SAT IF sub-bands and DTT band; for converting SAT and DTT bands separate photodiodes and WDM diplexer are used.
OLC (optical level control) provides for fixed RF output level at different level of optical input.
Receivers with letter M (OR401M, OR501MW) have built-in multiswitch (quad outputs).
The product is intended for indoor usage only.
Coding explanation of receiver
OR
5
01
M W
OT - optical transmitter
OR - optical receiver
INSTALLATION
Requirements for external power supply unit
Output voltage range
Output current
Output connector
Vers. 1.03
W - Integrated WDM diplexer
(for 5 cable system).
M (only for receivers) - Multiswitch type output (quad).
01 – series
4 - 4 cable system (SAT IF signals H,Hi; V,Hi; H,Lo; V,Lo).
5 - 5 cable system (SAT IF signals H,Hi; V,Hi; H,Lo; V,Lo and DTT signals).
Transmitter
+12 V min ...+24 V max
> 1.5 A
pin (range 0.5...0.75 mm2)
Without letter M – quatro output.
Receiver
+12 V min ...+20 V max
> 0.5 A
type 3.5/1.35 EP (+) plug
1
• Short circuit protection
• Double insulated (marked
)
• Meet EN 55022 class B conducted emisions requirements,
measuring with grounded load
EN
RU
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OT401 and is the answer not in the manual?

Questions and answers

Summary of Contents for Terra OT401

  • Page 1 Optical transmitters OT401, OT501W Optical receivers OR401, OR401M, OR501W, OR501MW Product description The optical transmitters series OT and the optical receivers series OR are intended to distribute SAT IF and DTT (Digital terrestrial TV) signals through a fibre optic. Transmitters series OT4 convert 4 SAT IF sub-bands into an optical signal.
  • Page 2 SAT RF output level 80 dBµV Optical input level -15 -5 dBm over- high failure Power consumption load Optical transmitter OT401 aging H,Lo H,Hi V,Lo V,Hi 10-20V SAT RF input level 60-80 dBµV LNB powering total 350mA max...
  • Page 3 External view of the transmitter Figure 1. External view of the transmitter - +12...+24 V DC powering input. Screw terminal. - Switch for Terr.TV preamplifier powering ON/OFF. - Switch for selecting appropriate number of terrestrial transponders in your area. - LED indicator for Terrestrial RF input level (only for OT501W) red –...
  • Page 4 External view of the receiver without WDM diplexer (OR401, OR401M) OR401 . OPTICAL IN SAT - optical input. FC/APC socket. 2, 3, 4, 5 - RF outputs of SAT IF. F sockets. OR401 OR401M V,Lo Rec.1 H,Lo Rec.2 V,Hi Rec.3 H,Hi Rec.4 .
  • Page 5: General Notes

    OPERATING AND SETTINGS General notes Read the safety instruction first. All unused optical connectors must be covered with a clean protective caps. All unused F type connectors must be terminated with 75 Ω loads. SAT IF and DTT inputs on transmitter due to DC voltage must be terminated with 75 Ω...
  • Page 6: Technical Specifications

    Receiver with quad outputs (with letter M (OR501MW)) - typ. 75 dBµV. If the actual number of channels is not 8, set the switch on transmitter in appropriate position (see description with table above). Technical specifications Type OT401 OT501W Satellite inputs Number of inputs Bandwidth 950-1950 MHz (VLo, HLo);...
  • Page 7 Technical specifications Type OR401 OR401M OR501W OR501MW Optical input Optical wave lenght 1100 - 1650 nm* Optical input level (OLC range) -15...-5 dBm Optical return loss > 40 dB RF outputs Number of outputs Bandwidth 950...1950 MHz 950...2150 MHz 950...1950 MHz 47...790 MHz, VLo, HLo VLo, HLo...
  • Page 8: Application Diagrams

    32 receivers. coaxial cable fiber cable SGA25E12-W Optical splitter OT401 OT401 - optical tran smitter to the network OR401M - optical receiver with 4x4 multiswitch OR401 - optical receiver, virtual quatro MR532 - 5x32 multiswitch SGA25E12-W - power supply OR401...
  • Page 9 Оптические передатчики OT401, OT501W Оптические приемники OR401, OR401M, OR501W, OR501MW Описание изделий Оптические передатчики серии OT и оптические приемники серии OR предназначены для распределения сигналов ПЧ СТВ и DTT (цифрового наземного телевидения) по оптоволоконному кабелю. Передатчики серии OT4 преобразуют 4 сигнала ПЧ СТВ поддиапазона в оптический сигнал.
  • Page 10 SAT RF output level 80 dBµV Optical input level -15 -5 dBm over- high failure load Power consumption Optical transmitter OT401 aging V,Lo H,Lo H,Hi V,Hi 10-20V SAT RF input level 60-80 dBµV LNB powering total 350mA max...
  • Page 11 Внешний вид передатчика Рис. 1. Внешний вид передатчика - Напряжение питания +12...+24 V (винтовой разъем). - Переключатель для питания Terr.TV предусилителя ON/OFF. - Переключатель для выбора подходящего количества наземных транспондеров в вашем регионе. - Светодиодный индикатор для наземного РЧ входного уровня (только для OT501W) красный...
  • Page 12 Внешний вид приемника без WDM диплексера (OR401, OR401M) OR401 . OPTICAL IN SAT - оптический вход. Разъем типа FC/APC. 2, 3, 4, 5 - РЧ выходы ПЧ СТВ. Разъемы типа F. OR401 OR401M V,Lo Rec.1 H,Lo Rec.2 V,Hi Rec.3 H,Hi Rec.4 .
  • Page 13: Общие Замечания

    УПРАВЛЕНИЕ И НАСТРОЙКИ Общие замечания Прочитайте указания по соблюдению мер безопасности при выполнении работ по подключению устройства. Все неиспользуемые оптические разъемы должны быть закрыты чистыми защитными колпачками. Подключите нагрузку сопротивлением 75 Ω к неиспользуемым гнездам типа F радиочастотного выхода. ПЧ СТВ и DTT входы...
  • Page 14: Технические Характеристики

    Приемник с выходами quad (с буквой M (OR501MW)) - тип. 75 dBµV. Если фактическое количество каналов не равно 8, установите переключатель на передатчике в соответствующее положение (см. описание выше). Технические характеристики Тип OT401 OT501W Спутниковые входы Количество входов Ширина полосы...
  • Page 15 Технические характеристики Тип OR401 OR401M OR501W OR501MW Оптический вход Длина волны 1100 - 1650 nm* Входной уровень (OLC диапазон) -15...-5 dBm Возвратные потери > 40 dB РЧ выходы Количество выходов Ширина полосы 950...1950 MHz 950...2150 MHz 950...1950 MHz 47...790 MHz, VLo, HLo VLo, HLo 950...2150 MHz...
  • Page 16 коаксиальный кабель SGA25E12-W волоконно-оптический кабель Оптический делитель OT401 в распределительную сеть OT401 - оптический передатчик OR401M OR401 OR401M - оптический приемник с встроенным 4x4 мультисвичем MR532 OR401 - оптический приемник, virtual quatro MR532 - 5x32 мультисвич SGA25E12-W - источник питания...
  • Page 17 Гарантия 12 месяцев с даты продажи. Дата продажи: Серийный номер: М.П. Draugystes str. 22, LT-51256 Kaunas, Lithuania, tel.: +370 37 - 31 34 44, fax: +370 37 - 31 35 55 E-mail: sales@terraelectronics.com, http://www.terraelectronics.com...
