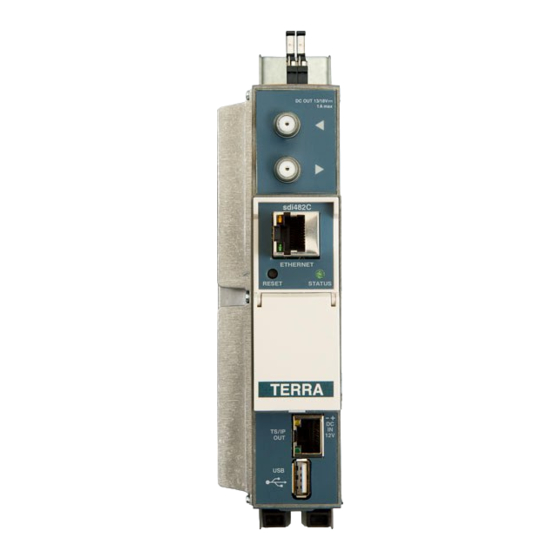

DVB to IP streamers sdi416, sdi482C, SDI516C
1. Product description
DVB-S/S2/S2X to IP streamers (in text - module) designed to broadcast in multicast on an IP network the services (TV
or Radio programmes) issued from FTA or encrypted digital reception. The IP streams can be viewed using an IPTV set-top
box or a software video player. The sdi482C and SDI516C streamers can descramble encrypted services by two conditional
access (CA) modules.
Modules are intended for indoor use only.
2. Characteristics
Input: sixteen (sdi416, SDI516C) or eight (sdi482C) DVB multi program transport streams (MPTS).
Output: up to 512 simultaneous, IP-encapsulated services (TV or Radio programs), with individual multicast addresses
and 16 (sdi416, SDI516C) or 8 (sdi482C) MPTS streams.
• Information filtering of DVB tables.
• UDP & RTP transmission protocols.
• Web interface for configuration and setting.
• SAP & SDP protocols that facilitate automatic service selection on the user's STB and provide information to external
servers.
• PID filtering.
• PSI/SI parsing.
• Transparent ECM & EMM messaging.
• PAT, PMT and SDT table regeneration.
• Routing of CAT, EIT, TDT tables.
• Configurable QoS marking.
• Configurable Time To Live.
• TS file streaming from USB flash.
• Single cable interface (EN50494, EN50607) support.
3. Safety instructions
Installation of the module must be done according IEC60728-11 and national safety standards.
Any repairs must be made by skilled personnel.
Do not expose this module to moisture or splashing water.
Avoid placing the module next to heat sources such as central heating components or in areas of high humidity.
Keep the module away from naked flames.
If the module has been kept in cold conditions for a long time, bringing it into a warm environment may cause condensation,
so allow it to warm up for no less than 2 hours before powering.
Ventilation should not be impeded by covering the module, such as newspapers, table-cloths, curtains etc.
Mount the module in a vertical position only. If installing in a 19" rack system additional forced air cooling fans may be
required (see table "Technical specifications" - operating temperature range).
Always allow 10 cm of free space from the top, front and bottom of the unit to enable any heat to be dissipated.
This product complies with the relevant clauses of the European Directive 2002/96/EC. The unit must be recycled
or discarded according to applicable local and national regulations.
Equipment intended for indoor usage only.
This product is in accordance to following norms of EU: EMC norm EN50083-2, safety norm EN IEC62368-1 and
RoHS norm EN50581.
This product is in accordance with Custom Union Technical Regulations: "Electromagnetic compatibility of technical
equipment" CU TR 020/2011, "On safety of low-voltage equipment" CU TR 004/2011.
This product is in accordance with safety standard AS/NZS 60065 and EMC standards of Australia.
Vers. 1.03
1
EN
Manual in .pdf
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Terra sdi416
Summary of Contents for Terra sdi416
- Page 1 Modules are intended for indoor use only. 2. Characteristics Input: sixteen (sdi416, SDI516C) or eight (sdi482C) DVB multi program transport streams (MPTS). Output: up to 512 simultaneous, IP-encapsulated services (TV or Radio programs), with individual multicast addresses and 16 (sdi416, SDI516C) or 8 (sdi482C) MPTS streams.
- Page 2 1A max 1A max sdi482C sdi482C ETHERNET RESET STATUS TERRA - - + + - - + + TS/IP TS/IP 1 - CA modules slots. Double PCMCIA sockets 1.1 - first module CAM 1 1.2 - second module CAM 2 2 - ◄...
- Page 3 5. External view sdi416 DC OUT 13/18V DC OUT 13/18V 1A max 1A max sdi416 sdi416 ETHERNET STATUS RESET TERRA - - + + - - + + TS/IP TS/IP OUT 1 OUT 1 TS/IP TS/IP OUT 2 OUT 2 1 - ◄...
- Page 4 6. External view SDI516C 1.2 CAM 2 1.1 CAM 1 1 - CA modules slots. Double PCMCIA sockets 1.1 - first module CAM 1 1.2 - second module CAM 2 2 - RF IN / DC OUT - RF input of SAT IF signal / DC output for LNB. F socket. 3 - RF OUT - RF output (input signal loop-through).
-
Page 5: Installation Instructions
, when the module has some diagnostic messages - the status indicator glows in 8. MOUNTING sdi416, sdi482C The module or mounting bracket must be fixed with steel screws Ø 3.5-4 mm. The screws are not included in a package. -
Page 6: Mounting On Din Rail
ETHERNET ETHERNET ETHERNET RESET STATUS RESET STATUS RESET STATUS TERRA TERRA TERRA - - + + - - + + - - + + TS/IP TS/IP TS/IP Figure 7. Mounting or removing to/from DIN rail of plastic spacers (supplied). - Page 7 9. MOUNTING SDI516C Mount the streamer on the wall in vertical position. Fix the streamer with steel screws Ø 4-5 mm. The screws are not included in a package. How to mount mounting supports of the streamer is shown in pictures. Mounting supports Figure 8.
- Page 8 10. Operating 10.1 Initial configuration All modules leave the factory with this control Ethernet interface IP address: 192.168.1.10. In order to avoid conflicts with other IP addresses, it is necessary to perform an initial configuration in local mode. Subsequently, it will be possible to access the modules via the local area network (LAN), either to re-programme it or to check is operating status.
-
Page 9: Lnb Settings
Figure 11. Diagnostic information table with errors 10.3 RF inputs This menu consists of three submenus: “LNB Settings”, “Input settings” and “Configure Terra dSCR”. 10.3.1 LNB settings Figure 12. LNB settings table when “Source type” set to “DiSEqC”... -
Page 10: Input Settings
Figure 13. LNB settings table when “Source type” set to “dSCR” Figure 14. LNB settings table when “Source type” set to “SCR” The Figure 12 “LNB settings” table consists of the following parameters: “LNB LO frequency” - the LNB local oscillator lower frequency in megahertz. Use 9750 MHz for the universal converter. “LNB HI frequency”... - Page 11 There are tree status columns in the „Input settings“ table. „Lock status“ can have following icons: - empty, when the input channel (demodulator) is turned off; , when demodulator is locked to the transponder; , when demodulator is unlocked. This state generates error in diagnostic window as well. If the channel is not used, it’s recommended to turn it off instead of leaving unlocked.
- Page 12 10.3.3 Configure Terra dSCR system This table is for configuring Terra dSCR devices. It is especially useful when multiple dSCR devices are connected to a single module. The table with the scan button is displayed at the beginning. After pressing the button, all dSCR devices are scanned and displayed in the same table (see Figure 17).
- Page 13 „Services“ – service type icon and service name. “IP address” - the multicast address required for the stream to be added. The available range is from 224.0.0.0 to 239.255.255.255, but it is recommended to reduce it from 224.0.1.0 to 238.255.255.255. “IP port”...
- Page 14 Figure 19. Extended settings of the output streams table The description of the table rows: “Transport stream ID”, “Original network ID” – change output stream parameters. “Include EPG information “ - check this to include EPG information from the input stream. “SAP/SDP group “...
- Page 15 10.5 USB This screen (see Figure 20) is used to select a USB flash drive partition, browse files and select file for streaming. In a “File” list box selected file name is displayed. You can select them from this list box. Files with TS extention are marked by icon and can be selected for streaming by mouse click.
- Page 16 10.7 IP parameters Note: sdi416 and SDI516C streamers with two TS/IP output interfaces use fixed data flow path from the demodulators to TS/IP outputs. Data received from the demodulators 1 to 8 is transmitted through TS/IP output 1 only. Data received from the demodulator 9 to 16 is transmitted through TS/IP output 2 only.
-
Page 17: System Menu
Once the different data values have been entered, click on “Update” to conclude the streaming settings. The “SAP/SDP settings” table is used to configure the announcement and service description SAP/SDP channel. “Enable” - check the box if you wish to transmit the service information by SAP/SDP protocol. “Sending period”... -
Page 18: User Management
10.8.3 User management A user with “Administrator” privilege can see this menu and add / remove users who can log in to the system. Figure 24 shows the user control window. Figure 24. User management window Click “Add” to create a new user. A new pop-up window as shown in Figure 25 will appear. The Role parameter is a type of user access. -
Page 19: Firmware Upgrade
10.8.6 Firmware upgrade When you click the “Firmware Upgrade” menu, your web browser will check for the latest software version. The table in Figure 27 with a list of the latest firmware releases will appear on the screen. Figure 27. Software revision history To download the firmware from the server to your computer, click on the “download”... -
Page 20: Restore Defaults
You can enable/disable the auto restart function, select type of restart (see section 10.8.7), set sheduled time of restart. 10.8.9 Restore defaults All settings, except IP parameters, can be reset to factory defaults by selecting the Restore defaults menu. A confirmation message will appear on the screen asking if you really want to do this. -
Page 21: Reset Button
11. “RESET” button [7]; [6]; “RESET” button (Figure 1, position Figure 2, position Figure 3, position ) has different functions, which mainly depend on the duration of the press. • Device reset [8]; A short press (less than 2 seconds) will restart the entire system. “STATUS”... -
Page 22: Technical Specifications
Technical specifications Type sdi416 sdi482C Number of channels RF input DVB-S/S2/S2X frequency range 950-2150 MHz AGC range/impedance 45-85 dBµV / 75 Ω 2 ÷ 45 Ms/s symbol rate 950-2150 MHz / ≤ 1.5 dB loop through frequency range/loss LNB powering/control 0/13/18 V &...
