Light Sky MINI LUNAR User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
n
E-mail:
MINI LUNAR
Address: No. 43, Yunfeng Road, Xiuquan Street,
Huadu District, Guangzhou, China
Please read these user manual carefully before use!

Advertisement

loading
Need help?

Need help?

Do you have a question about the MINI LUNAR and is the answer not in the manual?

Questions and answers

Related Manuals for Light Sky MINI LUNAR

Summary of Contents for Light Sky MINI LUNAR

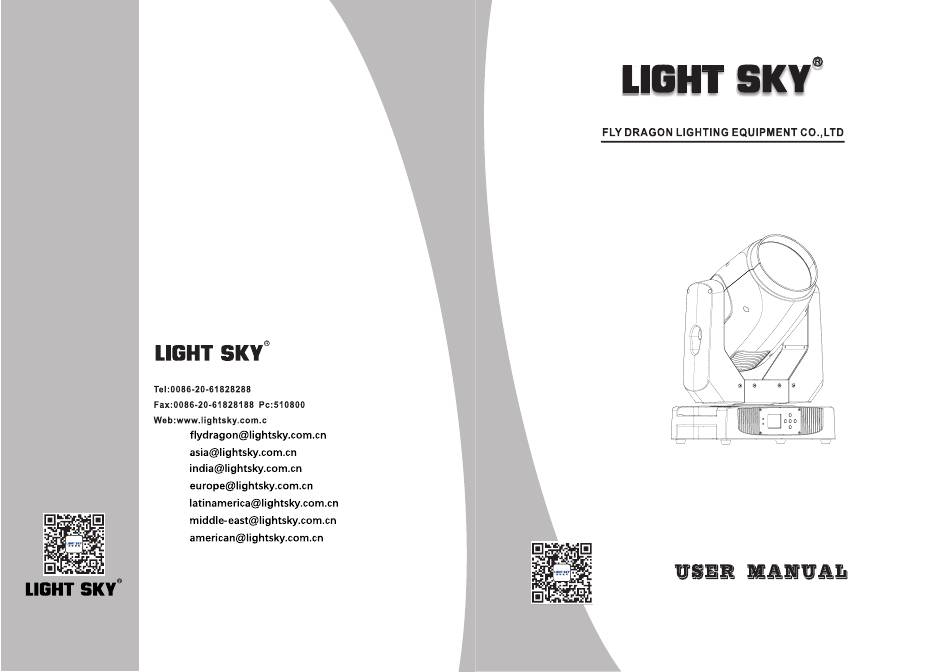

  • Page 1 E-mail: MINI LUNAR Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China Please read these user manual carefully before use!
  • Page 2 Contents 1. Safety information.........................2 2. Technical information......................4 Attachment and body size....................6 4. Installation and connecting....................7 5. Control panel........................9 6. Menu setting........................10 7. Channel function........................12 8. Circuit connecting diagram....................21 9. Cleaning and maintenances....................22 10.Troubeshooting........................22 11.Duty exonerative and copyright protection..............25 Congratulations on choosing our company product! We thank you for your custom. ◆Please note that this product, as all the others in the rich my company range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements.
  • Page 3 When the luminaire projects an object, the luminaires' light outlet must be at least 12 meters to the flammable object. Please do not install the fixture onto flammable surface. The fixtures' fan or ventilation should be no obstructions at least within 0.2M. The double insulation between the LV power supply and the control conductor on the fixture.
  • Page 4 The fitting mounts a high-pressure lamp that needs an external . Immediately replace the lamp if damaged or deformed by heat. The light source in this fixture shall be replaced by the manufacturer or its service agent or similar qualification. Always disconnect from mains before replacing the lamp.
  • Page 5 CONTROL AND PROGRAMMING ● Power supplies available ● IP set - 200~240V 50/60Hz(Optional:100~240V 50/60Hz) - RDM two-way data transmission,Remote reset DMX - Power supply : address Electronic auto-ranging Display ： Power ： 400W PF0.987 ● - The display panel adopts a 1.77-inch TFT screen Power connector: Neutrik power ●...
  • Page 6 1 1 1 1 1 1 Blue white Distance,spot diameter and illumination diagram Standar d( 1 . 8°) 375000(34852) 94900(8820) 43250(4020) 24800(2305) 15650(1455) 10800(1004) 6200(577) Lux fc 1.8° Distance m(ft in) 10(32'10") 20(65'7") 30(98'5") 40(131'3") 50(164') 60(196'10") 80(262'6") Diameter m(ft in) 0.31(1') 0.62(2') 0.93(3'1")
  • Page 7 power cord...
  • Page 8 Safety rope Installing the projector- Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
  • Page 9 power in power end The N terminal is connected with the blue line. Ground The L terminal is connected with the brown line. The power supply of fixtures cannot be connected in series with more ● than 3pcs,different types of lamps are connected as follows: connection to the eiectricty mains must be carried out by a qualified electrical ●...
  • Page 10 DMX512 in signal end Up arrowhead:page up Display Down arrowhead:page down Left arrowhead:reduce Right arrowhead:increase Enter:OK function Exit:in the choice screen...
  • Page 11 -10-...
  • Page 12 1. On the main interface, long press the exit button (the button on the left side of the upright display screen> 3S, the password box will pop up, enter the password 2222, and you can enter the parameter calibration interface; 2.

  • Page 13: Channel Table

    CHANNEL FUNCTION(V1.0) Channel table(Standard 14CH） Percentag Note channel Function Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29 10.2-11.4 Aquamarine 11.8 -13.3 30-34 Aquamarine+Green 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46 16.9-18.0 Light Green 47-51...
  • Page 14 Percentag Note channel Function 1.6 -2.7 Gobo1 3.1 -4.3 8-11 Gobo2 4.7 -5.9 12-15 Gobo3 6.3 -7.5 16-19 Gobo4 7.8 -9.0 20-23 Gobo5 9.4 -10.6 24-27 Gobo6 11.0 -12.2 28-31 Gobo7 32-35 12.5-13.7 Gobo8 36-39 14.1-15.3 Gobo9 40-43 15.7-16.9 Gobo10 44-47 17.3-18.4 Gobo11...
  • Page 15 Percentag Note channel Function 6.3 -21.6 16-55 Fast→Slow,From fast to slow,8 prism free switch Fast→Slow,From fast to slow,24 prism free switch 56-95 22.0-37.3 96-135 37.6-52.9 Fast→Slow,From fast to slow,8 prism+24 prism at the same time free switch 136-175 53.3-68.6 Fast→Slow,8 prism + 24 prism to free switch from fast to slow 176-215 69.0-84.3 Fast→Slow,24 prism + 8 prism to free switch from fast to slow...
  • Page 16 Ch a n n el table(1 6 C H P L U S） Percentag Note Function channel Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29 10.2-11.4 Aquamarine 30-34 11.8-13.3 Aquamarine+Green 35-38 13.7-14.9 Green 39-42...
  • Page 17 Percentag Note Function channel 1.6-2.7 Gobo1 8-11 3.1-4.3 Gobo2 12-15 4.7-5.9 Gobo3 16-19 6.3-7.5 Gobo4 20-23 7.8-9.0 Gobo5 24-27 9.4-10.6 Gobo6 28-31 11.0-12.2 Gobo7 32-35 12.5-13.7 Gobo8 36-39 14.1-15.3 Gobo9 40-43 15.7-16.9 Gobo10 44-47 17.3-18.4 Gobo11 48-51 18.8-20.0 Gobo12 52-55 20.4-21.6 Gobo13 56-59...
  • Page 18 Percentag Note channel Function 240-255 94.1-100 Slow → Fast Rotation，360° degrees back and forth Prism Macro 0-15 0-5.9 Unused Range Fast→Slow,From fast to slow,8 prism free switch 6.3 -21.6 16-55 Fast→Slow,From fast to slow,24 prism free switch 56-95 22.0-37.3 Fast→Slow,From fast to slow,8 prism+24 prism at the same time free switch 96-135 37.6-52.9 Fast→Slow,8 prism + 24 prism to free switch from fast to slow...
  • Page 19 Channel table(16CH） channel Percentag Note Function Colour 0-1.56 White 1.96 -3.14 White+Red 3.53 -4.71 9-12 5.10 -6.67 13-17 Red+Orange 7.06 -8.24 18-21 Orange 8.63 -9.80 22-25 Orange+Aquamarine 10.2 -11.4 26-29 Aquamarine 11.8 -13.3 30-34 Aquamarine+Green 13.7 -14.9 35-38 Green 15.3 -16.5 39-42 Green+Light Green 16.9 -18.0...
  • Page 20 channel Percentag Note Function 4.7 -5.9 12-15 Gobo3 6.3 -7.5 16-19 Gobo4 7.8 -9.0 20-23 Gobo5 9.4 -10.6 24-27 Gobo6 11.0 -12.2 28-31 Gobo7 12.5 -13.7 32-35 Gobo8 14.1 -15.3 36-39 Gobo9 15.7 -16.9 40-43 Gobo10 17.3 -18.4 44-47 Gobo11 18.8 -20.0 48-51 Gobo12...
  • Page 21 channel Percentag Note Function 69.0 -84.3 Fast→Slow,24 prism + 8 prism to free switch from fast to slow 176-215 Fast→Slow,From fast to slow,8 prism and 24 the prism interlock switch 216-255 84.7-100 0-255 0-100 Frost 0-255 0-100 Focus 0-255 0-100 0-255 0-100 Pan Fine...
  • Page 22 -21-...
  • Page 23 -22-...
  • Page 24 ◎ Please check whether the DMX512 controller pass the “turn on”oder. ◎ Please check the connection of the trigger circuit is loose contact. ◎ Please check whether the connected point of he trigger point is loose contact, faster the connect cable. ◎...
  • Page 25 -24-...
  • Page 26 -25-...
