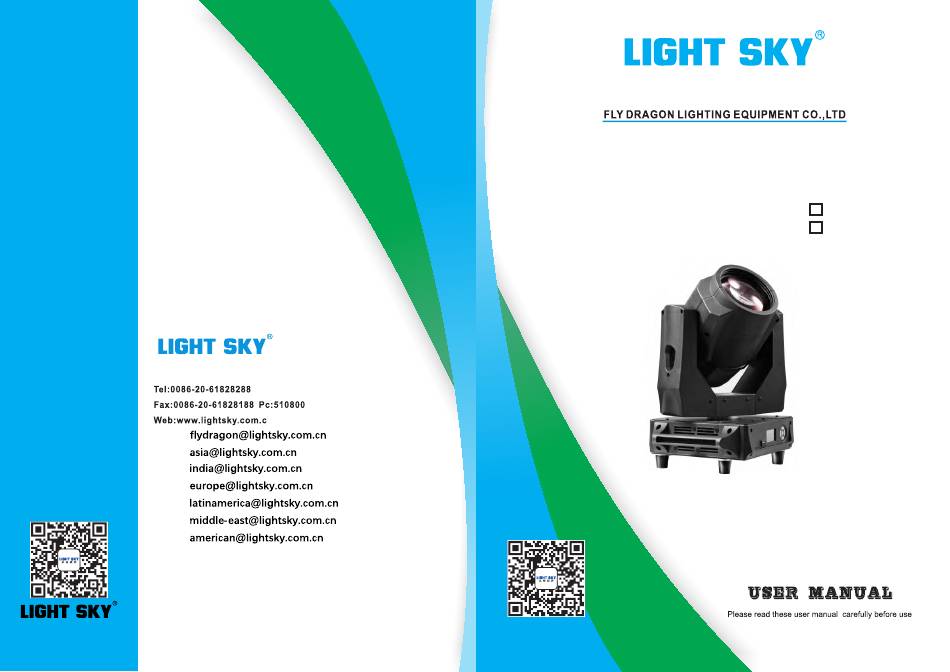

- Page 1 Ⅱ BUMBLEBEE SERIES F230II F330II E-mail: Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China...
-
Page 2: Table Of Contents
Contents 1. Safety information....................2 2.Technical information....................3 3.Attachment and body size ..................7 4.Installation and connecting..................8 5. Control panel......................10 6. Menu setting......................11 7.Channel function....................14 Circuit connecting diagram ..................23 9.Cleaning and maintenances.................24 10.Troubeshooting....................24 Duty exonerative and copyright protection ............25 Congratulations on choosing our company product! We thank you for your custom. ◆Please note that this product, as all the others in the rich my company range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements. -
Page 3: Safety Information
SAFETY INFORMATION • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails,the fitting falls as little as possible. -
Page 4: Technical Information
TECHNICAL INFORMATION ● Lamp: ● IP set ◎ Brand:SIRIUS HRI 230 OSRAM -Automatic charging battery,IP could be set without - Lamp power: 230W electricity. ● Software upgrade - Colour temperature 8000K - Average life 2000h -Insert USB upgrade software. ◎ Brand:SIRIUS HRI 330W XL OSRAM ●... - Page 5 www.lightsky.com.cn...
- Page 7 F2 30 Ⅱ F 33 0Ⅱ 230W 330W 450W 345W 17.5kg 18.8kg 380m×280mm×529mm 380mm×280mm×477mm 400mm×345mm×570mm 19.9kg 21.2kg 865mm×470mm×740mm 69kg 71.8kg 14 CH / 1 6 C H / 1 6C H PL U S 0 -2 .5° 0 - 2. 3° 11 Gobo + 1 white + 3 animation range 8 Prism+ 16 double Prism+ Prism combination Prism macro...
-
Page 8: Attachment And Body Size
power cord 27 5 F230Ⅱ SERIES 2 3 5 1 6 6 4 5 6 3 80 2 7 5 F330Ⅱ SERIES 2 80 3 3 5 1 8 8 52 9 4 8 3 3 7 7 1 2 0 Body Size---Fig 2... -
Page 9: Installation And Connecting
Safety rope Safety rope Installing the projector- Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. - Page 10 power in power end The N terminal is connected with the blue line. Ground The L terminal is connected with the brown line. The items can’t be more than 2-3pcs under series, specifically as ● follows: F230Ⅱ F330Ⅱ 3pcs 2pcs Connection to the electricty mains must be carried out by a qualified electrical ●...
-
Page 11: Control Panel
sig n al end DMX512 in Connecting to the control signal line (DMX) - Fig. 5 ◎ Please use the round 3 or 5-pin XLR plugs &sockets offered by menu facture to connect the first projector's output to the second projector' input and connect the second projector's output to the third projector's input. -
Page 12: Menu Setting
MENU SETTING(V1.0) Ⅰ menu Ⅱ menu Ⅲ menu Main menu DMX Address → Address:001-512 Total:****(h) → Lamp hours Lamp open:* ** * ( h ) → Temperature Board: ***.* → Undistributed RDM UID Fan1:**.*V Fan2:**.*V Fan speed/Voltag Fan1:****RPM → Fan2:**** RPM Fan3:****RPM 1.Colour(***) 2.Shutter(***) - Page 13 Ⅰ menu Ⅱ menu Ⅲ menu Main menu → Pan invert P/T invert → → Tilt invert English(英文) Language → Chinese(中文) Open Back Light → Auto close(15s) Personal → → Display Normal → Reversal Rota.180 → Backlight blink Return(ESC) Return(ESC) 1.Colour(***) 2.Shutter(***) 3.Dimmer(***)
- Page 14 Ⅰ menu Ⅱ menu Ⅲ menu Main menu → STEP *** Test effect → Test all → STEP *** Test Return(ESC) Return(ESC) Error list 000-255 000-255 Tilt 000-255 Dimmer1 000-255 Dimmer2 000-255 Focus1 000-255 Focus2 → Calibration 000-255 Colour 000-255 Stat.Gobo 000-255 Prism1...
-
Page 15: Channel Function
CHANNEL FUNCTION(V1.0) CHANNEL table (standard 16CH) Percentage Channe Function Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine Aquamarine 26-29 10.2-11.4 Aquamarine+Green 30-34 11.8-13.3 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46 16.9-18.0 Light Green 18.4-20.0 Light Green+Lavender... - Page 16 Percentage Channe F un ct i on 0-255 0-100 Dimmer GOBO 0- 1.2 White 1.6-2.7 Gobo1 8-11 3.1-4.3 Gobo2 12-15 4.7-5.9 Gobo3 Gobo4 16-19 6.3-7.5 20-23 7.8-9.0 Gobo5 24-27 9.4-10.6 Gobo6 28-31 11.0-12.2 Gobo7 Gobo8 32-35 12.5-13.7 Gobo9 36-39 14.1-15.3 Gobo10 40-43 15.7-16.9...
- Page 17 Channe Percentage Function 192-207 75.3-81.2 Slow → Fast Rotation，90 degrees back and forth 208-223 81.6-87.5 Slow → Fast Rotation，180 degrees back and forth Slow → Fast Rotation，270 degrees back and forth 87.8-93.7 224-239 240-255 94.1-100 Slow → Fast Rotation，360 degrees back and forth Prism Macro 0-15 0-5.9...
- Page 18 CHANNEL table (steamline 14CH) Percentage Channe Function Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 8.63-9.80 22-25 Orange+Aquamarine Aquamarine 26-29 10.2-11.4 Aquamarine+Green 30-34 11.8-13.3 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46 16.9-18.0 Light Green 18.4-20.0 Light Green+Lavender 47-51...
- Page 19 Percentage Channe F un ct i o n 0-255 0-100 Dimmer GOBO 0- 1.2 White 1.6-2.7 Gobo1 8-11 3.1-4.3 Gobo2 12-15 4.7-5.9 Gobo3 16-19 6.3-7.5 Gobo4 20-23 7.8-9.0 Gobo5 24-27 9.4-10.6 Gobo6 28-31 11.0-12.2 Gobo7 Gobo8 32-35 12.5-13.7 Gobo9 36-39 14.1-15.3 40-43 15.7-16.9...
- Page 20 Percentage Channe Function 192-207 75.3-81.2 Slow → Fast Rotation，90 degrees back and forth 208-223 81.6-87.5 Slow → Fast Rotation，180 degrees back and forth Slow → Fast Rotation，270 degrees back and forth 224-239 87.8-93.7 240-255 94.1-100 Slow → Fast Rotation，360 degrees back and forth Prism Macro 0-15 0-5.9...
- Page 21 Channel table (16CH PLUS) Percentage Channe Function Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine Aquamarine 26-29 10.2-11.4 Aquamarine+Green 30-34 11.8-13.3 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46 16.9-18.0 Light Green 18.4-20.0 Light Green+Lavender 47-51...
- Page 22 Percentage Channe Function 0-255 0-100 Dimmer GOBO 0-1.2 White 1.6-2.7 Gobo1 8-11 3.1-4.3 Gobo2 12-15 4.7-5.9 Gobo3 16-19 6.3-7.5 Gobo4 20-23 7.8-9.0 Gobo5 24-27 9.4-10.6 Gobo6 28-31 11.0-12.2 Gobo7 Gobo8 32-35 12.5-13.7 Gobo9 36-39 14.1-15.3 Gobo10 40-43 15.7-16.9 Gobo11 44-47 17.3-18.4 Gobo12 48-51...
- Page 23 Channe Percentage Function Prism Rotation Unused Range 1-63 0.4-24.7 0 - 180°rotation 64-127 25.1-49.8 CCW，Fast → Slow 128-191 50.2-74.9 CW，Slow → Fast 192-207 75.3-81.2 Slow → Fast Rotation，90 degrees back and forth 208-223 81.6-87.5 Slow → Fast Rotation，180 degrees back and forth Slow →...
-
Page 25: Cleaning And Maintenances
CLEANING AND MAINTENANCES ●In order to ensure the projector could work normally.It should be kept clean always .It is recommended that the fans and ventilation in let should be cleaned every 15 days.The lens and dichroic colour filters should also be reg -ularly cleaned to maintain an optimum light output.Do not use any type of solvent on dichroic colour filters.It will damage the projector. -
Page 26: Duty Exonerative And Copyright Protection
■The light shadow is fogging: ◎Please check the data on the DMX 512 controller is suitable for the electric focus. ◎Please check the machenical parts is jamging.After cleaning,please add some temperature -durable juice. ■The light works interruptly: ◎Please check if the fan works normally or mote clogging. ◎Please check whether the abstract heat have the mote clogging. - Page 27 □F230Ⅱ □F330Ⅱ...
