Installation

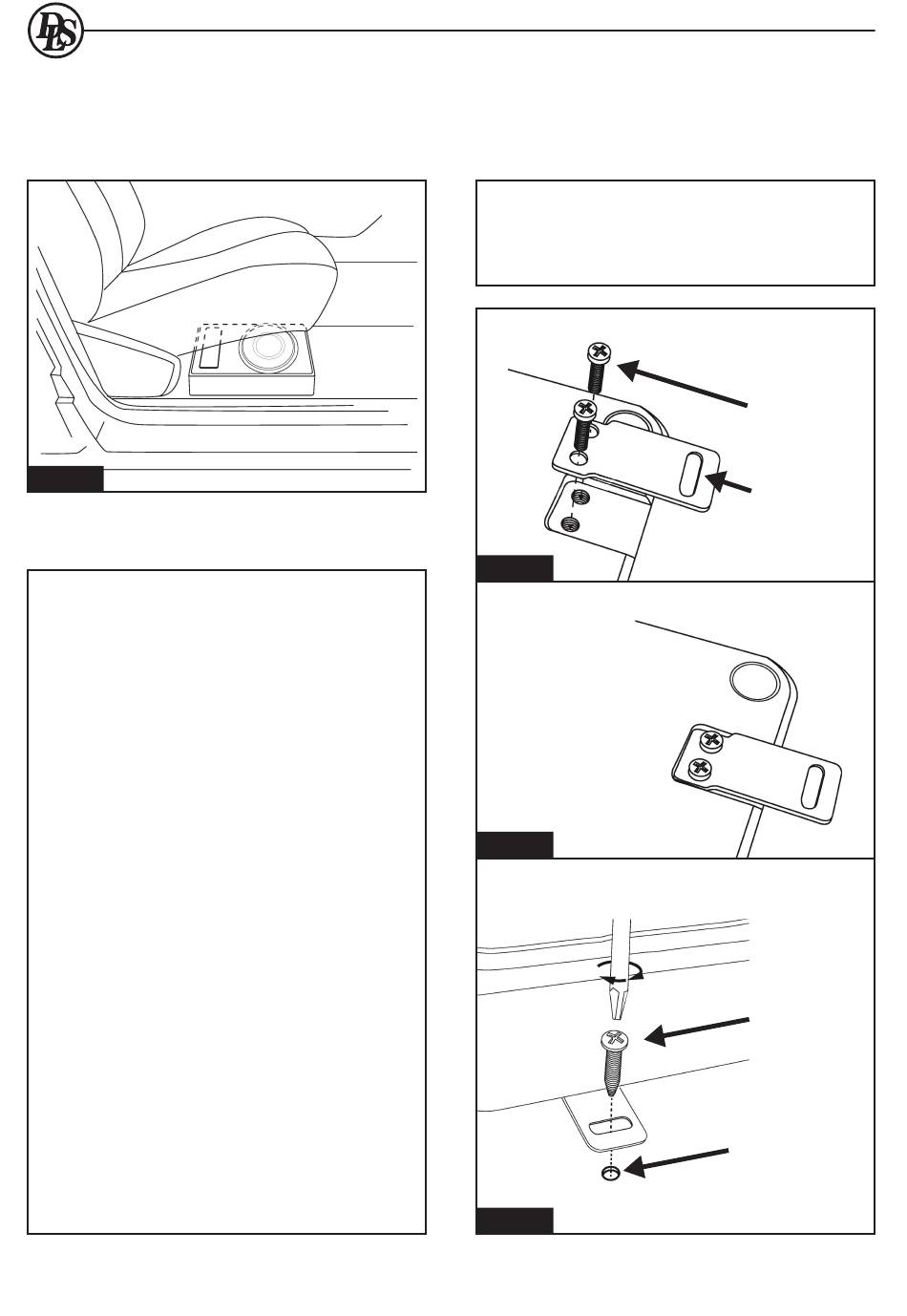

Figure 1
Under the seat
1. The seat must be positioned in its
normal fixed position.
2. Decide the best location possible that
suits your automobile and space
available, checking that the enclosure
doesn't restrict the seat mobility. (See
Figure 1)
3. Ensure the area for subwoofer location
is clean and tidy. Any loose objects
must be removed.
4. Once the location has been decided,
mark the screw hole positions for the
fixing brackets.
5. Drill holes of 2 mm for the 4 fixing
brackets, at your defined locations.
6. Fix the clamps to the subwoofer case
with the four screws M6*8 (the fixing
clamps have a mounting direction
system) see (Figure 2 & 3)
7. Position the subwoofer so that the holes
correspond to the metal supplied
screws and fix it. (Figure 4)
8. Please make sure the subwoofer
enclosure is tightly fixed.
We include a fixing kit to ensure the
subwoofer remains securely mounted. Two
types of installation are possible.
Figure 2
Figure 3
Figure 4
6
4 screws
M6*8
4 mounting
tabs
25 mm
supplied
screws
Pre drilled
mounting
hole
