Installation

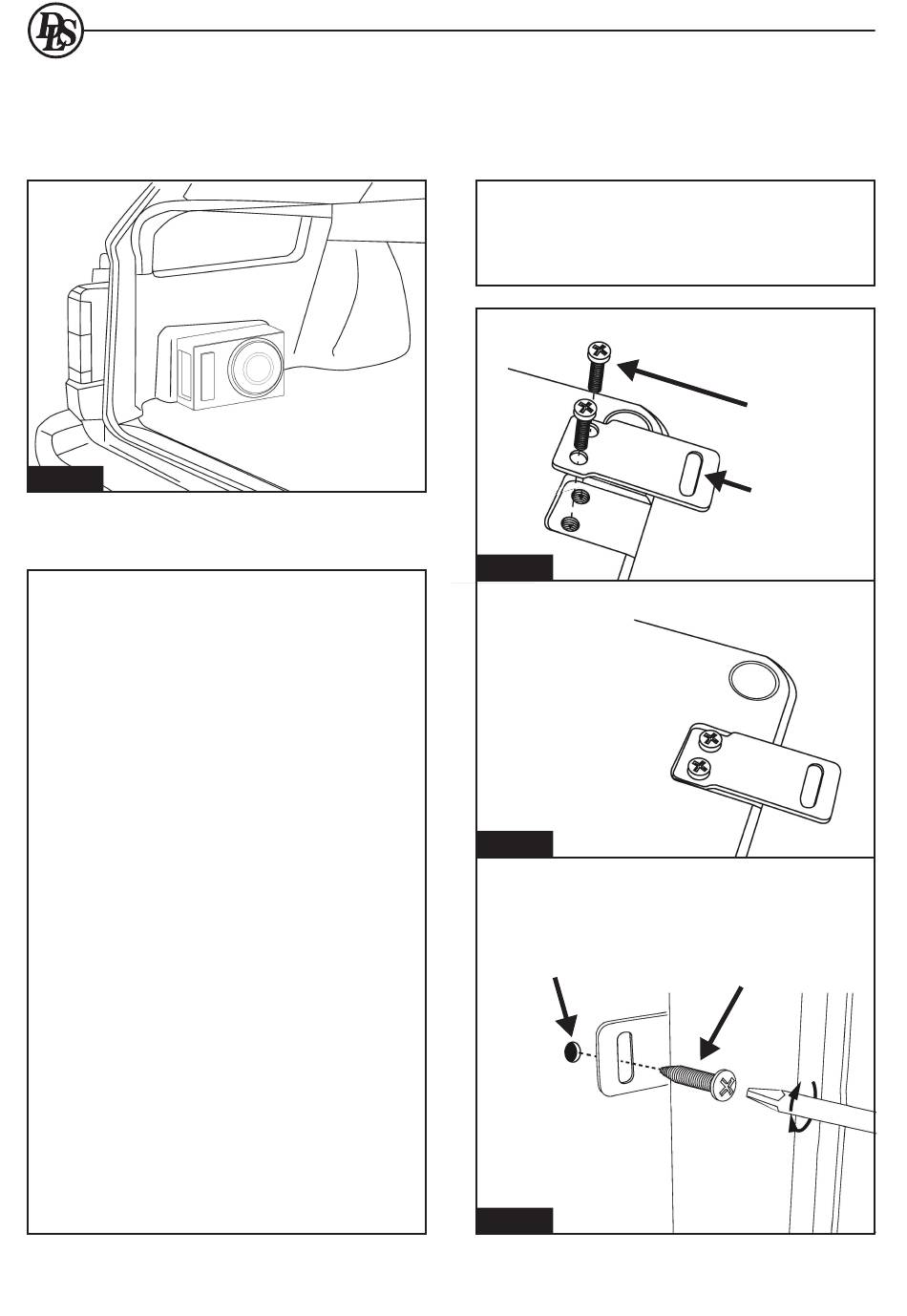

Figure 1
In the trunk
1. Rear seats must be positioned in their
normal fixed position.
2. Decide the best location possible that
suits your automobile and space
available. The best and most secure
location for optimum sound quality is
behind the rear seats,in the trunk floor
(see Figure 1 ).
3. Ensure the area for subwoofer location
is clean and tidy. Any loose objects
must be removed, as they could knock
and damage the subwoofer.
4. Once the location has been decided,
mark the screw hole positions for the
fixing brackets.
5. Drill holes of 2 mm for the 4 fixing
brackets, at your defined locations.
6. Fix the clamps to the subwoofer case
with the four screws M6*8 (the fixing
clamps have a mounting direction
system) see (Figure 2 & 3)
We include a fixing kit to ensure the
subwoofer remains securely mounted. Two
types of installation are possible.
Figure 2
Figure 3
Pre drilled
mounting
hole
Figure 4
7
4 screws
M6*8
4 mounting
tabs
25 mm
supplied
screws
