WELCOME
Thank you for buying a DLS ULTIMATE subwoofer.
The subwoofer must be installed correctly in order to work well.
This manual will show you how to install it like a pro. Please
read the entire manual before beginning the installation.
Install the subwoofer yourself if you feel confident with our
instructions and if you have the proper tools. However if you
feel unsure, turn over the installation job to someone better suited
to it. The speakers are designed for enclosure mounting.
CONNECTION OF SUBWOOFER
How to connect depends on what type of amplifier you use.
The best is to follow the instructions given in the manual for the
amplifier. Most amplifiers today have built-in lowpass crossover
and possibilities to connect your subwoofer in bridge mode.
Two 4 ohm subwoofers are often connected in stereo mode
since most amplifiers can´t handle bridge mode loads below 4
ohms.
SP12i and 15 have dual, two ohm, voice coils which should be
considered when you connect them.
SP15S has four 2 ohm voice coils that can be connected in
many different ways.
We also recommend the use of a subsonic highpass filter. This
gives a better bass reproduction with less "rumble". In most
DLS amplifiers this feature is already built-in.
For wiring use high class speaker wires, min AWG11 (4 mm

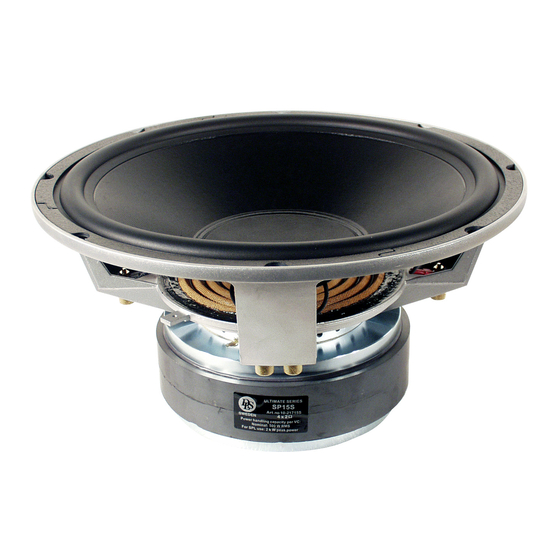

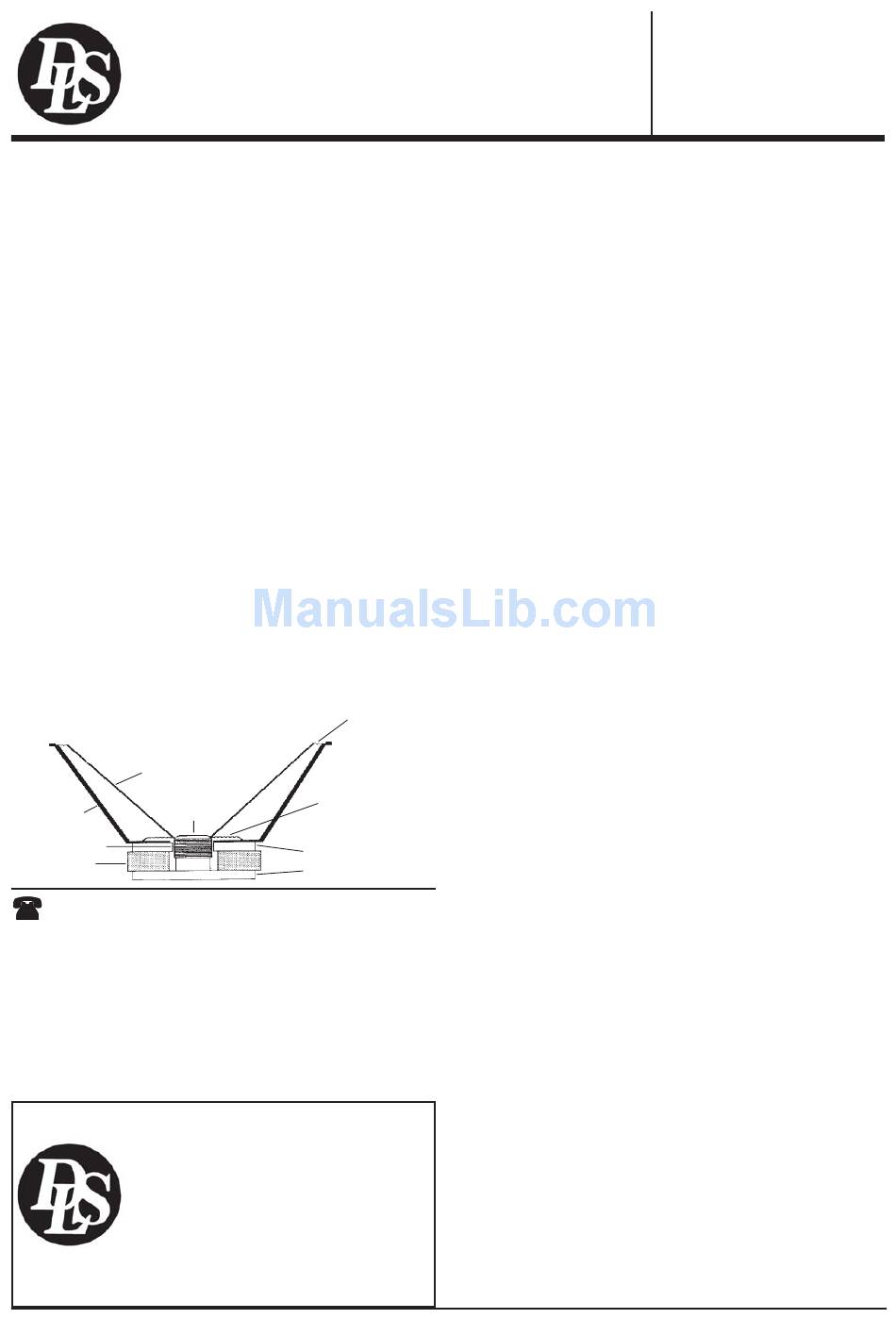

THE SUBWOOFER
speaker cone
dust cap
chassis
voice coil
magnet
Technical Assistance
For technical assistance ask the shop where the product was
sold or the distributor in your very country.You can always phone
the DLS Helpdesk in Sweden + 46 31 840060 or send an e-
mail to info@dls.e
Information can also be found on our WEB-site www.dls.se
We follow a policy of continuous advancement in development.
For this reason all or part of specifications & designs may be
changed without prior notice.
DLS Svenska AB
SE-40251 Göteborg, Sweden
Valid from 2010-01-13
upper
suspension
spider
pole plate
T-yoke
P.O. Box 13029
Tel: +46 31 840060
Fax: +46 31 844021
E-mail: info@dls.se
www.dls.se
SUBWOOFER ENCLOSURES, GENERAL
Build your enclosure in a stable and airtight material. The best
is MDF-board, 19 mm, or particle board, 22 mm. Larger
enclosures must have bracing inside to avoid vibrations. The
enclosure must be completely airtight. Use sealing compound
in all joints, also around the cable terminals. The size of the
enclosure is decided by the speaker data.
SEALED ENCLOSURES
Sealed enclosures are easy to build. The size is not critical, but
it can´t be too small. The speaker data such as Fs, Qts, Vas
and X-max decides the size of the enclosure.
Large speakers need larger boxes. Two speakers need a box
of the double size etc. The enclosure must be completely air-
tight.
A sealed enclosure should be filled with acoustic wool up to 75
- 100%.
A sealed enclosure has a lower efficiency than vented
enclosures but they can handle high power and are easy to
build.
A subwoofer in a sealed enclosure creates a tight bass suitable
for the audiophiles listening to classical music, jazz and soft
rock.
VENTED ENCLOSURES
A speaker in a vented enclosure has a higher efficiency (3 dB)
and higher power handling capacity than in a sealed enclosure.
2 ).
In a vented enclosure the sound from the speaker and the port
work together creating a higher sound level. The sound from
the port must come out in the same phase as from the speaker
otherwise the result is bad.
The size of the vented enclosure is decided by the speaker
data just as for the sealed one.
The size of the vehicle often decides the practical size of the
enclosure. A smaller enclosure has a higher resonant frequency
than the larger one. The size of the enclosure should not be so
big that the speaker plays below it´s own free air resonance
(Fs), then it looses in power handling capacity.
The port does not have to be fully inside the enclosure as long
as the area and length are correct. Sometimes you need two or
more ports in an enclosure. You can convert from one to two or
more ports as long as the total port area is the same.
All DLS subwoofers works well in vented enclosures.
BANDPASS ENCLOSURES
In all bandpass enclosures the speakers are hidden inside the
enclosure, all sound is coming out through the ports. There are
different types of bandpass enclosures and they have in com-
mon that they are a bit more difficult to build. Most DLS
subwoofers can be used in bandpass enclosures.
IMPORTANT!
Think of the speaker weight when you mount it. If you don´t
mount it properly it can come loose.

WARRANTY SERVICE

This speaker is covered by warranty, depending on the
conditions in the country where it is sold. If the speaker is retur-
ned for service, please include the original dated receipt with
the product.
SP12i, SP15
SP15S, SP18S
