Power Terminal
Connect to a good chassis ground. The ground connection should be clean, unpainted metal to
provide a good electrical connection. Use a wire brush, a scraper or a piece of an abrasive sheet to
clean the metal.
Remote Terminal
Connect the remote terminal to the remote output of the head unit. This turns on the amplifier
whenever the car stereo is turned on
Ground Terminal
Connect the fuse holder as close to the vehicle battery + as possible and connect the cabel on the
rear panel on the subwoofer.Use a ring crimp terminal connector to battery.

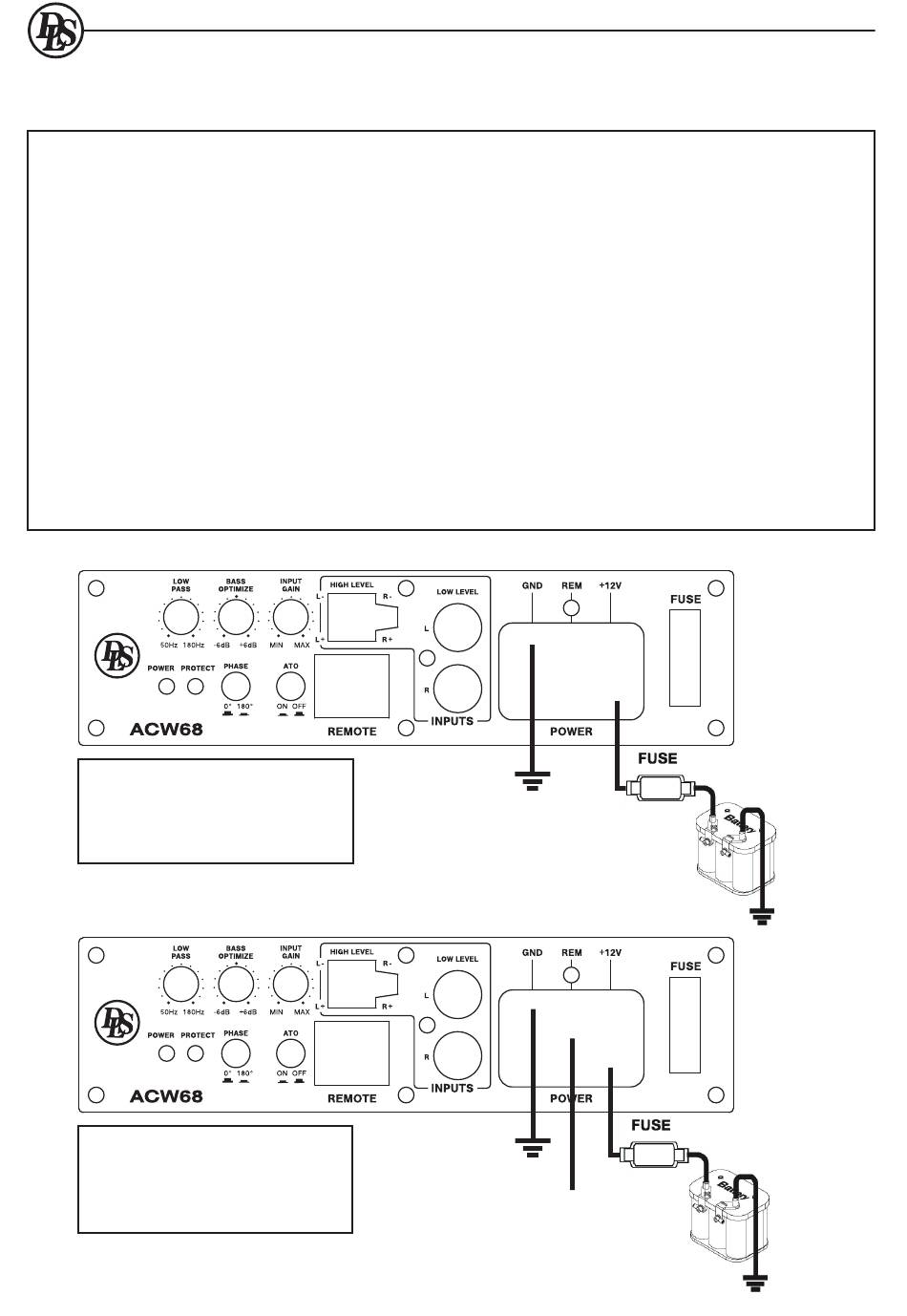

NOTE: In this connection,
the AUTO TURN OFF switch
is in the ON position.
NOTE: In this connection,
the AUTO TURN ON switch
is in the OFF position.
Chassi
ground point
Chassi
ground point
To Remote Turn on
terminal of head unit
