Model: PEL01352 and PEL01353
Please read these instructions carefully before use and retain for future reference.
IMPORTANT SAFETY INFORMATION
•
Avoid locations of high temperature or humidity.
•
The lamp is rated at IP65 for external use.
WHAT'S INCLUDED
•
Lamp assembly.
•
User manual.
•
Pack of screws and wall plugs.
POSITIONING
•
The lamp is suitable for mounting on plasterboard, wood or masonry surfaces.
•
It should be mounted in a position of maximum sunlight for optimum charge of the
internal batteries.
•
Before drilling any fixing holes, check that there are no hidden obstructions behind
the mounting surface such as pipes or cables.
INSTALLATION
•
Remove the 4 screws and the upper cover then offer the lamp to the surface and
mark the location of the upper fixing holes.
•
Drill the wall and fit the wall plugs if required and fit the screws leaving the heads
3-4mm proud of the surface.
•
Replace the cover and tighten the screws then locate the keyhole mounting points
over the screws so the lamp is securely mounted.
•
Press the switch to activate the lamp. If the batteries are charged, covering the
light sensor will illuminate the LEDs to test the operation.

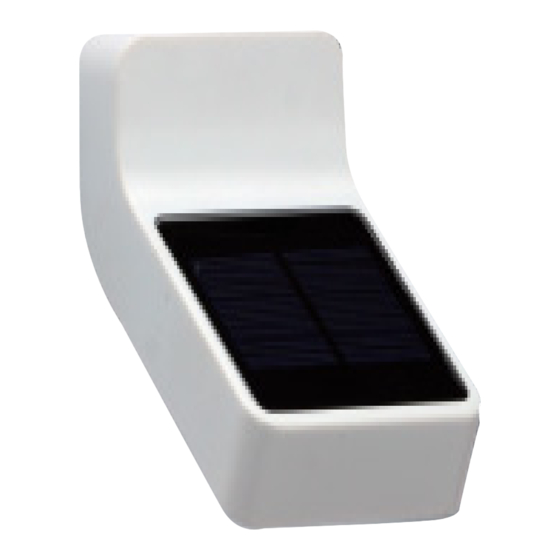

Solar Wall Security Lights
1
Advertisement
Table of Contents
Related Manuals for Pro-Elec PEL01352
Summary of Contents for Pro-Elec PEL01352
- Page 1 Solar Wall Security Lights Model: PEL01352 and PEL01353 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION • Avoid locations of high temperature or humidity. • The lamp is rated at IP65 for external use.
- Page 2 Upper cover Solar panel Batteries ON/OFF button Main Assembly LED panel Lens cover Screw OPERATION • Allow at least 8hrs for the battery to fully charge initially. • When the ambient light drops below a preset level the lamp will illuminate. NOTE: the lamp does not light except in low ambient light levels.
