Pro-Elec PEL01363 Quick Start Manual

Triple lantern post light

Please read these instructions carefully before use and retain for future reference.

IMPORTANT SAFETY INFORMATION

•

When using electrical appliances basic safety precautions should always be

followed.

•

Check that the voltage indicated on the rating plate corresponds with that of the

local network before connecting the appliance to the mains power supply.

Safety Information for Installation and Operation

•

Avoid excessive force when installing.

•

Always install on a surface that can support the weight of the fixture.

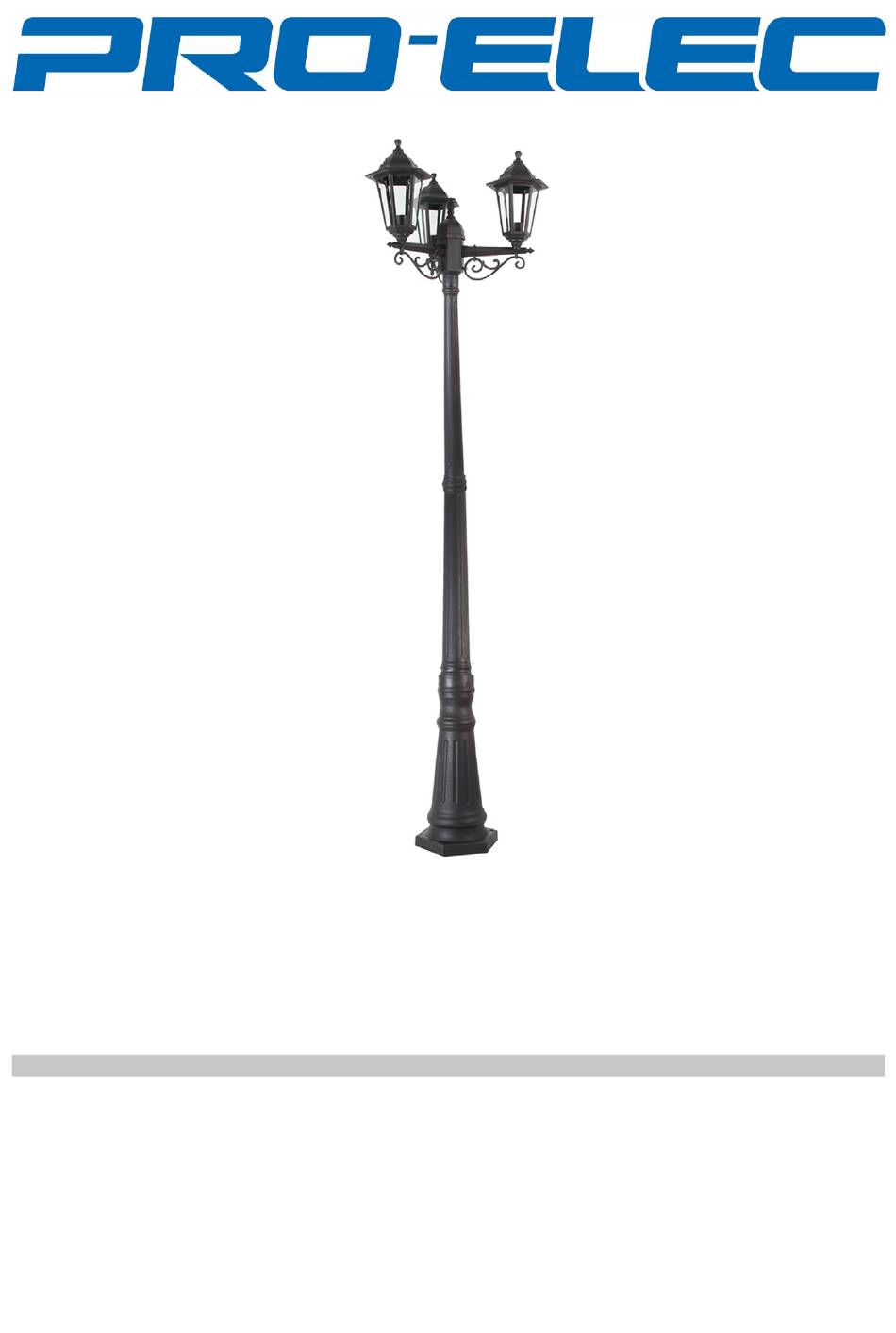

TRIPLE LANTERN POST LIGHT

Model: PEL01363

Table of Contents

Do you have a question about the PEL01363 and is the answer not in the manual?

Page 1 TRIPLE LANTERN POST LIGHT Model: PEL01363 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION • When using electrical appliances basic safety precautions should always be followed. • Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply.
Page 2 INSTALLATION Note: This product requires a degree of preparation before assembly and installation can proceed. If you are not familiar with the methods of installing an underground mains supply to BS7671:2018 please consult a qualified electrician. • Excavate a hole approximately 500mm diameter and 150mm deep so that an underground mains supply can be installed with 2.5 metres of cable projecting up through the centre of the mounting surface.
Page 3 • Pass the cable up the lower half of the lamp post and screw it onto the base unit. • Repeat with the upper half post and screw it onto the lower half post. • Pass the cable through the top collar and screw that to the top of the post.
Page 4 CLEANING AND MAINTENANCE • Clean only with a damp cloth with a little liquid detergent. Do not use any chemicals, abrasives or solvents that may damage the product. SPECIFICATIONS Voltage 220-240V~50Hz IP rating IP44 Lamp type 3 x E27 Fluorescent or LED Max 11W each INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL &...
