Summary of Contents for Pro-Elec PEL00589

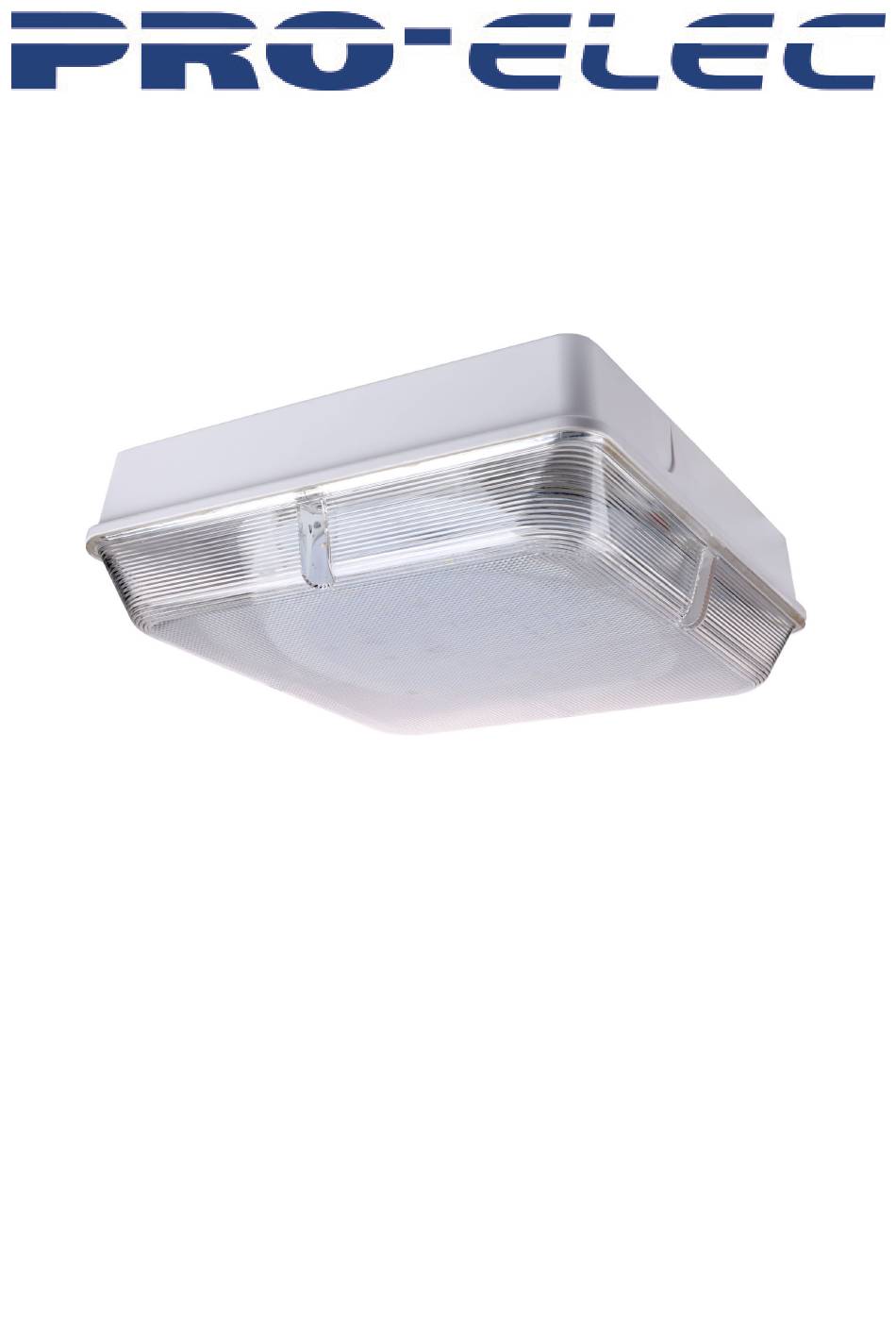

- Page 1 Model No. PEL00589 MAINTAINED LED SQUARE EMERGENCY CEILING LIGHT...
- Page 2 Please read these instructions carefully before starting installation and retain for future reference. The centre page test record can be removed and kept with the building fire safety records. IMPORTANT SAFETY INFORMATION RISK OF ELECTRICAL SHOCK. ALWAYS ISOLATE THE POWER AT THE MAINS BEFORE INSTALLING OR MAINTAINING THIS EMERGENCY LIGHT.
- Page 3 Test Record Sheet on reverse PULL OUT...
- Page 4 Installation, maintenance a Location: Installation date: Installed by: 20__ 20__ Month Test Sign Date Sign Date Short Short Short Short Short Short Short Short Short Short...
- Page 5 and operation check record Installation test duration: 20__ 20__ 20__ Sign Date Sign Date Sign Date...
- Page 6 Test Record Sheet on reverse PULL OUT...
- Page 7 11. Pivot the plate assembly flush into the casing and fix into position with the 2 screws. Make sure the screws are tightened. 12. Fit the diffuser into position and tighten the 4 screws. 13. Restore the power supply. The green LED should light to show the battery is being charged.
- Page 8 Changing the battery • If after a routine operation check, the lamp does not remain lit for the 3 hour period, a new battery pack may be required. Change the battery pack as follows: Isolate from the mains supply. Remove the diffuser and release the main LED plate assembly. Unplug the battery pack in line connector.
