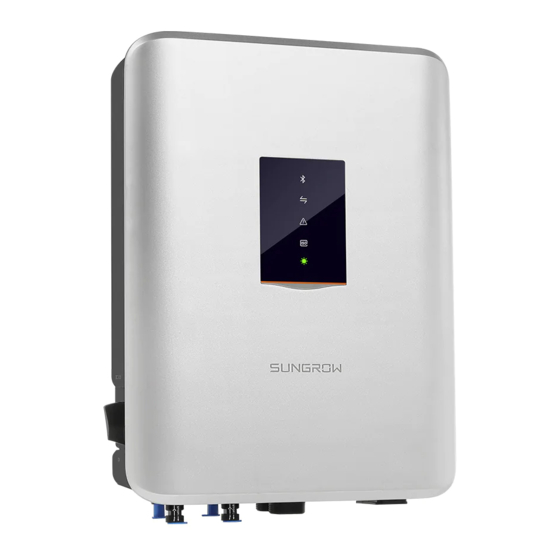

3-Phase PV Inverters (5-20kW)
Commissioning with Logger1000 Quick Guide
Disclaimer
The material in this document has been prepared by Sungrow Australia Group Pty. Ltd. ABN 76 168
258 679 and is intended as a guideline to assist solar installers for troubleshooting. It is not a statement
or advice on any of the Electrical or Solar Industry standards or guidelines. Please observe all OH&S
regulations when working on Sungrow equipment.
Version
Revision History
1.2
Issued for Approval
This document only applies to Sungrow Power three-phase inverters (including
SG5KTL-MT, SG10 KTL-MT, SG15KTL-M, SG20KTL-M) with Logger1000. The
information in this document may contain predictive statements including, without
limitation, statements regarding the future financial and operating results, future
product portfolio, new technology, etc. There are several factors that could cause
actual results and developments to differ materially from those expressed or implied in
the predictive statements. Therefore, such information is provided for reference
purpose only and constitutes neither an offer nor an acceptance. Sungrow Power may
change the information at any time without notice.
TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2
As we continuously improving our services, changes to this document may occur without notice.
Created by
AU Service Team
© Sungrow Power Supply Co., Ltd. All rights reserved.
Date
th
29
Jan 2021
Page 1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG5KTL-MT and is the answer not in the manual?

Questions and answers

Related Manuals for Sungrow SG5KTL-MT

Summary of Contents for Sungrow SG5KTL-MT

  • Page 1 Commissioning with Logger1000 Quick Guide Disclaimer The material in this document has been prepared by Sungrow Australia Group Pty. Ltd. ABN 76 168 258 679 and is intended as a guideline to assist solar installers for troubleshooting. It is not a statement or advice on any of the Electrical or Solar Industry standards or guidelines.

  • Page 2: Table Of Contents

    Setup Export Control if required ..............15 Create Plant on iSolarCloud ................16 TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 2 of 16 © Sungrow Power Supply Co., Ltd. All rights reserved. As we continuously improving our services, changes to this document may occur without notice.

  • Page 3: Introduction

    1. Introduction This quick guide is to be read in conjunction with the Sungrow’s User Manuals and 3- phase KTL series inverters as example for demonstration. When more than one inverter is installed, all the commissioning is done via a Logger1000.

  • Page 4: Rs485 Connections

    Note: Make sure to plug into the COM port on the inverter (Terminal 2). DO NOT plug into the RS485 port (Terminal 5) As the Sungrow KTL series inverter only has one port for COM connection, if the daisy- chain RS485 connection is required, this can be accomplished by using a third party RJ45 splitter.
  • Page 5 Note: Never connect the meter to the same RS485 terminals as the inverters. TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 5 of 16 © Sungrow Power Supply Co., Ltd. All rights reserved. As we continuously improving our services, changes to this document may occur without notice.

  • Page 6: Energy Meter Connection

    Connect to Logger1000 via the RS485 cable from the energy meter on RS485 port A2 and B2. TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 6 of 16 © Sungrow Power Supply Co., Ltd. All rights reserved. As we continuously improving our services, changes to this document may occur without notice.

  • Page 7: Connection To Logger1000

    COM2 on the portal. TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 7 of 16 © Sungrow Power Supply Co., Ltd. All rights reserved. As we continuously improving our services, changes to this document may occur without notice.

  • Page 8: Web Portal Setup

    When you log in for the first time, a help window will pop up for instruction. TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 8 of 16 © Sungrow Power Supply Co., Ltd. All rights reserved. As we continuously improving our services, changes to this document may occur without notice.

  • Page 9: Set Local Time

    Zone to ‘UTC+10:00’ and make sure to Save TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 9 of 16 © Sungrow Power Supply Co., Ltd. All rights reserved. As we continuously improving our services, changes to this document may occur without notice.

  • Page 10: Scan For Inverters

    Scan for Inverters Navigate to ‘Device’ and click ‘Device List’ section and click ‘Auto search’. Sungrow inverters will be automatically detected as long as they are correctly connected and energized. Confirm the communication status for each device under Communication status section.

  • Page 11: Add Energy Meter

    COM3. TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 11 of 16 © Sungrow Power Supply Co., Ltd. All rights reserved. As we continuously improving our services, changes to this document may occur without notice.

  • Page 12: Enable Remote Control

    Server Domain. Please make sure the domain address is api.isolarcloud.com.hk TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 12 of 16 © Sungrow Power Supply Co., Ltd. All rights reserved. As we continuously improving our services, changes to this document may occur without notice.

  • Page 13: Internet Connection

    (at the bottom) will be on. TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 13 of 16 © Sungrow Power Supply Co., Ltd. All rights reserved. As we continuously improving our services, changes to this document may occur without notice.

  • Page 14: Add Ct Transformation Ratio

    Parameter”. If the ratio is 200/5, then enter value 40 in the CT Transformer Ratio. TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 14 of 16 © Sungrow Power Supply Co., Ltd. All rights reserved. As we continuously improving our services, changes to this document may occur without notice.

  • Page 15: Setup Export Control If Required

    Active Power’ to 20 kW. Disable TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 15 of 16 © Sungrow Power Supply Co., Ltd. All rights reserved. As we continuously improving our services, changes to this document may occur without notice.

  • Page 16: Create Plant On Isolarcloud

    Then you only need to enter the customer’s basic information, and the plant will be created in a few minutes. If you have any questions, please contact Sungrow Service Department on 1800 786 476 or email to service@sungrowpower.com.au. TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 16 of 16 ©...
