Assembly Instruction Manual
Please read instructions thoroughly before beginning assembly.
Check boxes carefully for contents listed. Some parts are packaged inside of others.
Assemble on a clean, flat, non-abrasive surface to prevent scratching.
In the event of missing or damaged parts please call or email our customer service department at
115 Vision Parkway
P.O. Box 122
Sheboygan Falls, WI 53085
the contact info below.
Tools Required
-Battery or Electric Drill (#2 phillips bit)
-Tape Measure
-PVC, Super or Crazy Glue
QUESTIONS? COMMENTS? CONTACT US!
Estate Trellis
11157
Model#
W221122-A5080
*W201121-A2040*
*W201121-A2040*
*W201121-A2040*
*W201121-A2040*
*W201121-A2040*
*W201121-A2040*
www.dura-trel.com
sales@dura-trel.com
1-877-258-6020
Advertisement
Table of Contents
Related Manuals for DuraTrel Estate Trellis 11157
Summary of Contents for DuraTrel Estate Trellis 11157

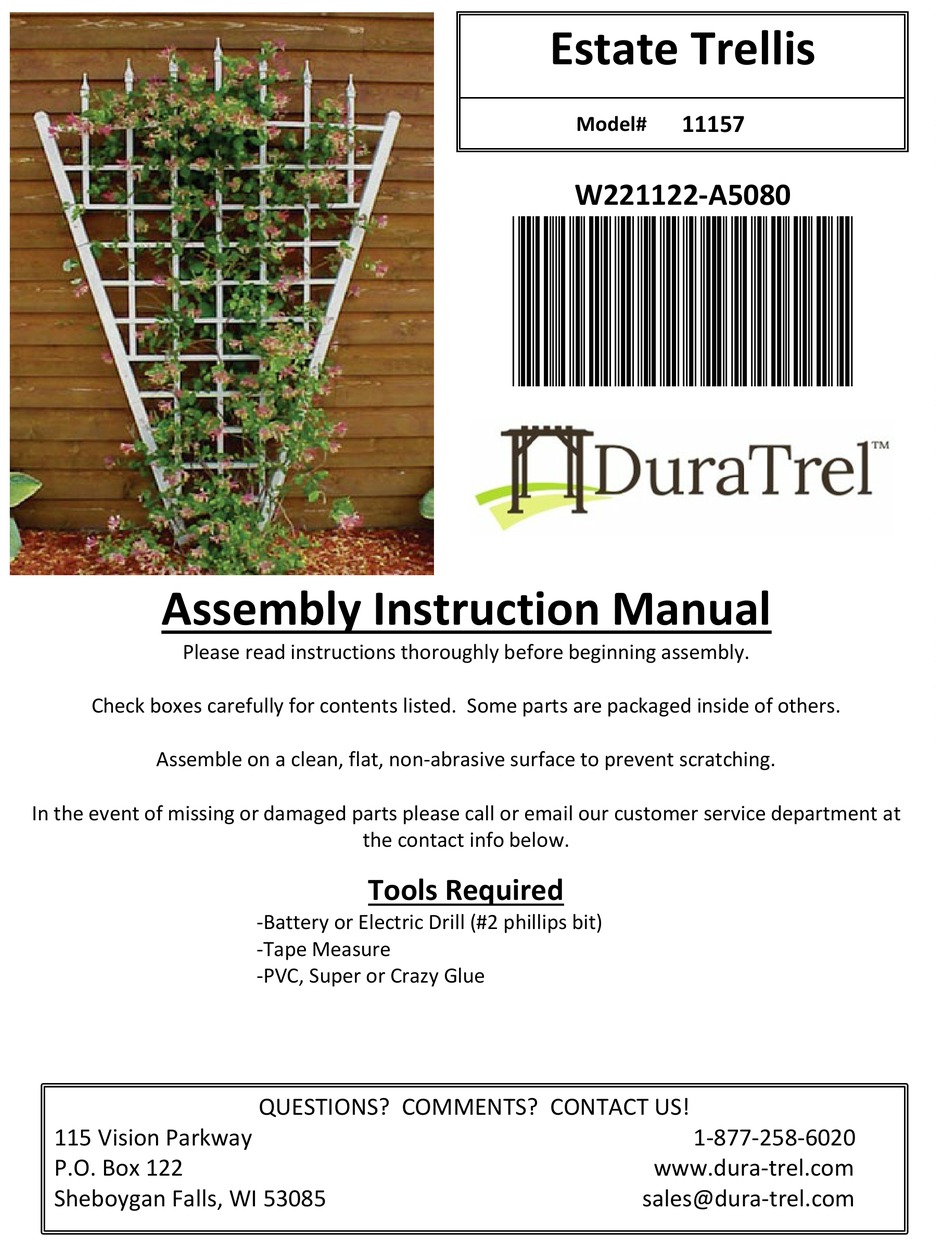

- Page 1 Estate Trellis 11157 Model# W221122-A5080 *W201121-A2040* *W201121-A2040* *W201121-A2040* *W201121-A2040* *W201121-A2040* *W201121-A2040* Assembly Instruction Manual Please read instructions thoroughly before beginning assembly. Check boxes carefully for contents listed. Some parts are packaged inside of others. Assemble on a clean, flat, non-abrasive surface to prevent scratching. In the event of missing or damaged parts please call or email our customer service department at the contact info below.
- Page 2 94" 12" 58" Estate Trellis - Page 2...
- Page 3 Lay out one right post (part 2). Starting at bottom (end with hole 6” from post end), insert horizontal cross rails from shortest to longest (part 3-14) Part number 3,4,8 & 12 have a stop to each part and they should face down toward the narrow side.
- Page 4 Insert one 74” vertical rail (part 16) through cross rails on either side of the center rail (part 15). Insert 45½” vertical rails (part 17) through cross rails on either side of part 16. Insert 17½” vertical rails (part 18) through cross rails on either side of part 17.
- Page 5 Using ¾" painted screws, screw together trellis. Be sure that all parts are fully inserted into posts before securing. Using PVC, super or crazy glue, glue post caps onto posts and arrowhead caps onto vertical rails. To secure directly to wall, slide 6” screw through clear screw backer.
- Page 6 Warranty Statement 20 Year Guarantee Please call manufacturer direct with questions concerning missing or defective parts at Toll Free: 877-258-6020. Dura-trel, Inc. products are warranted to be free from manufacturing defects resulting in delaminating, peeling, flaking, corroding, cracking, crazing, or extreme amounts of fading or bleaching causing the PVC to change to its natural color for a period of 20 years from the date of purchase.
