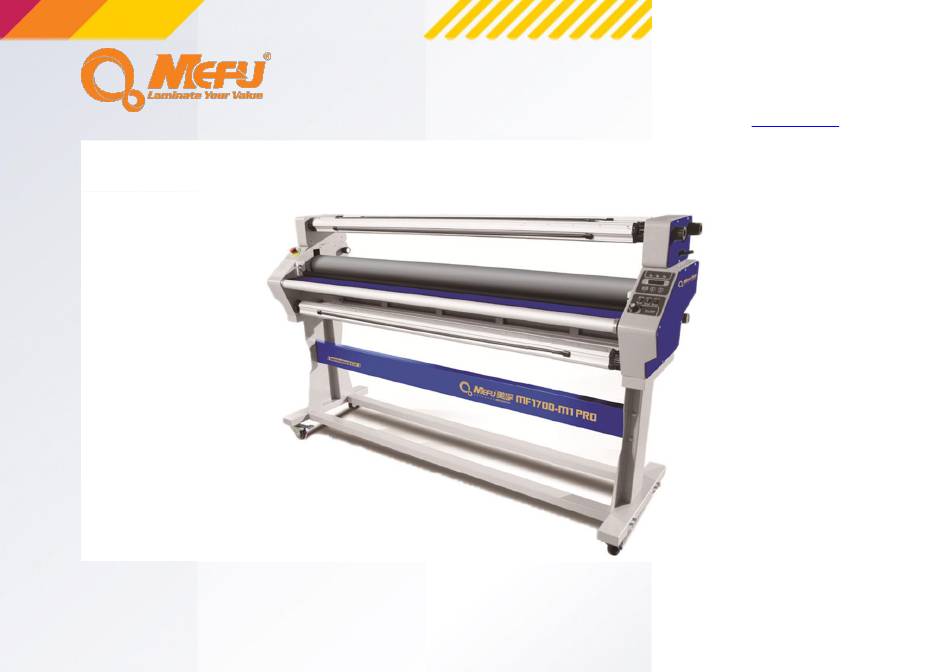

  • Page 1 Laminate Your Value www.mefuchina.com Warm Laminator —— MF1700-M1 PRO...
  • Page 2: Table Of Contents

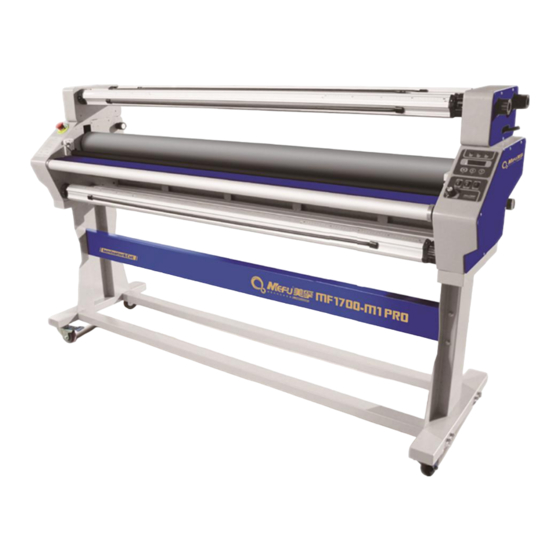

    Contents General Information General Information Warm Laminator(Optional Cutter) MF1700-M1 PRO, 1630mm/64” updated from classic Panel M1 & M1+, keep the advantages of silicon roller, pneumatic lift etc. With optional cutters, Warning Symbols not only save the cost and time but adjust all positions during lamination, will prevent Safety any printings or laminating mistakes.
  • Page 3: Panel

    Laminate Your Value www.mefuchina.com Warning Symbols To know clearly about this manual for using safely with flatbed, you need to be familiar with the warning symbols in this manual.
  • Page 4: Safety

    Laminate Your Value www.mefuchina.com Safety In order to make a full understanding of the machine, please read this manual Emergency situations carefully before operation. Take care when operating the machine, especially if more than one operator is using it. In the event of an emergency, Press the emergency stop button to stop the laminator in an emergency.
  • Page 5: Installation And Notice

    Installation and Notice Before use The MEFU Laminator should be assembled and used in a clean room with a Check the chains and gears (at a regular time), clean and lubricate. normal room temperature and normal humidity levels. The work place should be dry and ventilated.
  • Page 6: Operation

    Laminate Your Value www.mefuchina.com Operation Connect the tube (from air compressor) to the air 3. Plug in 1. Install the oil-water separator inlet of oil-water separator. 4. Switch on the laminator 5. Place the roll of cold film and paper tube to the upper rolls (film roll and release liner roll), place the roll of graphic and paper tube to the the lower rolls (feeding roll and finish product roll), and measure them straightly with scale on the rolls.
  • Page 7 Laminate Your Value www.mefuchina.com 7. Using Air knob, lift up the roller. 6. Fix the mandrel 8. Peel off the liner 11. Feed into the graphic. 9. Pass the film through the laminator. 10. Pull out the film and stick to the paper tube.
  • Page 8 Laminate Your Value www.mefuchina.com 12. Put down the roll to keep the feeding graphic steady. 13. Adjust the tension depending on your material. 14. Lift down the roller. 16. Press “ON/Set” 3 seconds to turn on and 17. In Forward Mode, press “Run” to lamnate, adjust speed 15.
  • Page 9 Laminate Your Value www.mefuchina.com 18. Adjust the speed 19. The finish.
  • Page 10: Maintenance

    Laminate Your Value www.mefuchina.com Troubleshooting Maintenance 1.Reset the emergency stop button. The roller won’t move up and down Every day 2.Reset the controls · Make sure that the machine is not held any hard stuff and the roller is not (If none of this helps, please contact a damaged.
  • Page 11: Repairs

    You should first try contacting a technician through the Max width 1630mm/64” dealer where you bought your Laminator. Speed Up to 12m/min If this is not possible, contact MEFU Technical Service Laminating type Cold ( heat-assist) Phone: +00 86 15890020566 Heating method Infrared...
  • Page 12 Laminate Your Value www.mefuchina.com ---------- Laminator, Cutter, Film ---------- MEFU INDUSTRIAL LIMITED Ma Zhai Industrial Park, Er Qi District, Zheng Zhou City, He Nan Province, China ·Tel: +86-158 9002 0566 ·E-mail: yang@mefuchina.com ·Skype:mefu-ex www.mefuchina.com...
