Summary of Contents for Mefu MF-1000-F1 Series

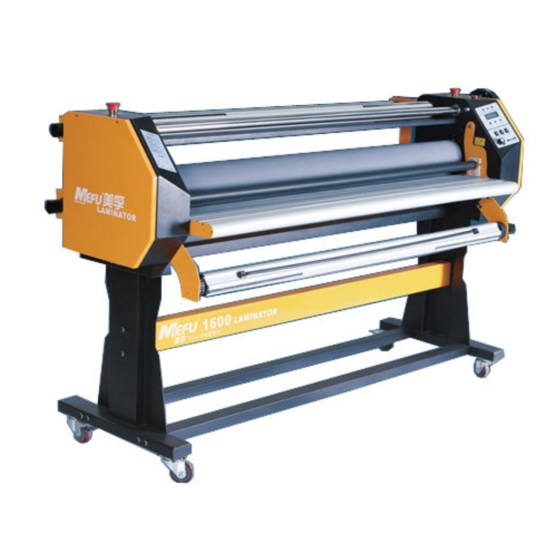

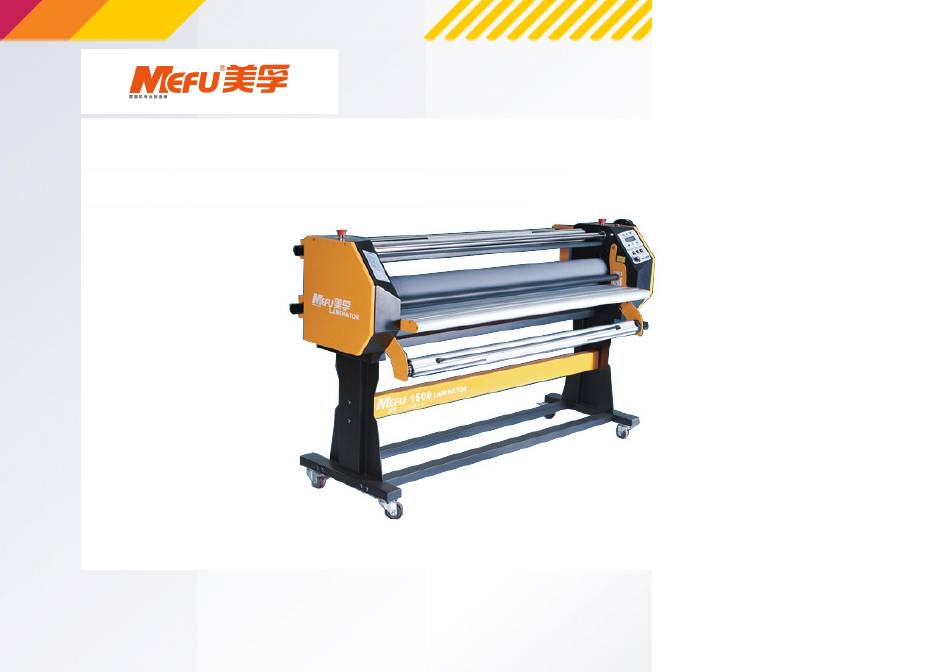

- Page 1 Laminate Your Value Single-side Hot and Cold laminator MF1600-F1...
-
Page 2: Table Of Contents
Laminate Your Value General information Table of contents General information Summary MF1600-F1 under MEFU is a 1.52m/60'' single-side hot and cold laminator, which is Warning symbols designed as an inexpensive option for a wide range application. Safety Installation, assembly and dismantling... -
Page 3: Warning Symbols
Laminate Your Value Summary Warning symbols Heating indictor To know clearly about this manual for using safely with laminator, Cold lamination Emergency stop you need to be familiar with the waring symbols in this manual. Prepare lamination indicator for top roller roller indicator for top roller Hot lamination indicator... -
Page 4: Safety
Laminate Your Value Safety Emergency situations In order to make a full understanding of the machine, please read this manual carefully before operation. Take care when operating the machine, especially if more In the event of an emergency, Press the emergency stop button to stop the laminator in an than one operator is using it. -
Page 5: Installation, Assembly And Dismantling
Installation, assembly and dismantling Before use The MEFU Laminator should be assembled and used in a clean room with a Check the wheelwork (at a regular time), clean and lubricate. normal room temperature and normal humidity levels. The work place should be dry and ventilated. -
Page 6: Operation
Laminate Your Value Operation 1. Turn over the working table for laminating. plug 2. Install the foot switch in the power. 4. Lift up the roller by turning the hand wheel 3.Place the roll of cold film and paper tube to the upper rolls (film roll and backing sheet roll), place the roll of clockwise. - Page 7 Laminate Your Value 5. When you get the right to the edge, 6. Using Hot/Cold lamination switch, pre-heating 8. Put down the roll to 7. Feed the graphic slightly put the film thought underneath the for the upper roller. Press SET button, heat the upper keep the feeding graphic into the rollers.
-
Page 8: Maintenance
Laminate Your Value Maintenance Every day ·Make sure that the machine is not held any hard stuff and the roller is not damaged. ·check the buttons on the machine Once a week ·clean the machine Once a month ·clean and lubricate the wheelwork. 11. -
Page 9: Troubleshooting
You should first try contacting a technician through the dealer where you bought your Laminator. (If none of this helps, please contact a technician) If this is not possible, contact MEFU Technical Service 1. Check power supply or emergency button. -
Page 10: Technical Specification
Laminate Your Value Technical specification MF1600-F1 Model MF1100-F1 MF1400-F1 MF1600-F1+ MF1700-F1 Max width 1100mm 1370mm 1520mm 1620mm Speed Up to 7m/min Up to 7m/min Up to 7m/min Up to 7m/min Laminating type Hot and Cold Hot and Cold Hot and Cold Hot and Cold Heating method Infrared heating... - Page 11 Laminate Your Value ---------- Professional Manufacturer ---------- MEFU Laminator is manufactured by CHINA LaoYaChen Village, HuiJi District, ZhengZhou City, HeNan Province, China ·Tel: +0086-15890020566 ·E-mail/MSN: mefu-ex@hotmail.com ·Skype:mefu-ex www.mefuchina.com...
