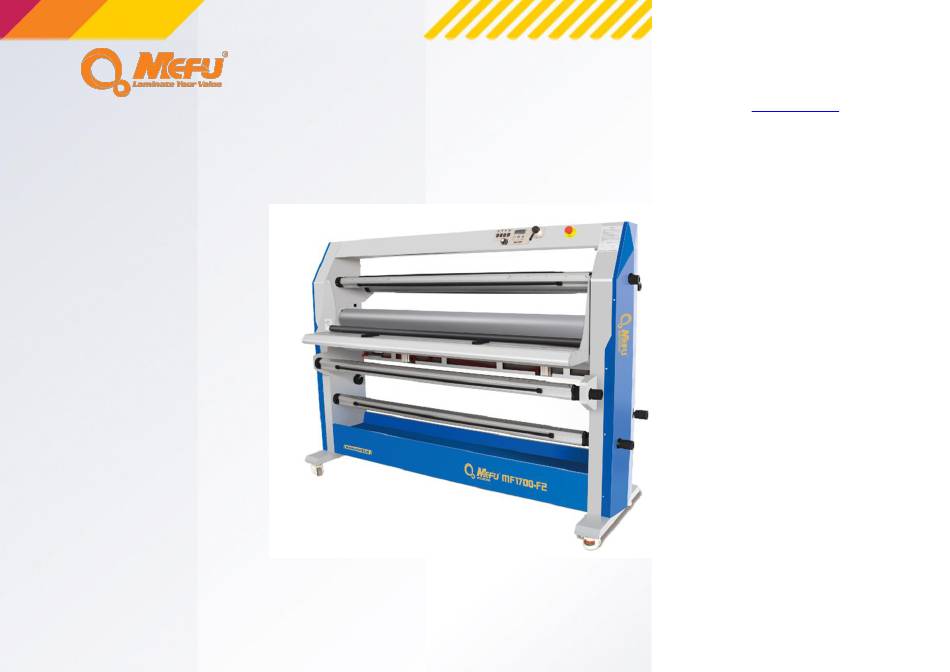

- Page 1 Laminate Your Value www.mefuchina.com Dual or Top Heated Hot Laminator MF1700-F2...
-
Page 2: Table Of Contents
Contents General Information General Information Summary This Full-auto Dual Heated or Top Heated Hot and Cold Laminator(Optional Cutter) under MEFU Warning Symbols has a wide range of application, specially for signage and Graphic industries. Capable of 15 meter Safety per minute lamination utilizing cold or hot laminating films with low or high heating for Installation and Notice single-side or double-side lamination, also equipped with optional cutter, save a lot cost &... -
Page 3: Warning Symbols
Laminate Your Value www.mefuchina.com Panel Warning Symbols To know clearly about this manual for using safely with flatbed, you need to be familiar with the warning symbols in this manual. About Installation, please Read this manual contact a technician... -
Page 4: Safety
Laminate Your Value www.mefuchina.com Safety In order to make a full understanding of the machine, please read this manual Emergency situations carefully before operation. Take care when operating the machine, especially if In the event of an emergency, Press the emergency stop button to more than one operator is using it. -
Page 5: Installation And Notice
Laminate Your Value www.mefuchina.com Installation and Notice The MEFU Laminator should be assembled and used in a clean room with a Before use normal room temperature and normal humidity levels. The work place Check the chains and gears (at a regular time), clean and lubricate. -
Page 6: Operation
Laminate Your Value www.mefuchina.com Operation 1. Connect the air compressor to 5. Place the rolls of cold film and 6. Feeding roll and finish product roll, 2. Switch on the air compressor and measure them straightly with scale air inlet of Oil-water Separator. paper tube to the upper and lower to aerate. - Page 7 Laminate Your Value www.mefuchina.com 9. When you get the right to the edge, put the film with adhesive thought underneath the roller to back working table, stick to the other paper tube, as shown in the picture. 13. Feed the graphic slightly 12.
- Page 8 Laminate Your Value www.mefuchina.com 16. Using Air knob, turn left to 20. Using Hot/Cold lamination switch, 17. Install cutters align blank 21. Using Hot/Cold lamination switch, lift down the upper roller, then pre-heating for the upper roller. Press SET pre-heating for the lower roller. turn to the Neutral position.
-
Page 9: Maintenance
Laminate Your Value www.mefuchina.com Maintenance Every day ·Make sure that the machine is not held any hard stuff and the roller is not damaged. ·Check the buttons on the machine. Once a week ·Clean the machine. Once a month ·Clean and lubricate the chains and gears. ·Check the power supply and the foot switch to prevent leakage. -
Page 10: Troubleshooting
MEFU Laminator. The roller can not run motor shaft If this is not possible, contact MEFU Technical Service 3. If Motor or speed controller breakdown, Just Phone: +00 86 15890020566 replace the motor or the speed controller. - Page 11 Laminate Your Value www.mefuchina.com Technical Specification Model MF1700-F2 Max width 1630mm Speed Up to 15m/min Laminating type Hot and Cold Heating method Heated Infrared Diameter of upper roller 130mm Max thickness 28mm Warm up time 10-15min Recommended temp range 40°C-50°C( for cold lamination), 90°C-100°C( for hot lamination)
- Page 12 Laminate Your Value www.mefuchina.com ---------- Laminator, Cutter, Film ---------- MEFU INDUSTRIAL LIMITED Ma Zhai Industrial Park, Er Qi District, Zheng Zhou City, He Nan Province, China ·Tel: +86-15890020566 ·E-mail: yang@mefuchina.com ·Skype:mefu-ex www.mefuchina.com...
