Summary of Contents for Mefu MF1600-M1

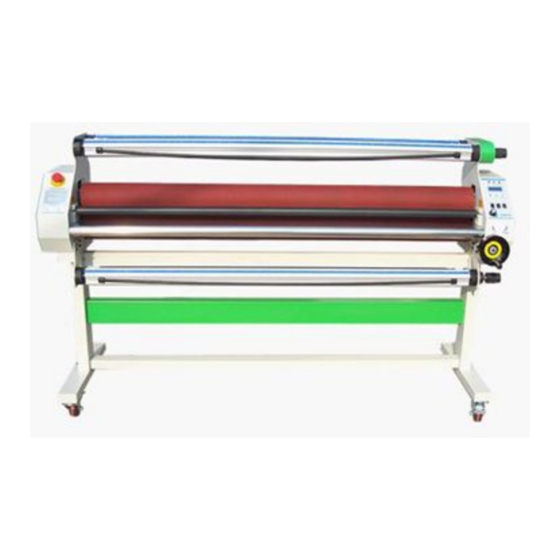

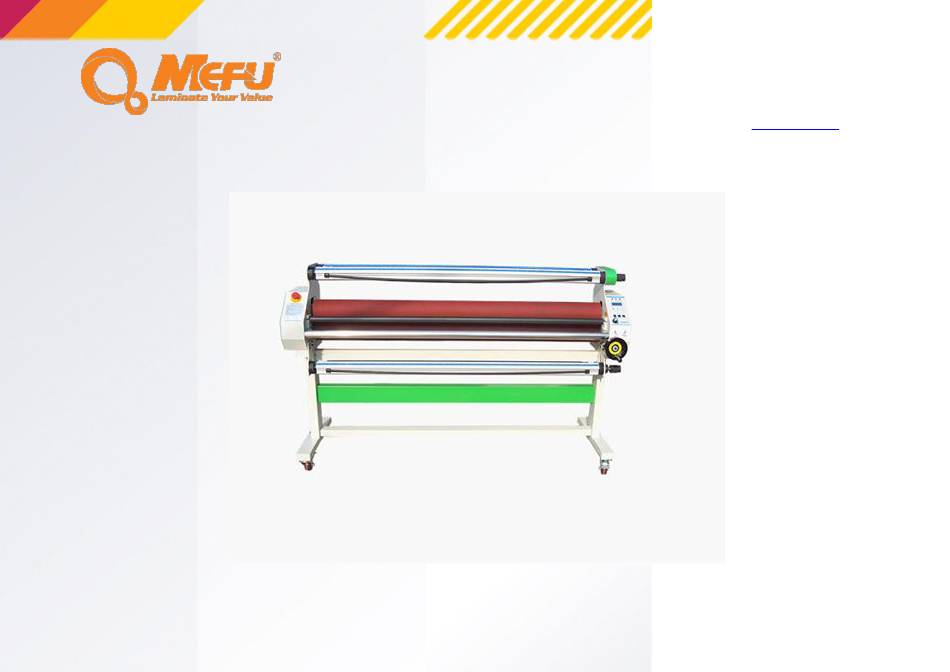

- Page 1 Laminate Your Value www.mefuchina.com Heat Assist cold laminator MF1600-M1...
-
Page 2: Table Of Contents
ISO quality rubber roller and anti-tilt system to make it more accurate Warning Symbols and faster during lamination. Safety MF1600-M1 is a 1.52m/60in full auto heat-assist cold laminator designed as an Installation and Notice inexpensive option for post printers.Heat-assist can absolutely avoid air bubbles Operation and snow points for cold weather. -
Page 3: Summary
Laminate Your Value www.mefuchina.com Summary Warning Symbols Cold lamination indicator Hot lamination indicator roller To know clearly about this manual for using safely with flatbed, you for top roller for top roller need to be familiar with the warning symbols in this manual. Prepare lamination indicator for top roller... -
Page 4: Safety
Laminate Your Value www.mefuchina.com Safety In order to make a full understanding of the machine, please read this manual Emergency situations carefully before operation. Take care when operating the machine, especially if more than one operator is using it. In the event of an emergency, Press the emergency stop button to stop the laminator in an emergency. -
Page 5: Installation And Notice
Installation and Notice Before use The MEFU Laminator should be assembled and used in a clean room with a normal room temperature and normal humidity levels. The work place Check the chains and gears (at a regular time), clean and lubricate. -
Page 6: Operation
Laminate Your Value www.mefuchina.com Operation 1. Install the foot switch and 2. Place the roll of cold film and paper tube to the upper rolls (film roll and release liner roll), plug in the power. place the roll of graphic and paper tube to the the lower rolls (feeding roll and finish product roll), and measure them straightly with scale on the rolls. - Page 7 Laminate Your Value www.mefuchina.com 7. Lift down the roller again the 5. Feed the graphic slightly into 6. Put down the roll to keep graphic, make sure that the graphic the rollers. the feeding graphic steady. is pressed against the roller before starting application.
-
Page 8: Maintenance
Laminate Your Value www.mefuchina.com Maintenance Every day ·Make sure that the machine is not held any hard stuff and the roller is not damaged. ·check the buttons on the machine Once a week ·clean the machine Once a month ·clean and lubricate the chains and gears. 10. -
Page 9: Repairs
The roller won’t move up and down 1.Reset the emergency stop button. your MEFU Laminator. 2.Reset the controls If this is not possible, contact MEFU Technical Service (If none of this helps, please contact a Phone: +00 86 15890020566 technician) 1. -
Page 10: Technical Specification
Laminate Your Value www.mefuchina.com Technical Specification Model MF1600-M1 MF1700-M1 Max width 1520mm 1630mm Speed Up to 6m/min Up to 6m/min Laminating type Cold ( heat-assist) Cold ( heat-assist) Heating method Heated top roller Heated top roller Diameter of upper roller... - Page 11 Laminate Your Value www.mefuchina.com ---------- Laminator, Cutter, Film ---------- MEFU INDUSTRIAL LIMITED Ma Zhai Industrial Park, Er Qi District, Zheng Zhou City, He Nan Province, China ·Tel: +86-158 9002 0566 ·E-mail: yang@mefuchina.com ·Skype:mefu-ex www.mefuchina.com...
