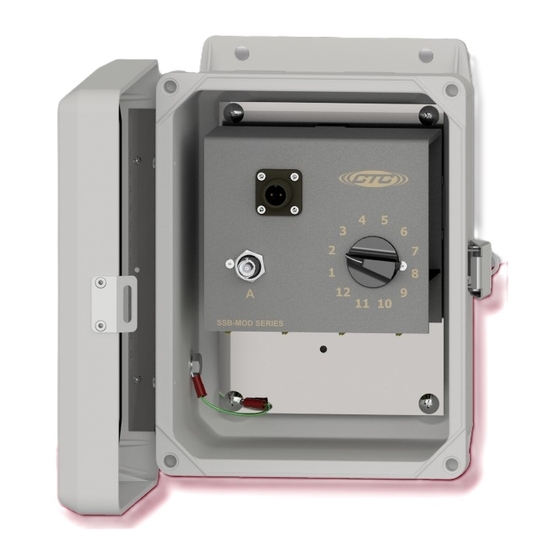

. SSB1000 Series Modular Switch Box Overview: Four to 12 sensor inputs (four to 12 measurement channel outputs), fiberglass enclosure CTC modular switch box solutions allow for the monitoring of remotely-mounted vibration sensors, which would otherwise be restricted to human access due to safety considerations .
Mounting Instructions Note: If you have purchased a modular switch box without cable entries provided, you should add your own entry prior to mounting the modular switch box . CTC does not recommend putting holes in the top of the enclosure due to access and moisture concerns .
Conduit Entry If you are running conduit to your enclosure, ensure the conduit cable entry is located at the bottom of the enclosure when mounted . Note: To ensure moisture will not flow into the enclosure, a hole should be drilled at the lowest point in the conduit to provide drainage for any moisture .
Grounding Ensure the shield ground wire on the SSB1000 Series modular switch box is grounded to earth ground . A. Mounting to Earth Ground When mounting SSB1000 Series modular switch boxes to earth ground (such as an I-Beam), mount the shield ground wire using a mounting bolt through one of the mounting brackets on the enclosure .
B. Mounting to Non-Grounded Structure When mounting the modular switch box to a non-grounded structure, ensure the shield ground wire or customer-supplied ground wire is tied to a source of earth ground . Figure 6. Ground Wire Placement Sensor Installation Installation of Sensors/Signal Input Cable Feed blunt-cut end through the cable entry at the bottom of the enclosure .
Page 9
Figure 8. Bottom View Figure 7. Front View Strip outer jacket of cable back 1¼ in . and remove all of the shielding . Separate the internal wires from the shield and twist the shield . Strip red and black insulation back ¼ in . Shield / Drain Wire Figure 9.
Page 10
Inputs Inputs Inputs Inputs ENSIONS E SHEET Sensor Inputs Red = Signal/Power (+) Sensor Inputs Black = Common (-) Red = Signal/Power (+) Grey = Shield (Ground) Black = Common (-) Grey = Shield (Ground) Figure 10. Connecting Cables to Modular Switch Box (SSB1000) Inputs Inputs Inputs...
Post-Installation Testing The TM1018 Accelerometer Verification Meter can be used to verify cable conductivity, sensor location and proper wiring connections . The Verification Meter will indicate if the sensor, cable and/or junction box is in working condition . It will also confirm bias voltage of the accelerometer, which will inform you of the operation of the internal accelerometer amplifier .
Page 12
The following LED Readout indicates the circuit integrity: Green LED: Normal . Indicates proper connection and an output bias will be given, indicating the health of the sensor (4 – 16 V indicates a healthy accelerometer) . Yellow LED: Open Circuit . Indicates one of the following: a .
Page 13
Warranty & Refund Warranty All CTC products are backed by our unconditional lifetime warranty . If any CTC product should ever fail, we will repair or replace it at no charge . Refund All stock products can be returned for a 25% restocking fee if returned in new condition within 90 days of shipment .
