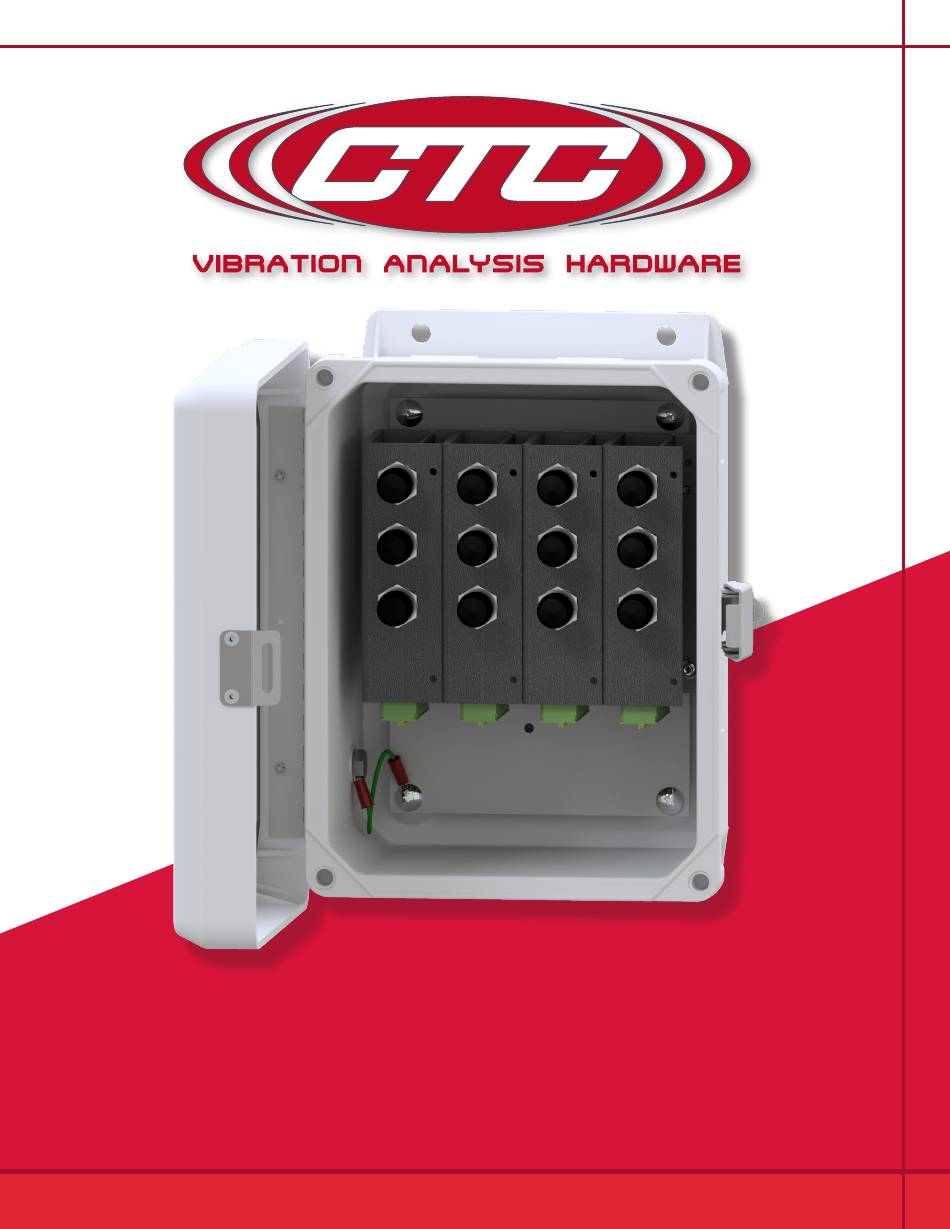

Introduction CTC modular MAXX box solutions allow for the monitoring of remotely mounted vibration sensors, which would otherwise be restricted to human access due to safety considerations . MMX1000 Series Modular MAXX Box Overview: 3-12 channel boxes, fiberglass enclosure The MMX1000 3-12 channel enclosure is a common cable termination point for bringing in a variety of sensor applications including single axis, biaxial, triaxial, and dual output (vib/temp) sensors for routine data collection with portable data collectors .
Mounting Instructions Note: if you have purchased a modular MAXX box without cable entries provided, you should add your own entry prior to mounting the modular MAXX box . CTC does not recommend putting holes in the top of the enclosure due to access and moisture concerns .
Conduit Entry If you are running conduit to your enclosure, ensure the conduit cable entry enters from the bottom of the enclosure when mounted . Note: To ensure moisture will not flow into the enclosure, a hole should be drilled at the lowest point in the conduit to provide drainage for any moisture .
Grounding Ensure the shield ground wire on the MMX1000 Series Modular MAXX box is grounded to earth ground . A. Mounting to Earth Ground When mounting MMX1000 Series Modular MAXX boxes to earth ground (such as an I-Beam), mount the shield ground wire using a mounting bolt through one of the mounting brackets on the enclosure .
B. Mounting to non-grounded structure When mounting the enclosure to a non-grounded structure, ensure the shield ground wire or customer supplied ground wire is tied to a source of earth ground . Figure 6. Ground Wire Placement Sensor Installation Installation of sensors/signal input cable Feed blunt end through the cable entry at the bottom of the enclosure .
Page 9
Figure 8. Bottom View Figure 7. Front View Strip outer jacket of cable back 1¼ in . and remove all of the shielding . Separate the internal wires from the shield and twist the shield . Strip red and black insulation back ¼ in . (-) Common Shield/Drain wire (+) Signal/Power...
Page 10
Inputs Inputs Inputs Inputs Sensor Inputs Sensor Inputs Red = Positive Vibration Red = Positive Vibration Black = Common Black = Common Grey = Shield (Ground) Grey = Shield (Ground) Figure 10. Connecting Cables to Termination box Insert plug into the appropriate PC board connector and double check to ensure that the cable is going to the correct channel .
Post Installation Testing The TM1018 Accelerometer Verification Meter can be used to verify cable conductivity, sensor location and proper wiring connections . The Verification Meter will indicate if the sensor, cable and/or junction box is in working condition . It will also confirm bias voltage of the accelerometer, which will inform you of the operation of the internal accelerometer amplifier .
Page 12
The following LED Readout indicates the circuit integrity: Green LED: Normal . Indicates proper connection and an output bias will be given, indicating the health of the sensor (4 – 16 V indicates a healthy accelerometer) . Yellow LED: Open Circuit . Indicates one of the following: a .
Page 13
Warranty & Refund Warranty All CTC products are backed by our unconditional lifetime warranty . If any CTC product should ever fail, we will repair or replace it at no charge . Refund All stock products qualify for a full refund if returned in new condition within 90 days of shipment .
