CONTENTS
Specification
Important safety information
Installation
Using cooker for the first time
Using the Gas hob burners
Using the Gas Oven
Using the electric oven and grill
Using the mechanical timer
Using the Turnspit
Tips for oven cooking
Cooking Time chart
Maintenance & Cleaning
Trouble Shooting
Guarantee and Service
Consumer Service Center

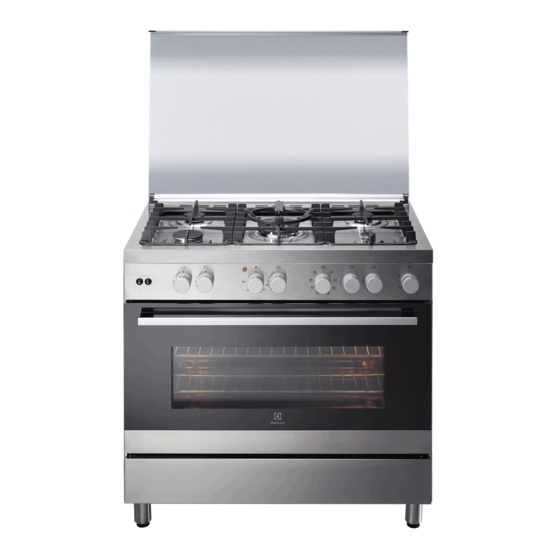

SPECIFICATION
ELECTROLUX
90CM
MODEL
COLOUR
STAINLESS
EKG9686X
STEEL
STAINLESS
EKG9688X
STEEL
STAINLESS
EKM9689X
STEEL
STAINLESS
EKM9682X
STEEL
BURNER
NO.GAS
POWER
BURNER
(kW)
5
4.5+3+2x2+1
5
4.5+2x2+1+ 3
5
4.5+3+2x2+1
4
3.4+2x2+1
1
1
2
3
7
10
12
14
16
17
18
20
21
22
23
24
OVEN TYPE
62L GAS + GAS
GRILL
130L GAS + GAS
GRILL
130L ELECTRIC
62L GAS + GAS
GRILL
Advertisement
Related Manuals for Electrolux EKM9689X
Summary of Contents for Electrolux EKM9689X
- Page 1 COLOUR OVEN TYPE BURNER (kW) STAINLESS 62L GAS + GAS EKG9686X 4.5+3+2x2+1 STEEL GRILL STAINLESS 130L GAS + GAS EKG9688X 4.5+2x2+1+ 3 STEEL GRILL 90CM STAINLESS EKM9689X 4.5+3+2x2+1 130L ELECTRIC STEEL STAINLESS 62L GAS + GAS EKM9682X 3.4+2x2+1 GRILL STEEL...
- Page 2 900W x 550D x 860H (EKM9682X) Weight Net / Gross: EKG9686X: 62Kg / 68Kg EKG9688X: 75Kg / 81Kg EKM9689X: 72Kg / 78Kg EKM9682X: 60Kg / 66Kg Oven Capacity Gross: 130Litre/ 62Litre (with gas bottle compartment) Heat Input Gas Burners: Wok Burner 4.5 kW...
- Page 3 INSTALLATION The work on installation must be carried out by competent and qualified installers according to the local regulation in force. Any modifications to the domestic electrical main which maybe necessary for the installation of the appliance should be carried out only by a qualified technician. ...
- Page 4 Place the cooker on a piece of polystyrene packaging or similar exposing the base for fitting the feet. Fit the 4 feet by screwing them tightly into the base as shown below. Level the cooker by screwing the feet in or out. To prevent damaging the adjustable feet, ensure the cooker is always lifted by two people.
- Page 5 INSTALLATION ENVIRONMENT WARNING - This unit can be installed and can work only in constantly ventilated rooms, according to the national rules in force. In order for the gas cooker to work properly, it is necessary that sufficient air for gas combustion can flow naturally into the room.
- Page 6 The protection fuse and the domestic wiring are suitable to carry the total electric load of the cooker. The electricity supply network (mains) has an efficient earth connecting according to the established rules and existing regulations. The cooker wire is long enough to reach the socket from where your cooker is situated.
- Page 7 The appliance will become hot during operation and can remain hot for a long time after being switched off. Supervise children and pay attention that they do not touch surfaces or remain in the vicinity of the appliance when in use or when not completely cooled. WARNING - Ensure the anti-tip chain is installed correctly to avoid the possibility of the cooker falling over and injuring children.
- Page 8 DURING USE This product is intended for the cooking of food and must not be used for other purposes. Unstable or deformed pans should not be placed on the burners or hot plates in order to avoid accidents caused by spill over. Particular care should be taken when cooking with oil or fat.
- Page 9 cook to avoid unpleasant smoke and also the possibility of these substances catching fire. Ensure that air can circulate around the gas appliance. Poor ventilation can result in lack of oxygen and extinguish the flame. The use of a gas cooking appliance produces heat and humidity in the room where it is installed.
- Page 10 The appliance is heavy, move it carefully. To facilitate ignition, light the burners before placing pans on the grid. Check that the flame is regular. Always lower the flame or turn it off before removing the pan. ...
- Page 11 No gas supply Maximum gas supply Minimum gas supply Ignition of the hob gas burners To light up the burner, keep pushing the ignition button as indicated by Then push in the knob and turn it anti-clockwise to maximum, and hold it for 3 to 5 seconds.
- Page 12 USING THE GAS OVEN Manual ignition of the Oven burner Open the oven door, then push and turn the oven knob in an anti-clockwise direction to the maximum position, introduce a small flame or spark lighter to the small ignition hole located in the front of the oven burner cover on the bottom of your oven.
- Page 13 IMPOTRANT SAFETY: Apply knob protection plate when using gas grill burner. (Knob protection plate is stored at the compartment.) After a few minutes check the temperature and adjust the grill control if necessary to obtain the required level. IMPORTANT SAFETY: In the event the flame in the oven extinguishes by itself, please take the following steps below: 1) SHUT OFF THE OVEN CONTROL KNOBON GAS OVEN MODEL ALSO...
- Page 14 The oven light stays lit in all selector positions. EKM9689X Oven light The oven light and general pilot light come on and will remain on as long as the oven is in use.
- Page 15 Grill This cooking mode is used for grilling small amounts of food such as steak, chops, sausages and fish (low energy consumption). Heat comes from the top grill element which directs radiant heat onto the food. Fast Grill Heat comes from 2 powerful top grill elements which direct radiant heat onto the food. Used for grilling large quantities of food and cooks faster than the normal grill.
- Page 16 NOTE – Before placing food into the oven for grilling, it is advisable to preheat the grill for at least 10 minutes) USING THE OVEN LIGHT For gas ovens the light is controlled by a push switch on the control panel. ...
- Page 17 When you use the turnspit, you need to screw out the forks of the rotisserie spit, and take out the insulating handle. Then put the food on the forked branch and use the forks to clamp the food. After finished using the turnspit, please clear with detergent and dry with a cloth.
- Page 18 TIPS FOR OVEN COOKING For baking cakes: Pre-heat the oven for at least 10minutes before use. Do not open the oven door when baking. The jet of cold air will block the raising block the raising process of some cakes, pastries and soufflé s. ...
- Page 19 For cooking fish: Cook small fish from start to finish at a high temperature. Cook medium-sized fish initially at a high temperature and then gradually lower the temperature. Cook large fish at a moderate temperature from start to finish. ...
- Page 20 COOKING TIMES Cooking times can vary according to the type of food, its density and its size. It is advisable to watch when cooking for the first time and check results since when preparing the same dishes, in the same conditions, similar results are obtained. ELECTRIC GAS OVEN CONVECTION...
- Page 21 MAINTENANCE & CLEANING Before each operation, disconnect the unit by unplugging the socket and gas hose. Oven lamp replacement Disconnect the power supply to the appliance, unscrew the lamp and replace it with a high temperature fitting (300℃) with the following specifications:- Voltage: 220-240V, 50-60Hz) Power: 23W Convection: E14...
- Page 22 Cleaning the Door and Glass Hob Cover Clean the oven door and glass lid only with warm water, and avoid the use of rough cloths or abrasive substance. Cleaning the Oven Clean the oven cavity carefully after use when it is still warm. ...
- Page 23 GUARANTEE AND SERVICE We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: ...
- Page 24 CONNSUMER CARE CENTER Consumer Care Tel : (+66 2) 725 9000 Consumer Care Center Tel: 1300-88-11-22 Electrolux Thailand Co., Ltd. Electrolux Home Appliances Sdn. Bhd. Electrolux Building 14th Floor Corporate Office Address: Unit T2-7, 7th Floor, 1910 New Phetchaburi Road, Tower 2 , Jaya33 Hyper office, No.
