INSTRUCTIONS FOR USE
BEDIENUNGSANLEITUNG

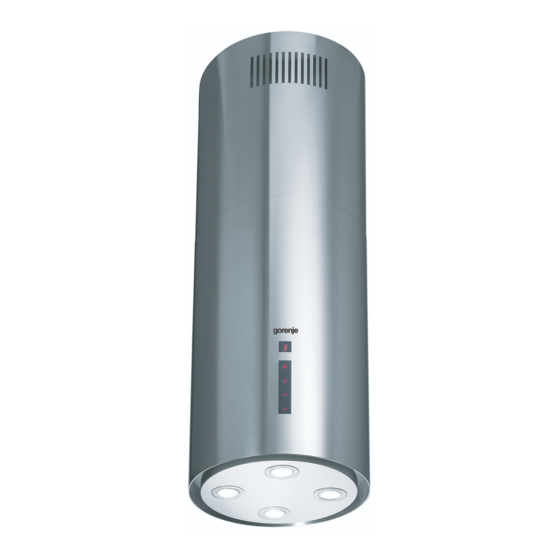

Kitchen extractor hood
Kaminhaube
Typ:
IDR 4540 E
IDR 4545 E

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDR 4540 E and is the answer not in the manual?

Questions and answers

Summary of Contents for Gorenje IDR 4540 E

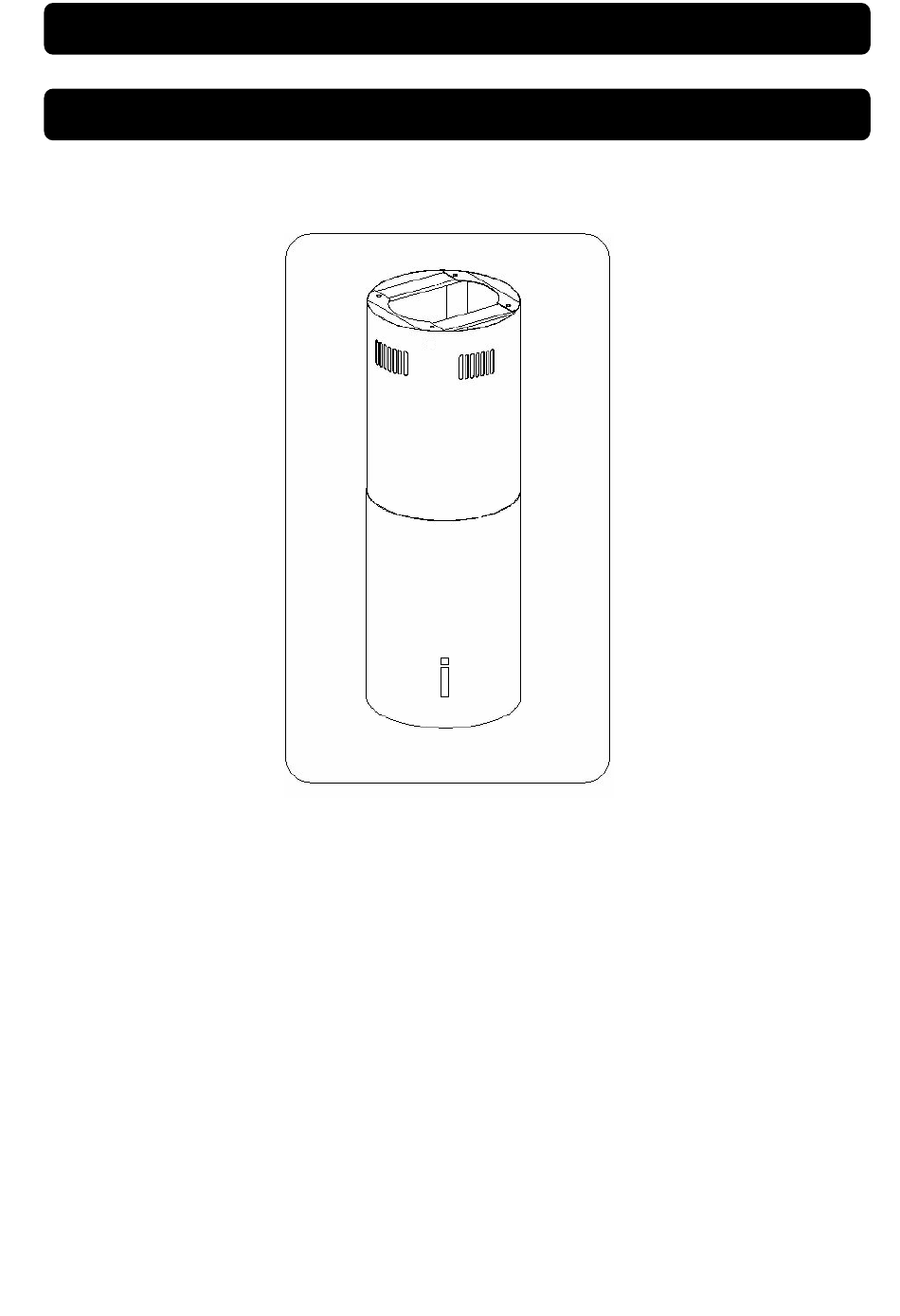

  • Page 1 INSTRUCTIONS FOR USE BEDIENUNGSANLEITUNG Kitchen extractor hood Kaminhaube Typ: IDR 4540 E IDR 4545 E...
  • Page 2: Table Of Contents

    Mit dem Kauf dieser Haube – IDR 4540 E, IDR 4545 E – haben Sie eine moderne und hochwertige Haube der neuesten Generation erworben. Diese Haube fügt sich ideal in jedes Küchenumfeld ein. Klares Design, bedienerfreundlicher Komfort, Zuverlässigkeit und pflegeleichte Materialien zeichnen diese Hauben aus.
  • Page 3: Ausrüstung

    AC 230V 50Hz Anzahl der Ventilatormotoren Halogebeleuchtung Halogenlampen 4x20W / 4 x 3W Anzahl der Fettfilter Geschwindigkeitsstufen Fur IDR 4540 E - 4 / Fur IDR 4545 E - 3 Ø 38 Breite [cm] Tiefe [cm] Höhe [cm] Luftaustritt [ø mm] 150 oder 120 Leistungsfähigkeit [m...
  • Page 4: Montage

    V. Montage Um die Abzugshaube zu montieren, gehen Sie bitte wie folgt vor: Montageplatte befestigen. Die Abzugshaube an den Belüftungskanal anschließen (falls nötig). Obere Teleskop-Kamin-Blende anbringen. Gerüst der Abzugshaube anbringen. Die Abzugshaube an das Stromnetz anschließen. 1. Montage der Platte Auf der Decke die Mitte des Kochfeldes markieren, Montageplatte von der oberen Teleskopkamin-Blende demontieren (Abb.
  • Page 5: Bedienung Und Wartung

    Beleuchtung Ein/Aus 2.2. Programmfunktion Timer: Bei der Abzugshaube IDR 4540 E, IDR 4545 E, haben Sie Möglichkeit die automatische Ausschaltfunktion des Lüfters für eine Stunde in 10-minutigen Abständen zu programmieren. Der Timer wird durch Betätigung der „T”-Taste auf gewünschter Leistungsstufe der Abzugshaube eingeschaltet. LED- Anzeiger blinkt, ein Punkt informiert, dass das Gerät programmiert werden kann.
  • Page 6: Wartung

    3. Wartung Durch die regelmäßige Wartung und Reinigung ist ein guter und fehlerfreier Betrieb und eine optimale Lebensdauer des Gerätes gewährleistet. Beim Austausch der Fett- und Kohleaktivfilter sind besonders die Hinweise des Herstellers zu beachten. 3.1 Alufettfilter 1. Reinigung. Beim Normalbetrieb sollten die Fettfilter alle zwei Monate in der Geschirrspülmaschine oder in einem Bad aus sanftem Reinigungsmittel oder flüssiger Seife gereinigt werden.
  • Page 7 You are now a user of the newest generation kitchen extractor hood of IDR 4540 E, IDR 4545 E type. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.
  • Page 8: Components

    AC 230V 50Hz Fan motor Lighting Halogenlampen 4x20W / 4 x 3W Number of grease filters Fan speeds For IDR 4540 E - 4 / For IDR 4545 E - 3 Ø 38 Width [cm] Depth [cm] Height [cm] Outlet [ø mm]...
  • Page 9: Installation

    V. Installation To install the hood proceed as follows: Install the celing hanger [C] Hang the hood body [A] on the hanger [C] Connect the hood to the ventilation duct. Connect the hood to the power network 1. Installation of the ceiling plate Indicate the center of the cooker plate on the ceiling, Unscrew the ceiling installation plate from the top decorative cover (Fig.
  • Page 10: Operational Safety

    ” – lighting on / off. 2.2. Program function Timer function: IDR 4540 E, IDR 4545 E kitchen extractor hood is equipped with the option of programming automatic switch-off of the hood fan in 10-minute intervals, up to maximum delay of 60 minutes.
  • Page 11: Metal Grease Filters

    3.1 Metal grease filters 1. Cleaning. Grease filters should be cleaned every two months during normal operation of the hood, in a dishwasher or manually, using mild detergent or liquid soap. 2. Replacement To dismantle the filter proceed as follows: a) remove the bottom cover by releasing the lock catch, b) remove the metal grease filter 3.2.

This manual is also suitable for:

Idr 4545
