Installation and Assembly:

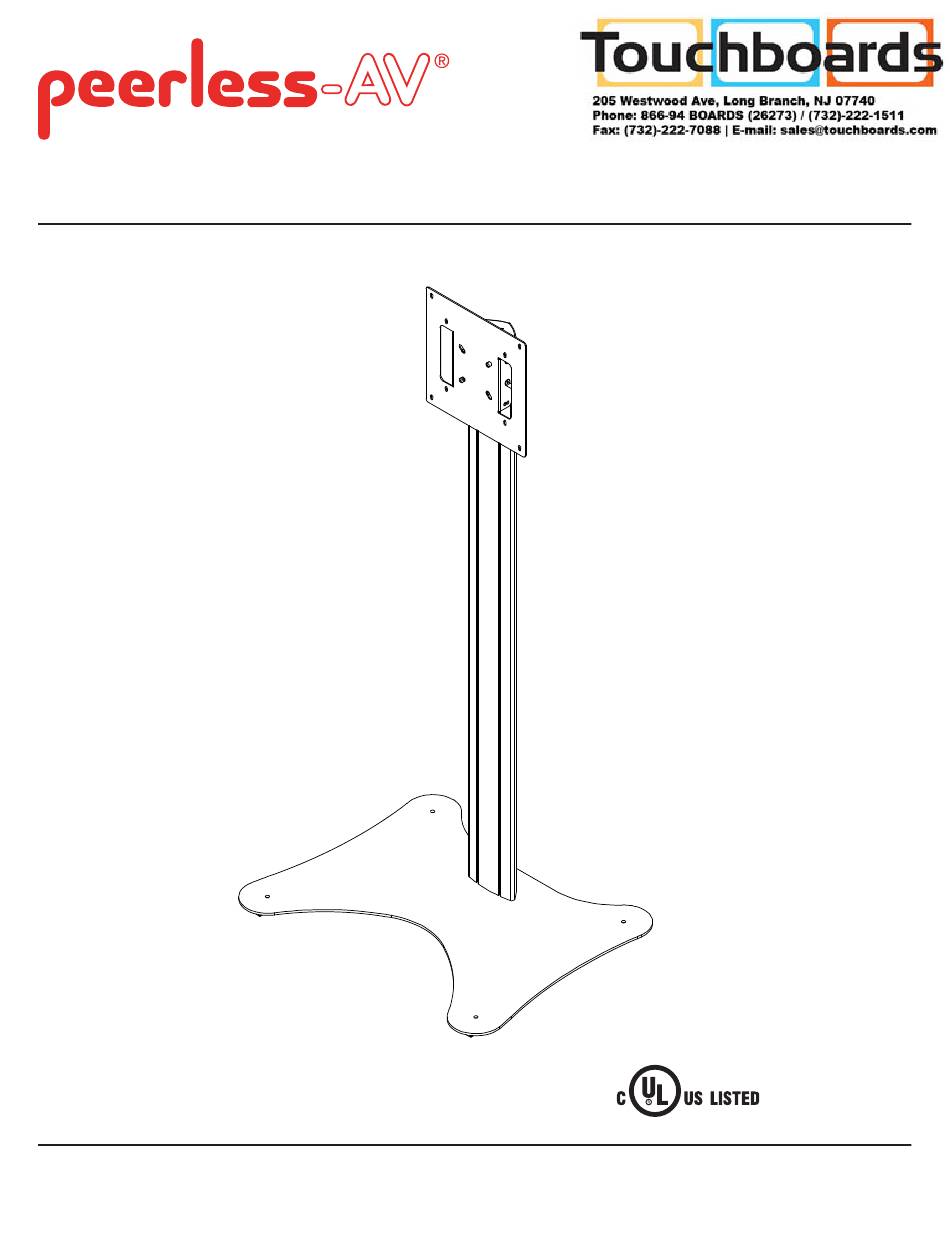

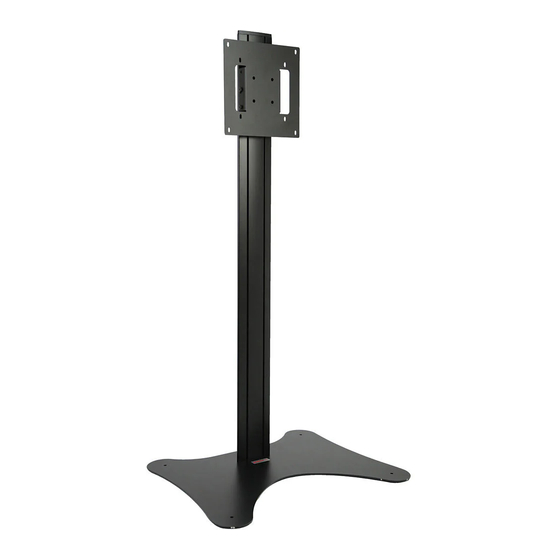

Display Stand for 32" - 60" Flat Panel Displays
Models: SS560F
Suitable For Institutional Use
Max UL Load Capacity:
150 lb (68 kg)
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com
ISSUED: 08-05-11 SHEET #: 009-9054-5 05-07-2015
Advertisement
Table of Contents
Related Manuals for peerless-AV SS560F
Summary of Contents for peerless-AV SS560F
- Page 1 Installation and Assembly: Display Stand for 32" - 60" Flat Panel Displays Models: SS560F Suitable For Institutional Use Max UL Load Capacity: 150 lb (68 kg) 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com...
-
Page 2: Tools Needed For Assembly
NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor. -
Page 3: Parts List
Before you begin, make sure all parts shown are included with your product. Parts List SS560F Description Qty. Part # A base 009-1407 B upright 009-1413 C display mounting bracket 201-1156 D adapter plate 009-1599 E top cover 590-1210 F 3/8-16 x 2.5" button socket cap screw... - Page 4 Attach upright (B) to base (A) with three 3/8-16 x 2.5" socket screws (F) and three M10 washers (K) as shown in fi gure 1.1. Tighten screws using 7/32" allen wrench (J). Run cords through upright (B) using cord management holes as shown in fi...
- Page 5 Snap top cover (E) onto upright (B). Insert two 1/4-20 x 12 mm screws (H) into display mounting bracket (C), leaving 1/8" of exposed thread as shown in fi gure 5.1 and detail 2. fi g. 5.1 1/8" DETAIL 2 5 of 9 ISSUED: 08-05-11 SHEET #: 009-9054-5 05-07-2015...
-
Page 6: Installing Adapter Plate
Installing Adapter Plate WARNING • Tighten screws so adapter plate is fi rmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque. •... - Page 7 Attaching Display using VESA 100, 200 or VESA 300 Mounting Pattern WARNING • If screws don't get three complete turns in the display inserts or if screws bottom out and adapter plate is still not tightly secured, damage may occur to display or product may fail. For Flat Back Display Select the screws from the baffl...
-
Page 8: Service And Maintenance
Attach adapter plate (D) to display mounting bracket (C). Insert two 1/4-20 x 12 mm screws (H) into holes indicated below for desired display orientation. Tighten all screws using 4 mm allen wrench (I). No Tilt 2° Backward Tilt 5° Forward Tilt Service and Maintenance This product has no user serviceable parts. -
Page 9: Limited Five-Year Warranty
LIMITED FIVE-YEAR WARRANTY Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless® products will be free from defects in material and workmanship, under normal use, for a period of fi ve years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product’s manufacture). At its option, Peerless will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.
