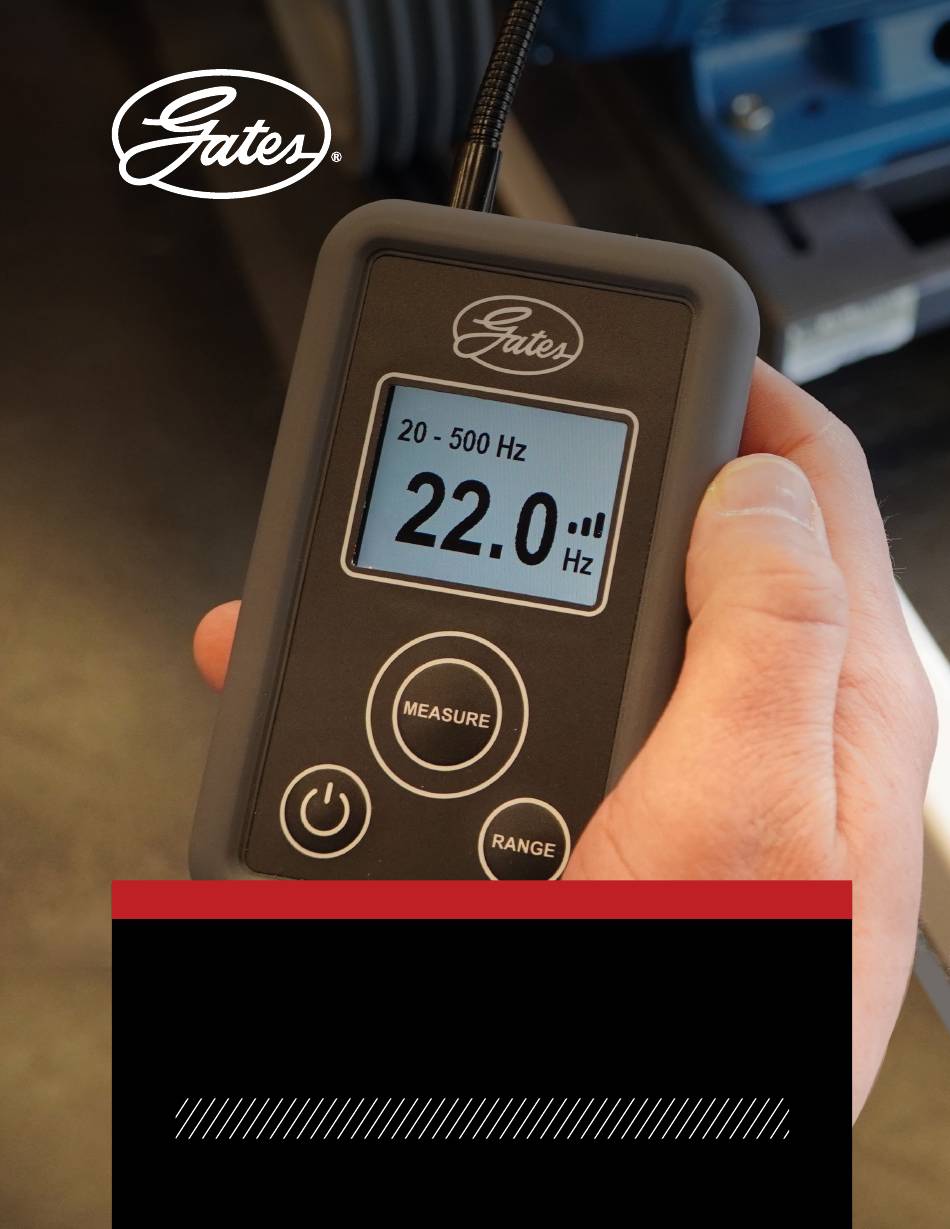

- Page 1 SONIC TENSION METER MANUAL · MODEL 350C...
-
Page 2: Table Of Contents
GATES 350C SONIC TENSION METER TABLE OF CONTENTS WARNINGS SONIC TENSION METER PARTS OPERATING INSTRUCTIONS Taking a Measurement OPERATING INSTRUCTIONS Measurement Range And ON / OFF TIPS ON USING THE SONIC TENSION METER Consistent Readings Minimum Belt Span Length Minimum Belt Tension... - Page 3 GATES 350C SONIC TENSION METER WARNINGS DO NOT leave this unit where it DO NOT use this unit outside ■ ■ will get hot, such as in a car or in during a thunderstorm, turn off direct sunlight. power and seek a safe place.
-
Page 4: Operating Instructions
TAKING A MEASUREMENT TO TAKE A BELT RESONANT FREQUENCY MEASUREMENT: Press “MEASURE”, to initiate measurement mode on the 350C Sonic Tension Meter. Position microphone head <1cm from the center of the belt span. The small holes in the microphone head should be directed towards the belt. -
Page 5: Operating Instructions
GATES 350C SONIC TENSION METER OPERATING INSTRUCTIONS MEASUREMENT RANGE AND ON/OFF BELOW DIAGRAM SHOWS THE USER INTERFACE ELEMENTS FOR CHANGING THE MEASUREMENT RANGE AND SWITCHING THE DEVICE ON/OFF. CURRENT MEASUREMENT RANGE: Range of frequencies within which the belt resonance is expected. -
Page 6: Tips On Using The Sonic Tension Meter
The following suggestions are provided to help you achieve a high level of accuracy with the Gates Sonic Tension Meter: CONSISTENT READINGS ■... -
Page 7: Windy Environment
WINDY ENVIRONMENT ■ Wind can adversely affect the ability of the meter to make a reading by creating excessive background noise. SUMMARY OF FEATURES ■ Model 350C, Product no. 7420-0350 ■ Max Frequency of 5000 Hz ■ Variable Frequency Range Filters ■... -
Page 8: Troubleshooting
METER WON’T TURN ON Consider meter repair or replacement Meter has sustained damage Gates certification / evaluation / repair service Move sensor as close as possible without interfering with Sensor is too far away from belt surface vibrating belt span... -
Page 9: Warranty
■ Gates takes no responsibility for any meters returned to ■ Meters damaged by misuses or abuse, at Gates the wrong address or without an RMA issued by a Gates discretion, are not covered by the warranty. authorized distributor. ■... - Page 10 GATES.COM ©GATES 2023...
