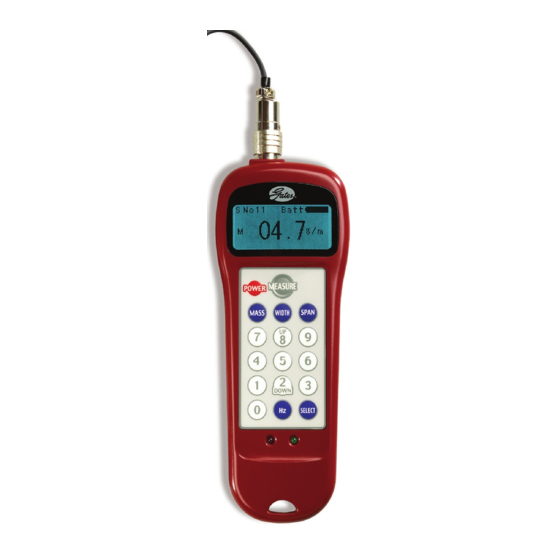

Gates Sonic 508C Manual

Belt tension meter
Hide thumbs Also See for Sonic 508C:

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
Gates Belt Tension Meter
Sonic 508C

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sonic 508C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gates Sonic 508C

Summary of Contents for Gates Sonic 508C

  • Page 1 All manuals and user guides at all-guides.com Gates Belt Tension Meter Sonic 508C...
  • Page 2 All manuals and user guides at all-guides.com What’s New?
  • Page 3 All manuals and user guides at all-guides.com SONIC 508C New box design...
  • Page 4 All manuals and user guides at all-guides.com SONIC 508C New features...
  • Page 5 SONIC 507C SONIC 508C All manuals and user guides at all-guides.com New key path color...
  • Page 6 All manuals and user guides at all-guides.com What’s in the box?
  • Page 7 All manuals and user guides at all-guides.com SONIC 508C...
  • Page 8 All manuals and user guides at all-guides.com SONIC 508C Sonic 508C - package (PN 7420-00508) + Sonic Tension meter manual + Calibration sheet...
  • Page 9 All manuals and user guides at all-guides.com SONIC 508C Sonic 508C - package (PN 7420-00508)
  • Page 10 All manuals and user guides at all-guides.com Sensors...
  • Page 11 All manuals and user guides at all-guides.com SONIC 508C Standard: flexible arm sensor (PN 7420-00206) - acoustic...
  • Page 12 All manuals and user guides at all-guides.com SONIC 508C Standard: flexible arm sensor (PN 7420-00206) - acoustic Sensor head Sensor connector ₋ Acoustic sensor ₋ 170 mm. arm length ₋ Range: 10 – 5.000 Hz...
  • Page 13 All manuals and user guides at all-guides.com SONIC 508C Optional: cord sensor (PN 7420-00204) - acoustic...
  • Page 14 All manuals and user guides at all-guides.com SONIC 508C Optional: cord sensor (PN 7420-00204) - acoustic Sensor head Sensor connector ₋ Acoustic sensor ₋ 1.000 mm. cord length ₋ Range: 10 – 5.000 Hz...
  • Page 15 All manuals and user guides at all-guides.com SONIC 508C Optional: cord sensor (PN 7420-00212) - inductive...
  • Page 16 All manuals and user guides at all-guides.com SONIC 508C Optional: cord sensor (PN 7420-00212) - inductive Sensor head Sensor connector ₋ Inductive/magnetic sensor ₋ 1.000 mm. cord length ₋ Range: 10 – 5.000 Hz ₋ 5 magnets included...
  • Page 17 All manuals and user guides at all-guides.com SONIC 508C › Magnets – Use with inductive sensor – Neodynium (NdFeB) – 9.5 mm. diameter – 1.6 mm. thickness...
  • Page 18 All manuals and user guides at all-guides.com SONIC 508C...
  • Page 19 All manuals and user guides at all-guides.com SONIC 508C...
  • Page 20 All manuals and user guides at all-guides.com SONIC 508C All sensors are compatible and can be installed on the Gates Sonic Tension meter models: Sonic 505C Sonic 507C Sonic 508C...
  • Page 21 All manuals and user guides at all-guides.com package offering...
  • Page 22 All manuals and user guides at all-guides.com SONIC 508C Sonic 508C – standard + inductive package (PN 7420-10508)
  • Page 23 All manuals and user guides at all-guides.com SONIC 508C Sonic 508C – standard + inductive package (PN 7420-10508) Inductive package Inductive cord sensor Magnets (5 pieces)

  • Page 24: Operation

    All manuals and user guides at all-guides.com Operation...
  • Page 25 All manuals and user guides at all-guides.com SONIC 508C...
  • Page 26 All manuals and user guides at all-guides.com SONIC 508C LCD Screen...
  • Page 27 All manuals and user guides at all-guides.com SONIC 508C LCD Screen Key path...
  • Page 28 All manuals and user guides at all-guides.com SONIC 508C LCD screen...
  • Page 29 All manuals and user guides at all-guides.com SONIC 508C LCD screen Storage register Frequency setting “MASS” “WIDTH” Battery level meter “SPAN”...
  • Page 30 All manuals and user guides at all-guides.com SONIC 508C LCD screen Unit weight extract “MASS” Use “Mass” key Input from 000.1 to 999.9 gr./m. Gram/meter enter factors...
  • Page 31 All manuals and user guides at all-guides.com SONIC 508C LCD screen “WIDTH” Use “Width” key Input from 000.1 to 999.9 • Synchronous: enter width in millimeter • V-belt: enter number of belts • Micro-V, Polyflex JB, PowerBand: enter number of strands...
  • Page 32 All manuals and user guides at all-guides.com SONIC 508C LCD screen “SPAN” Use “Span” key Input from 0001 to 9999 mm.
  • Page 33 All manuals and user guides at all-guides.com SONIC 508C LCD screen Frequency setting Use “Range/0” key Select frequency range using “UP/8” or “DOWN/2” button • S: standard: 10 – 600 Hz • H: high: 500 – 5.000 Hz.
  • Page 34 All manuals and user guides at all-guides.com SONIC 508C LCD screen Storage register Use “Select” key Toggle between the 40 input locations...
  • Page 35 All manuals and user guides at all-guides.com SONIC 508C Key path...
  • Page 36 All manuals and user guides at all-guides.com SONIC 508C Key path Power switch...
  • Page 37 All manuals and user guides at all-guides.com SONIC 508C Key path Belt unit weight key...
  • Page 38 All manuals and user guides at all-guides.com SONIC 508C Key path Belt width key...
  • Page 39 All manuals and user guides at all-guides.com SONIC 508C Key path Belt span key...
  • Page 40 All manuals and user guides at all-guides.com SONIC 508C Key path Data selection key...
  • Page 41 All manuals and user guides at all-guides.com SONIC 508C Key path Frequency range key...
  • Page 42 All manuals and user guides at all-guides.com SONIC 508C Key path Up button...
  • Page 43 All manuals and user guides at all-guides.com SONIC 508C Key path Down button...
  • Page 44 All manuals and user guides at all-guides.com SONIC 508C Key path Frequency/Tension key...
  • Page 45 All manuals and user guides at all-guides.com SONIC 508C Key path Measure key...
  • Page 46 All manuals and user guides at all-guides.com SONIC 508C Key path Indicator lights...

  • Page 47: Indicator Lights

    All manuals and user guides at all-guides.com SONIC 508C Key path Indicator lights Green LED Flash until a signal is received...
  • Page 48 All manuals and user guides at all-guides.com SONIC 508C Key path Indicator lights Red LED Flash when no frequency signal or no belt tension can be measured...
  • Page 49 All manuals and user guides at all-guides.com SONIC 508C Measurement...
  • Page 50 All manuals and user guides at all-guides.com...
  • Page 51 All manuals and user guides at all-guides.com SONIC 508C › Background noise: – Microphone gain level: set automatic when unit is turned on based on background noise – To reach microphone sensitivity: Turn on meter without microphone attached Wait for meter to power up...
  • Page 52 All manuals and user guides at all-guides.com SONIC TENSION METER 508C...
