Printed Matter No. 9839 3165 01
Publication Date 2023-04-27
Valid from Serial No. A0440001
LBV16 055-S92
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
LBV16 055-S92
8421011058
WARNING
Product Instructions

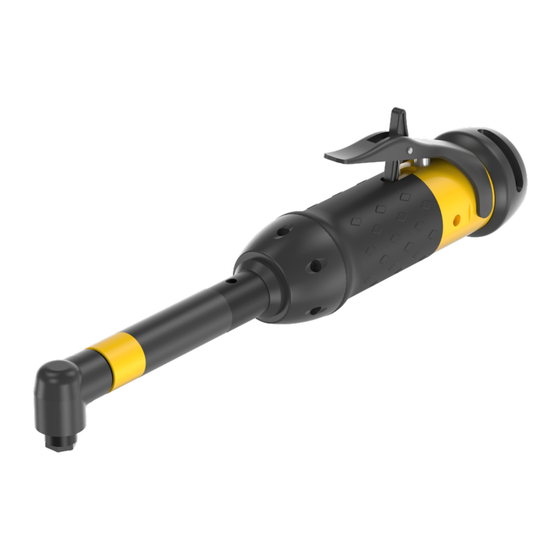

Angle drill
Advertisement
Table of Contents
Related Manuals for Atlas Copco LBV16 055-S92
Summary of Contents for Atlas Copco LBV16 055-S92
- Page 1 LBV16 055-S92 Printed Matter No. 9839 3165 01 Angle drill Publication Date 2023-04-27 Valid from Serial No. A0440001 Product Instructions LBV16 055-S92 8421011058 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Lubrication Instructions................... 12 Rust Protection and Cleaning.............. 12 Lubrication Guide ................ 12 Maintenance and lubrication.............. 12 Dismantling/Assembling Instructions .............. 13 Instructions for Vane Motors.............. 13 Assembly of vane motor according to Bäckströms method.... 16 Assembly of motor................ 17 © Atlas Copco Industrial Technique AB - 9839 3165 01... - Page 3 Troubleshooting.................... 18 Troubleshooting .................... 18 Recycling ....................... 19 Environmental Regulations................ 19 Recycling information .................. 19 © Atlas Copco Industrial Technique AB - 9839 3165 01...
-
Page 4: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 5: Servaid
Please visit: https://servaid.atlascopco.com. For further Technical Information, please contact your local Atlas Copco representative. Safety Data Sheets MSDS/SDS The Safety Data Sheets describe the chemical products sold by Atlas Copco. Please consult the Atlas Copco website for more information www.atlascopco.com/sds. PTFE WARNING Polymer Hazard The vanes in this product contain PTFE (a synthetic fluoropolymer). -
Page 6: Technical Product Data
Inlet adapter Connects the drill to the air prepa- ration unit (pressurized air). Technical Product Data Technical Product Data can be found on either ServAid, or the Atlas Copco website. Please visit: https://servaid.atlascopco.com or www.atlascopco.com. Service Overview Preventive maintenance Make sure to perform a preventive maintenance every 6 months. -
Page 7: Installation
Air Quality ■ For optimum performance and maximum product life we recommend the use of compressed air with a maximum dew point of +10°C (50°F). We also recommend to install an Atlas Copco refrigeration type air dryer. ■ Use a separate air filter which removes solid particles larger than 30 microns and more than 90% of liquid water. -
Page 8: Installation Instructions
Connect the tool to the air supply. Use the appropriate drilling speed for the application. To start the tool, press the trigger. When lubrication is recommended - only use lubricants recommended by Atlas Copco. © Atlas Copco Industrial Technique AB - 9839 3165 01... -
Page 9: Operation
Drain the hose of air pressure and disconnect the tool from air supply when not in use or before ► any adjustments. Always use the correct hose size and air pressure for the tool. ► © Atlas Copco Industrial Technique AB - 9839 3165 01... - Page 10 10. If the drill gets caught in the material, release the trigger immediately, unplug the drill and remove the bit from the material. When lubrication is recommended - only use lubricants recommended by Atlas Copco. © Atlas Copco Industrial Technique AB - 9839 3165 01...
-
Page 11: Service
The tool should be checked regularly at six-monthly intervals. If it is in heavy duty service or not running properly, it should be taken out of service more often for inspection. © Atlas Copco Industrial Technique AB - 9839 3165 01... -
Page 12: Lubrication Instructions
Dismantle the motor, see the Dismantling and assembly section. Clean the motor parts and apply a thin layer of air lubrication oil onto the vanes and inner surface of cylinder and end plates. © Atlas Copco Industrial Technique AB - 9839 3165 01... -
Page 13: Dismantling/Assembling Instructions
4080 0182 02 4080 0182 03 4080 0182 04 4080 0182 05 4080 0182 06 10.5 4080 0182 07 12.5 4080 0182 08 15.5 4080 0182 09 17.5 4080 0182 10 20.5 © Atlas Copco Industrial Technique AB - 9839 3165 01... - Page 14 Dismantling tool Mandrel B Ordering No. Ø D Ø C 4080 0567 04 12.5 4080 0567 11 14.5 4080 0567 01 15.5 4080 0567 05 18.5 4080 0567 02 18.5 © Atlas Copco Industrial Technique AB - 9839 3165 01...
- Page 15 Ø C 4080 0567 06 21.5 4080 0567 03 21.5 4080 0567 07 25.5 10.5 4080 0567 08 27.5 12.5 4080 0567 09 31.5 15.5 4080 0567 10 34.5 18.5 © Atlas Copco Industrial Technique AB - 9839 3165 01...
-
Page 16: Assembly Of Vane Motor According To Bäckströms Method
Service LBV16 055-S92 Assembly of vane motor according to Bäckströms method © Atlas Copco Industrial Technique AB - 9839 3165 01... -
Page 17: Assembly Of Motor
LBV16 055-S92 Service Assembly of motor © Atlas Copco Industrial Technique AB - 9839 3165 01... - Page 18 Make sure that the amount of ing. grease is correct. Damaged gear. Worn motor bearings. *) This service must only be carried out by authorized workshop or qualified service technician. © Atlas Copco Industrial Technique AB - 9839 3165 01...
- Page 19 Plastics, PA GF30 Adapter Metal, Steel Gear Metal, Steel Vane motor Metal, Steel* Gear rim Metal, Steel Angle head Metal, Steel Code ring Plastics, PPCO Metal, Aluminum Extension Metal, Steel © Atlas Copco Industrial Technique AB - 9839 3165 01...
- Page 20 Recycling LBV16 055-S92 *The rotor blades (vanes) in the tool contains PTFE, the normal health and safety recommendations con- cerning PTFE must be observed. © Atlas Copco Industrial Technique AB - 9839 3165 01...
- Page 24 Original instructions © Copyright 2023, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
