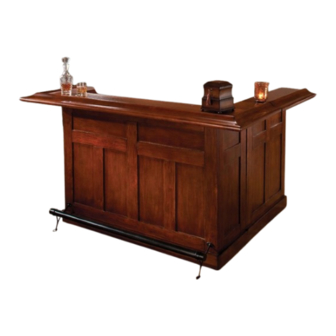

Hillsdale Furniture 62577A Quick Start Manual

Side Bar - Model #62577A / #62577P Oak / #62579A / #62579P Cherry / #64030 / #64030P Brown Cherry
Large Bar Top - Model #62576A / #62576P Oak / #62578A / #62578P Cherry / #64028 / #64028P Brown Cherry
Large Bar Base - Model #62586A / #62586P Oak / #62588A / #62588P Cherry / #64029 / #64029P Brown Cherry
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are
in proper , ght and free from damage. Keep this assembly instru on for future reference. Adult assembly is required. The product of Hillsdale Furniture,
LLC is designed for reside al use only. Customer Service Phone Number: 502-562-0000
CODE QTY
1 28 M8 x 3/4" Wood Screws
2 4 M8 x 3/4" Wood Screws
3 2 M5 x 1/4" Metal Screws
4 7 Metal Brackets
5 2 Metal Foot Supports
6 1 Foot Rest
WARNING
• Do not let any sharp objects touch or rub the surface of
the product.
• When assembling, do not let children play around the
working area.
• Please confirm all parts are correct before sta
assembly process.
• Do not hten all bolts and screws completely u
e re unit has been assembled and set up.
• Be careful if using power tools as they can over
screws and strip threads.
CARE & MAINTENANCE: The touch of a
cause damage to the finish. Periodic checks are recommended to make sure that all hardware is secur
Oak Bar / Cherry Bar / Brown Cherry Bar
HARDWARE
g the
the
hten
4
1
5
cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing, as they may
CODE QTY COMPONENTS
A 1 Bar
STEP 1
Begin assembly by aching Bar Top (B) to Bar (A) by
Metal Bracket (4) to Bar (A) using 2 Wood Screws (1) per bracket.
Once secured, rest Bar Top (B) in place and secure using 2 Wood
Screws to hold in place. Tighten screws using a Phillips Head
Screwdriver (not included).
STEP 2
A ach each Metal Foot Support (5) to the front of Bar (A) using 2
Wood Screws (2) per support. Tighten all screws.
STEP 3
Insert Foot Rest (6) (located under the bar) into Metal Foot
Supports (5) by sliding in place and securing with 1 Metal Screw (3)
per side. Tighten all screws. The assembly is now complete.
A
B
1
6
2
htened.
Date: 11-20-2018
Page 1 of 1
CODE QTY COMPONENTS
B 1 Bar Top
aching each
5
3
