Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are
in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required. The product of Hillsdale Furniture,
LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000
CODE
QTY
1
8
1/4" x 15mm Sunk Bolts
2
6
1/4" x 15mm Allen Bolts
3
2
1/4" x 22mm Allen Bolts
4
8
Φ6.5 Flat Washers
5
8
Φ6.5*δ1.5 Spring Washers
6
1
Allen Wrench
Read these instructions thoroughly before assembling and using.
Failure to do so may result in faulty assembly and potential injury!
• Place the parts and assemble on a flat, non-abrasive and
soft surface such as a carpet or cardboard to avoid
damaging the item. Seek assistance to assemble bulky or
heavy items. After final alignment, make sure all bolts
and nuts are securely tightened with screw head covers
pressed in place.
• Do not fully tighten the bolts until assembly is completed
and alignment is correct.
• Do not crawl or stand on the product.
• Do not set or lay heavy items on the product.
• Do not place hot items on the product.
• Periodic checks are recommended to make sure that all
hardware is securely tightened and stable for designed use.
Care and Maintenance
Store furniture in an upright position.
Be careful to never allow water to build up in frames as this will
cause corrosion and freeze damage in cold climates. Wash all
frames with a solution of mild soap and water. Rinse with clean
water and dry with a soft absorbent cloth towel. If your set
includes cushions, they may be cleaned by hand with a solution
of soap and water and then rinsed with clean water. Never
machine wash or dry cushions. Do not use bleach or solvents
to clean any product! Periodic checks are recommended to
make sure that all hardware is securely tightened and stable for
designed use. It is recommended to store or cover furniture
when not in use to extend the life of the product.
A failure to properly follow assembly instructions and care and
maintenance will void the warranty.

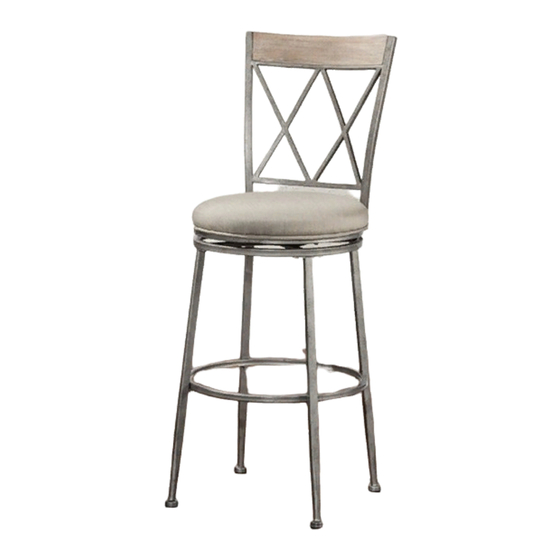

Stewart Indoor Outdoor Swivel Stool
HARDWARE
WARNING
Model #6319-826-830
CODE
QTY
COMPONENTS
A
1
Seat
C
1
Back
CODE
QTY
B
4
D
1
A
B
B
D
Date: 01-10-2017
Page 1 of 2
HDFBP
COMPONENTS
Legs
Support Ring
C
B
B
