Hillsdale Furniture 62576A Manual

HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure
that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult
Assembly is required. Customer Service Phone Number: 502-562-0000
Hardware List
A (28) Wood Screws
B (4) Wood Screws
C (2) Metal Screws
D (7) Metal Brackets
E (2) Metal Feet Supports
F (1) Foot Rest

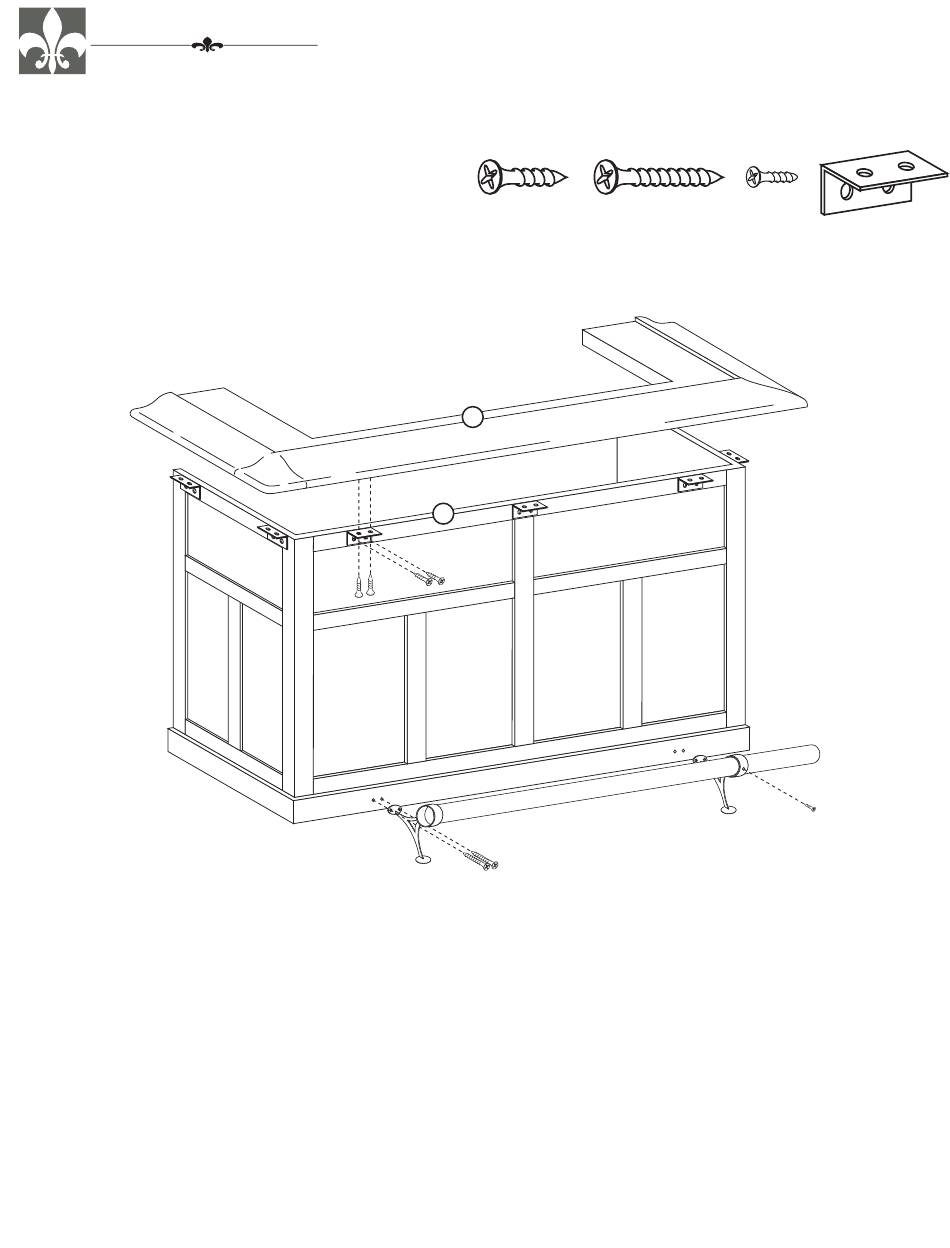

Step 1
Begin assembly by attaching the Bar Top (H) to the Bar (G) by attaching each Metal Bracket (D) to
the Bar (G) using 2 Wood Screws (A) per each bracket. Once secured, rest Bar Top in place and
secure using also 2 Wood Screws (A) to hold in place. Tighten all screws only using a phillips head
screwdriver (not included).
Step 2
Attach each Metal Foot Support (E) to the front of the Bar (G) using 2 Wood Screws (B) per each
support. Tighten all screws.

STEP 3

Insert the Foot Rest (F) into the Metal Feet (E) by sliding in place and securing with 1 Metal Screw
(C) per each side. Tighten all screws. The assembly is now complete.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for
polishing, as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
Parts List
3 / ” G (1) Bar
M8 x
4
/ ” H (1) Bar Top
3
M8 x 5
4
/ ”
1
M5 x
4
A

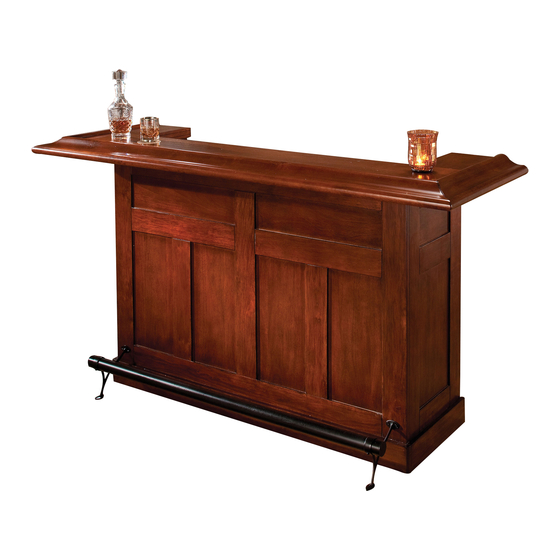

OAK BAR / CHERRY BAR
Model #62576A / 62577A / 62586A Oak Finish
Model #62578A / 62579A / 62588A Cherry Finish
A
H
G
A
A
A
E
B
B
B
E
F
Page 1 of 3
04/05/10
D
C
C
