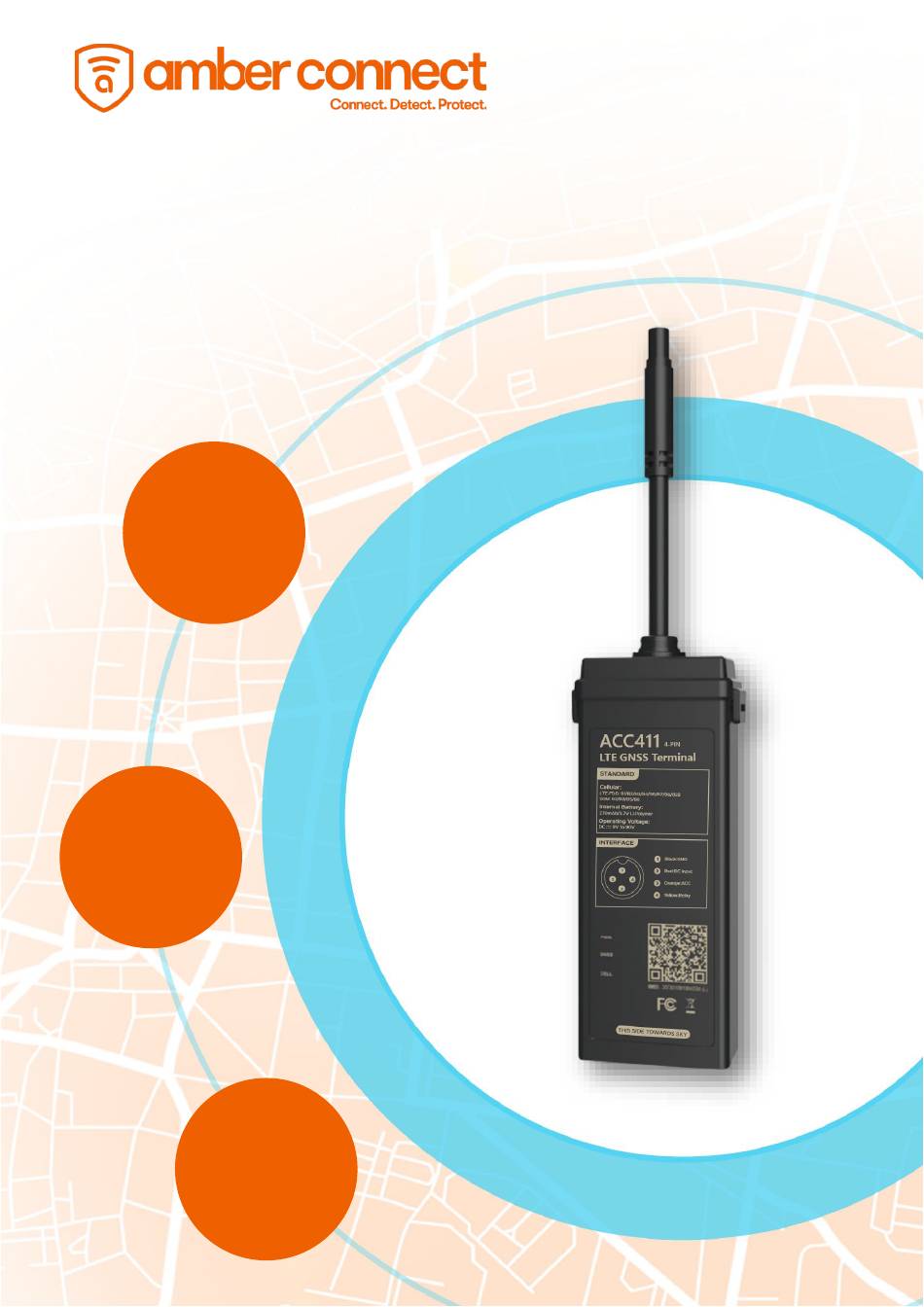

Quick Start Guide
ACC411
Amber Covert C411
Basic 4-Pin GNSS LTE Device
1
Install
Your Device
2
Download
Amber Connect
App
3
Activate
The Device

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Covert C411 and is the answer not in the manual?

Questions and answers

Related Manuals for amber connect Covert C411

Summary of Contents for amber connect Covert C411

  • Page 1 Quick Start Guide ACC411 Amber Covert C411 Basic 4-Pin GNSS LTE Device Install Your Device Download Amber Connect Activate The Device...

  • Page 2: Product Overview

    • Driving behavior analysis (4 types) • Over-speed alert • Tamper alert • Removal alert • Power-supply-cut alert • Low power alert • Vibration alert • Geo-fence Standard Parts List Item Quantity Amber Covert C411 device Power cable (Length: 1 m) Relay Optional...

  • Page 3: Specification

    Specification 4G&2G Network ACC 411-L: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 GSM: B2/B3/B5/B8 Frequency ACC 411-E: LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41 GSM: B2/B3/B5/B8 <10 meters CEP Location accuracy Optional Relay Avg. hot starts 1 sec TTFF (open sky} Avg. cold starts 32 sec GPS (Blue), Cellular (Green), Power (Red) Indication 270 mAh, 3.7V Li-Polymer battery Battery...

  • Page 4: Led Indications

    3. Insert SIM card into the slot and toggle the switch to LED indications Power Status (Red) Low power On for 0.3s and off for 0.3s Fully charged On for 1s and off for 3s Working normally On for 0.1 s and off for 3s Charging (Higher priority than the status of Solid on low power)
  • Page 5 Interfaces 4 Pin Standard Version Interface Color Description Power + (9-90V) Black Power - Ground pin Orange Vehicle ignition detection Yellow Cut-off vehicle fuel supply Relay Wiring of Standard Version Tips for finding right wires: 1. Use multi meter lo find out the positive and negative sides of vehicle battery. Note: No matter the ignition key is switched to ON or OFF, current battery voltage can be shown in the multi meter.

  • Page 6: Installation Recommendation

    Installation recommendation Please install the device under the guidance of professional personnel.

  • Page 7: Troubleshooting

    Google Play store. Troubleshooting Type Check the APN and IP settings. Unable to connect to Amber Connect Check whether the data service of SIM card is enabled. Check the balance of SIM card. Check whether external power is still Tracker shows offline connected.

This manual is also suitable for:

Acc411
