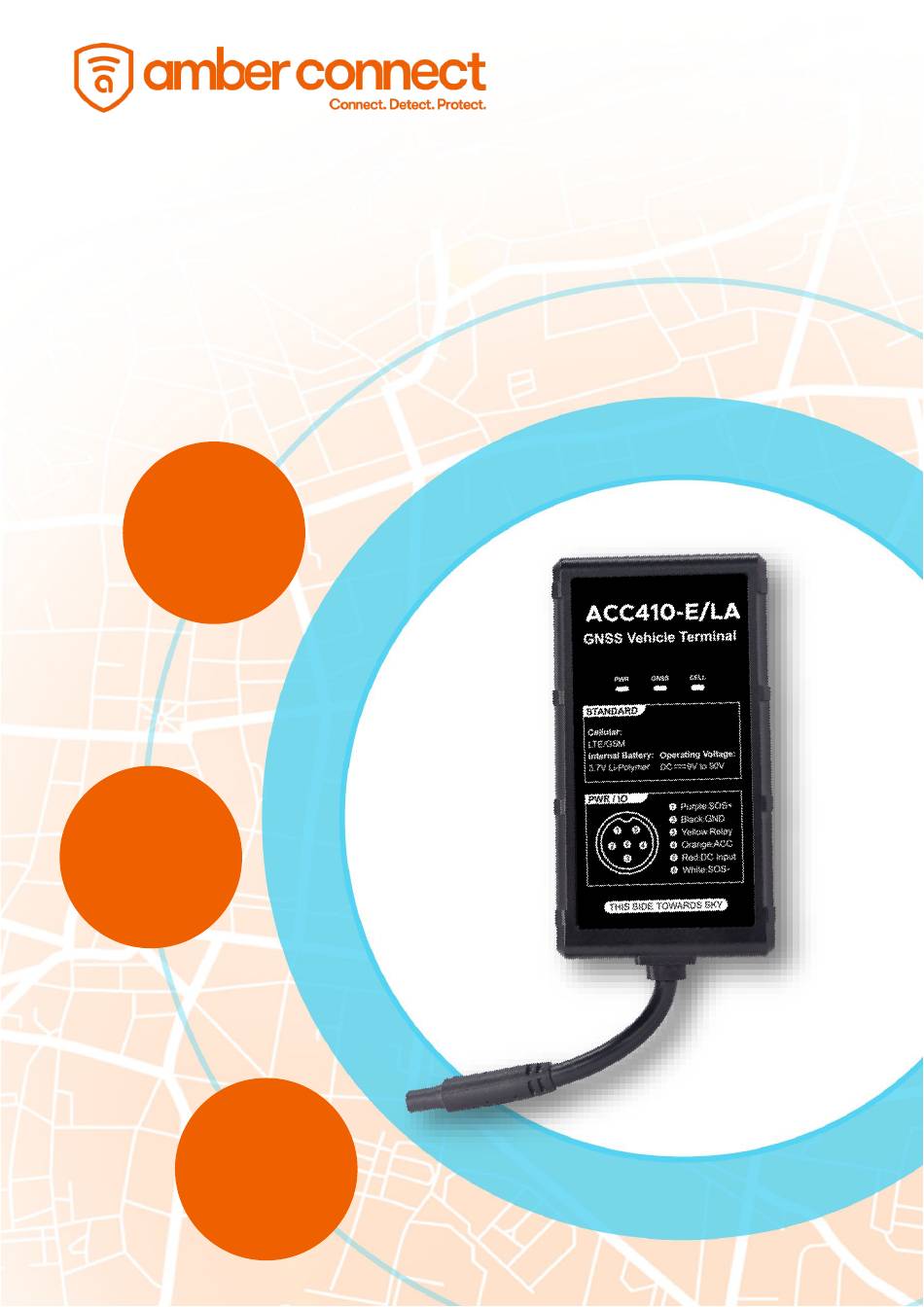

- Page 1 Quick Start Guide ACC410-E/LA Amber Covert C410-E/LA GNSS Vehicle Terminal Install Your Device Download Amber Connect Activate The Device...
-
Page 2: Product Overview
Product overview • Real-time tracking • Driving behavior analysis (4 types) Serial port (optional) • Over-speed alert • SOS alert • Tamper alert • Removal alert • Power-supply-cut alert • Low power alert • Vibration alert • Geo-fence... -
Page 3: Standard Parts List
Standard Parts List Item Quantity ACC410 device Power cable (Length: 1 m) Relay Optional Panic button Optional Specification 4G&2G Network JM-VL03E: FDD: B1/B3/B5/B7/B8/B20 TDD: B34/B38/B39/B40/B41 GSM: 900/1800 MHz JM-VL03A: Frequency LTE: B1/B3/B7/B8/B28 GSM: 850/900/1800/1900 MHz JM-VL03M: LTE: B2/B4/B5/B7/B12/B13 GSM: 850/900/1800/1900 MHz <10 meters CEP Location accuracy Optional... - Page 4 2. Remove the upper cover of device. 3. Insert SIM card into the slot and toggle the switch to 4. To ensure waterproof take effect, make sure the silicon rubber ring is installed in place. 5. Press the upper case down and make sure all 5 clips are completely in place...
-
Page 5: Led Indications
LED indications Power Status (Red) Low power On for 0.3s and off for 0.3s Fully charged On for 1s and off for 3s Working normally On for 0.1 s and off for 3s Charging (Higher priority than the status of Solid on low power) Battery is exhausted/Internal failure... - Page 6 6 Pin RS485/TTL Version (Optional) Interface Color Description Power+ (9-90V) Black Power - Ground Pin Blue TTL Tx or RS485A Tx/RS485A Green TTL Rx or RS485 B Rx/RS485 B Purple SOS Trigger Pin SOS+ While SOS Ground Pin SOS- Wiring of Standard Version Tips for finding right wires: 1.
-
Page 7: Installation Recommendation
Installation recommendation Please install the device under the guidance of professional personnel. -
Page 8: Troubleshooting
Note: 1. The device should face up to sky. 2. Metal thermal barrier or heating layer, which are always installed on windshield, may affect the signal, please avoid installing the device under these objects. Platform & APP 1. Login service platform Please login the designated service platform to set and operate the device.
