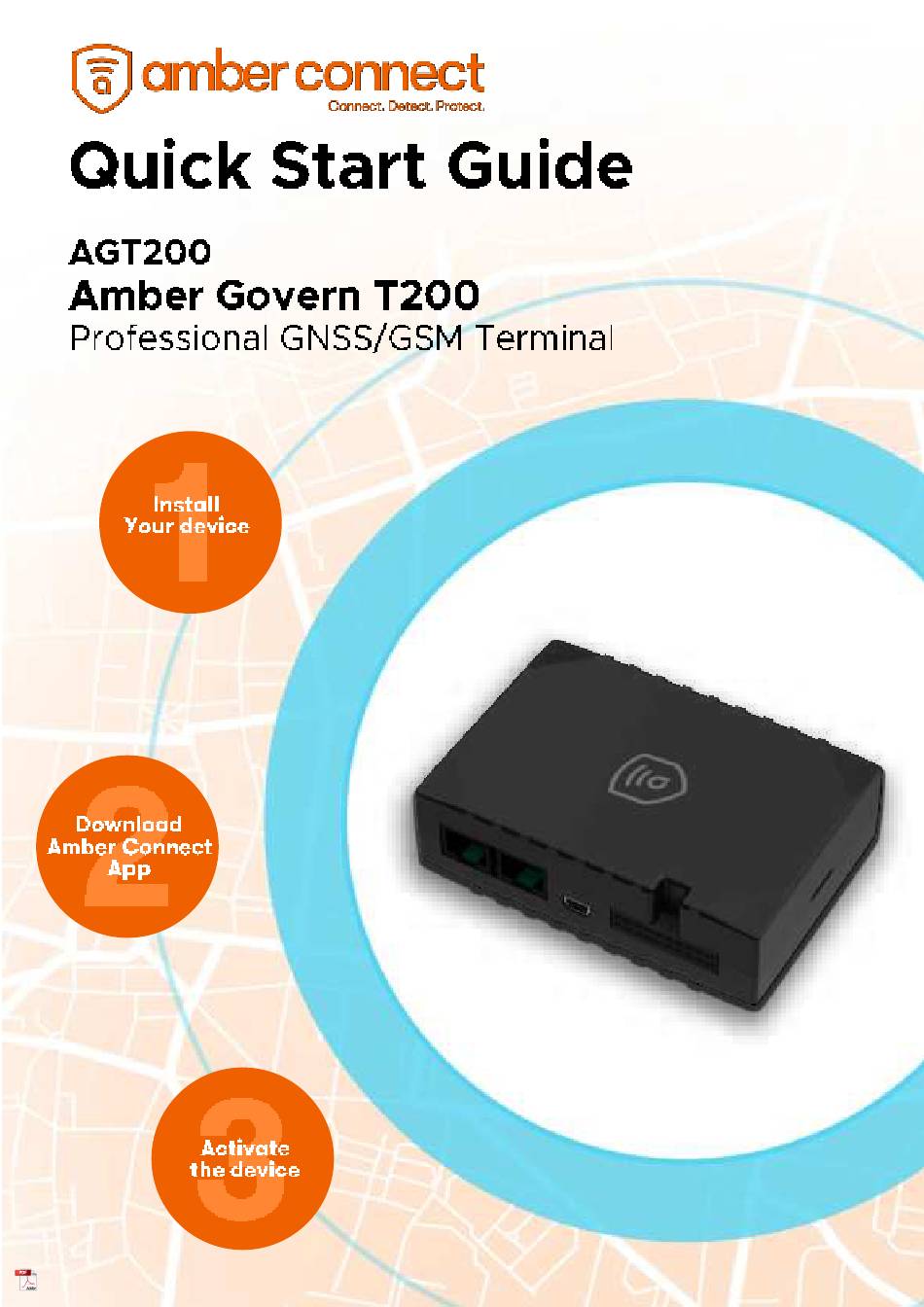

amber connect Amber Govern T200 Quick Start Manual
Professional gnss/gsm terminal
Hide thumbs
Also See for Amber Govern T200:
- Quick start manual (11 pages) ,
- Quick start manual (12 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for amber connect Amber Govern T200
Summary of Contents for amber connect Amber Govern T200
-
Page 2: Know Your Device
Know your device AGT 200 Device view Pinout AGT200 pinout Pin name Description number GND (-) Ground CAN 1L SAE J1939 CAN interface Low channel 1 1WIRE POWER Power supply pin for Dallas 1-Wire® devices DIN4 Digital input, channel 4 DIN2 Digital input, channel 2 CAN 2L... -
Page 3: Wiring Scheme
DIN3 Digital input, channel 3 Digital input, channel 1. DEDICATED FOR IGNITION IGN (DIN1) INPUT CAN 2H SAE J1939 CAN interface High channel 2 AIN1 Analog input, channel 1. Input range: 0-30V/0-10V DC Digital output. Open collector output OR Analog input, DOUT4/AIN4 channel 4. -
Page 4: Mounting Recommendations
Unscrew screws Cover removal SIM card insert Battery connection Mounting recommendations • Connecting wires 1. Wires should be connected while the module is not plugged in. 2. Wires should be fastened to the other wires or non-moving parts. Try to avoid heat emitting and moving objects near the wires. -
Page 5: Led Indications
4. 3 A, 125 V external fuse • Connecting ignition wire Be sure to check if it is a real ignition wire power does not disappear while starting the engine. Check if this is not an ACC wire (when key is in the first position, most electronics of the vehicle are available). - Page 6 Characteristics Basic characteristics Module Name AGT 200 Technology GSM ,GPRS, GNSS, BLUETOOTH GNSS GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, DGPS Receiver Tracking: 33/99 acquisition channels Tracking sensitivity -165 dBM Accuracy < 3 m Hot start < 1 s Warm start <...
-
Page 7: Electrical Characteristics
Memory 2MB internal flash memory and Micro-SD card Bluetooth Specification 4.0 + LE Supported peripherals Headset, Inateck Barcode Scanner Features Sensors Accelerometer Green Driving, Over Speeding detection, Jamming Scenarios detection, Excessive Idling detection, Crash detection, Immobilizer, iButton Read Notification, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip Functionalities Detection, Odometer, DDD download and Tacho Online... -
Page 8: Safety Information
Digital Input kΩ Input resistance (DIN1) kΩ Input resistance (DIN2) kΩ Input resistance (DIN3) Input resistance (DIN4) Input voltage (Recommended Operating Supply Conditions) voltage Input Voltage threshold (DIN1, DIN2, DIN3,DIN4) Input Voltage threshold (DIN2, DIN3, DIN4) Analog Input Input voltage (Recommended Operating Conditions), Range 1 kΩ... -
Page 9: Certification And Approvals
Do not disassemble the device. If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT touch the device before unplugging the power supply. All wireless data transferring devices produce interference that may affect other devices which are placed nearby. -
Page 10: Warranty Disclaimer
Directive 2014/53/EU (RED). Warranty Amber connect guarantees its products to be free of any manufacturing defects for a period of 24 months. With additional agreement we can agree on a different warranty period, for more detailed information please contact our sales manager.
