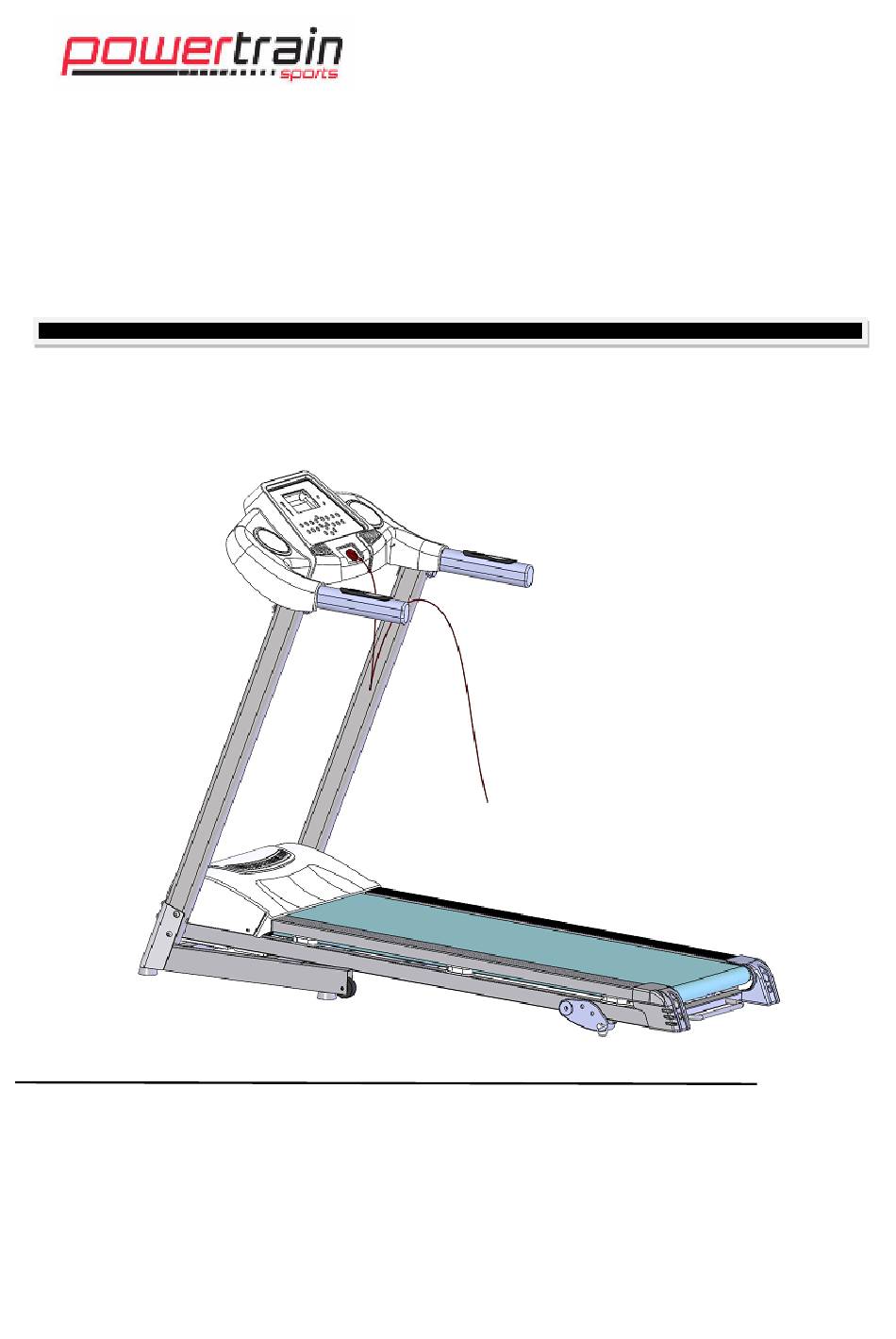

MOTORIZED TREADMILL – MODEL V30
INSTRUCTION MANUAL
Please read these instructions carefully before use and keep for future reference
FOR DOMESTIC INDOOR USE ONLY
WARNING: Keep young children away from this machine at all times. Contact with
the moving surface may result in severe friction burns.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powertrain V30

Summary of Contents for Powertrain V30

  • Page 1 MOTORIZED TREADMILL – MODEL V30 INSTRUCTION MANUAL Please read these instructions carefully before use and keep for future reference FOR DOMESTIC INDOOR USE ONLY WARNING: Keep young children away from this machine at all times. Contact with the moving surface may result in severe friction burns.

  • Page 2: Safety Notice

    1. CAUTION To avoid injuries please read this manual carefully before using the treadmill.  Before starting any exercise program you should consult your doctor to determine if you have any physical or health conditions which could create a risk to your health and safety, or prevent you from using the equipment properly.

  • Page 3: Product Specifications

     Be careful of children or other objects while folding and unfolding the machine.  Do not put the machine near wet objects to avoid slippery surfaces and damage to the machine 3. CAUTION PRIOR TO USE  Do not use the machine if you are unwell and immediately stop using the machine if you start feeling unwell whilst using it.
  • Page 4 Main parameters and parts list Main technical parameters Parameters Names Description Input power voltage AC220-240V(50/60Hz) Motor power 1.5HP Speed 0.8-14.8Km/h Packing list Name Units Treadmill Unit Accessory Bag Screws bag list Name Name Inner hexagon spanner 6mm MP3 line Inner hexagon spanner 5mm Screw M8*22 Combination wrench Screw M8*45...
  • Page 5  Use the 5# hexagon wrench and insert bolt M8*45(A) through the tube in the base, and fix it with washer and nut(M8). Then use bolt M8*22(B) to fix the tube.  Hold left and right columns and use 5# hexagon wrench to lock the console frame on to the columns with screw M8*20 and washer.

  • Page 6: Using The Treadmill

     Position the safety key in the correct position as shown below: CAUTION: Please confirm that all screws are correctly tighteneded according to the requirements after installation, and check no part has been left out prior to connecting to power. * Select one of three levels of incline based on preference.

  • Page 7: Program Button

     Start - starts after 5 seconds of countdown.  Programs - 1 manual mode, 3 modes, 12 automatic programs, 1 FAT program.  Safety lock function - Disconnecting the safety key will result in error "E7" displayed on the screen. Treadmill will immediately slow down and a "Di" tone will be emitted. Repositioning the safety key on the console will reset the data in 2 seconds.
  • Page 8  Speed shortcut key 1, 3 ,5,7, 9, 11 can directly adjust the speed in running state.  Manual Mode Training o The V30 treadmill features a "manual" mode of operation which allows the user to ability to adjust the operation of the equipment to their personal requirements.
  • Page 9 Pulse: 50 – 199 (BPM) Program Mode Training  V30 Treadmill features 12 automatic training programs - P12 to P12. Each program has a standard duration of 30 minutes (changeable) and applies different speeds 10 times per each program. To use the programs o Switch on the treadmill and press "Prog"...

  • Page 10: Error Codes

    Physical Fitness Test (FAT) - (Mass)  The V30 model is equipped with a body mass calculator to estimate the user's overall body fat content.  The body mass index ("BMI" is to be used as an estimate only and not to be considered to be medical data.

  • Page 11: Maintenance

    Possible Cause: Check the motor cable to see whether it is connected well or not, if not, re-connect the motor wire again. Check the motor cable to see whether it is damaged or has a burnt No signal from motor. smell, if yes, replace the motor.
  • Page 12 regularly.  To check if the belt needs to be lubricated, simply lit each side of the belt with your hands and feel the top surface of the running deck. If it is slick to the touch, then no lubrication is required. If it is dry to the touch, then lubricate. ...

  • Page 13: Exercise Instructions

     Step 3: Lock the motor base, and re- install the front cover.  Exercise Instructions Using your Powertrain treadmill provides you with several benefits such improving your physical fitness, toning muscles and together with a calorie controlled diet may help you lose weight.
  • Page 14 Warm-up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch - if it hurts, STOP.
  • Page 15 Warranty and Contact Details Kmate Pty Ltd provides a 12 month warranty for this product when used for domestic purposes. This product is not intended for commercial use and any such use will void all warranty. The benefits of this warranty are provided in addition to other rights and remedies you may have under a law in relation to the goods and services to which this warranty relates.
  • Page 16 A claim may be refused if the defective claim has arisen for reasons other than a manufacturers fault or defective parts or workmanship. Circumstances in which a warranty claim may be declined include, but are not limited to the following: ...
