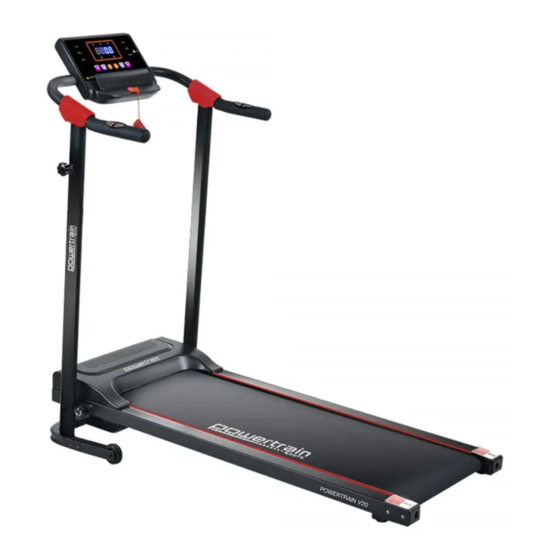

MOTORIZED TREADMILL – MODEL V20
INSTRUCTION MANUAL
Please read these instructions carefully before use and keep for future reference
FOR DOMESTIC INDOOR USE ONLY
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V20 and is the answer not in the manual?

Questions and answers

Related Manuals for Powertrain V20

Summary of Contents for Powertrain V20

  • Page 1 MOTORIZED TREADMILL – MODEL V20 INSTRUCTION MANUAL Please read these instructions carefully before use and keep for future reference FOR DOMESTIC INDOOR USE ONLY...

  • Page 2: Safety Notice

    WARNING: Keep young children away from this machine at all times. Contact with the moving surface may result in severe friction burns. 1. CAUTION To avoid injuries please read this manual carefully before using the treadmill.  Before starting any exercise program you should consult your doctor to determine if you have any physical or health conditions which could create a risk to your health and safety, or prevent you from using the equipment properly.

  • Page 3: Product Specifications

     Machine requires a constant a.c 220-240V power connection  Error may be displayed if power is not stable. Please do not share points with integral equipment such as computers, air conditioners etc.  Be careful of children or other objects while folding and unfolding the machine. ...
  • Page 4 Main Specifications and Parts List Main technical parameters Parameters Names Description Input power voltage AC 220-240V(50/60Hz) Motor power 1.0HP Speed 1.0-10 Km/h Packing list units Name Complete machine Accessory Bag Handle cover Base support frame Accessory bag list Name Name Inner hexagon spanner 5mm MP3 cable Inner hexagon spanner 6mm...
  • Page 5 2. Remove pre-installed screws M8*22. Use 5# hexagon wrench and screw M6*12 to lock and fix the base within the screw hole sites (shown below). Then re-install screw M8*22. M8*22 M6*12 3. Hold left and right columns, use 5# hexagon wrench and screw M8*45 to lock the console frame to the columns.
  • Page 6 Put the handle covers on the handles. Adjust the angle of the console 5. Use the bolt to lock the column and the base. 6. Position the safety key in the yellow area of the console, then press the start button to start the treadmill.

  • Page 7: Folding Instructions

    Please find the red safety key in the accessory bag. CAUTION: Confirm all screws are tightened according to the requirements after installation, and check to ensure that no part is left out before connecting treadmill to electricity. 6. FOLDING INSTRUCTIONS 1.
  • Page 8 7. USING THE TREADMILL  Connect to power and turn on the unit by using the red switch (1). Once the light has illuminated, the unit will emit a tone “Di”, and control panel will light up. Safety Key Functionality ...
  • Page 9 2. Program Button  In standby mode, pressing "Program" button can cycle the options from manual mode from P1 through to P12 automatic programs. Manual mode is the system's default running mode. 3. Mode Button  In standby mode, pressing the "Mode" button will cycle the options through the 3 different countdown running modes: o Time countdown running mode;...

  • Page 10: Meaning Of Error Codes

    Time Set time / 10 = Running time of each period Program SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED Meaning of Error Codes Error code Description Solution Erroneous Connection: Possible Cause: the communication between the lower controller when the power is on, the and console is blocked, check each joint between the controller and connection between lower...

  • Page 11: Maintenance

    Explosion-proof impact Possible Cause: protection: the abnormal Check if the power supply voltage is 50% lower than normal voltage or motor cause a voltage，use the correct voltage and test the machine again；check circuit fault which drives the if the controller has a burnt smell and replace the controller; Check motor.
  • Page 12  CAUTION: Do not over lubricate. Wipe away excess lubricant from the belt.  If the board’s surface is damaged, please contact our customer service center to purchase replacement parts.  We recommend applying lubricant between running belt and running board: o Infrequent user (use less than 3 hours a week) - once per month;...
  • Page 13 Multi-wedge Belt Tension Adjusting  After some time, the multi-wedge belt is expected to become loose as a result of the abrasions, which will require the user to adjust the multi-wedge to ensure continued safe use.  When to Adjust? Feeling of running with the occasional pause/slipping experienced, indicates that the treadmill belt or multi-wedge belt are a little loose and further assessment/confirmation is required.

  • Page 14: Exercise Instructions

    Exercise Instructions Using your Powertrain treadmill provides you with several benefits such improving your physical fitness, toning muscles and together with a calorie controlled diet may help you lose weight. Warm-up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury.
  • Page 15 Warranty and Contact Details Kmate Pty Ltd provides a 12 month warranty for this product when used for domestic purposes. This product is not intended for commercial use and any such use will void all warranty. The benefits of this warranty are provided in addition to other rights and remedies you may have under a law in relation to the goods and services to which this warranty relates.
