Texas Instruments BoosterPack BOOSTXL-RS232 Getting Started Manual

Meet the BOOSTXL-RS232™ BoosterPack. This BoosterPack provides the opportunity to communicate to
and from TI LaunchPads™ using the RS232 serial protocol. The featured product is the TRS3122E, an
ultra-low power, high-speed dual RS232 transceiver. It supports data [RX, TX] channels as well as flow
control [RTS, CTS] channels that can easily be assigned to 1 of 10 GPIO pins. This device features a
shutdown mode that reduces supply current as low as 0.5 µA. This can be done manually or by setting the
TRS3122E into its Auto-Powerdown Plus mode.
1 BoosterPack Features
• 1× TRS3122E RS-232 Dual Transceiver
• 1× LP2985-18 LDO Regulator
• Power indication LED
• 1 set of transmit and receive indication LEDs for each line
• On board linear regulator for 1.8-V or 3.3-V supply option
• Supports data rates up to 1 Mbps
• Auto-Powerdown Plus
• Invalid interrupt signal
SLLU249 – December 2016
Submit Documentation Feedback
RS232 BoosterPack™ Getting Started Guide

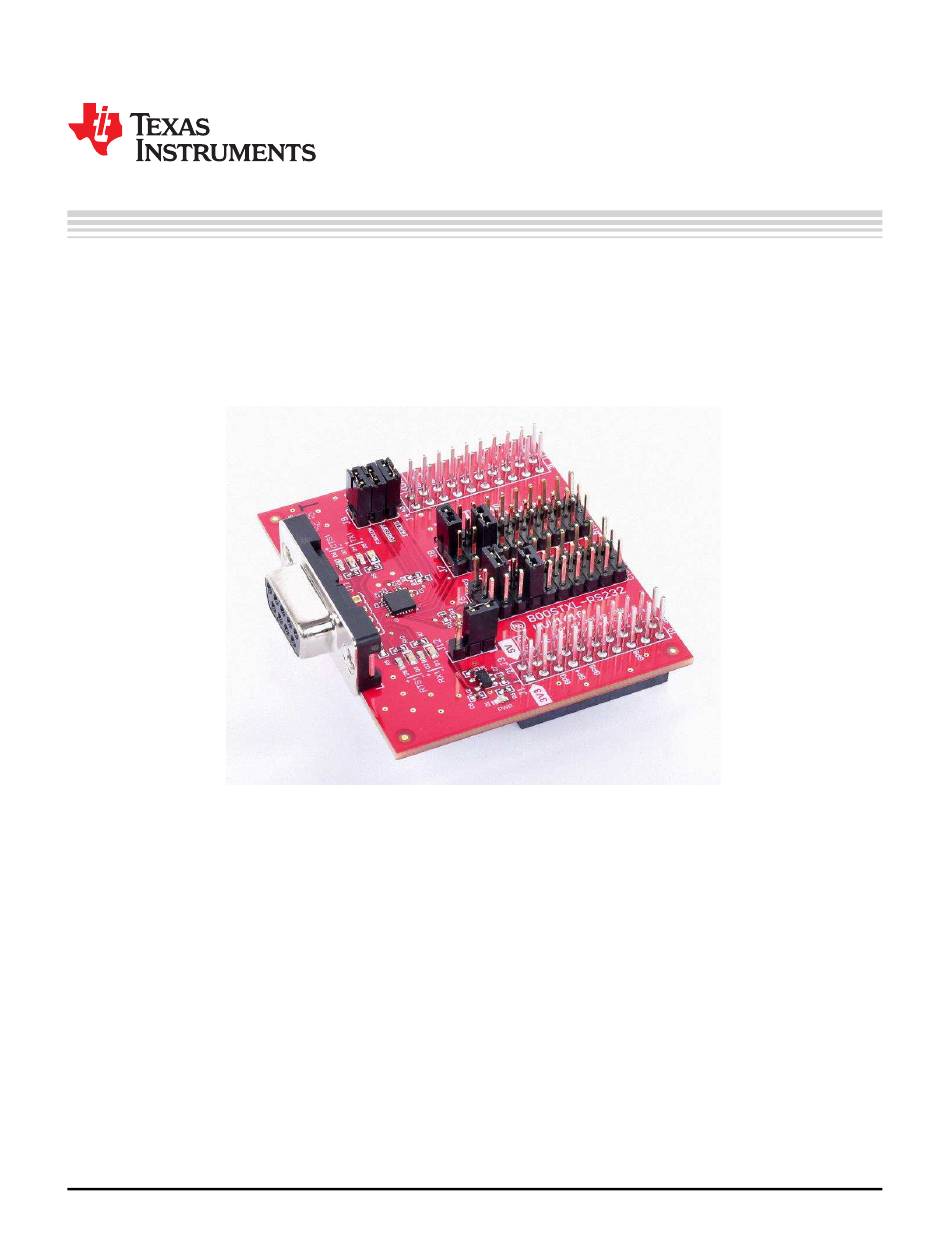

Figure 1. BOOSTXL-RS232
