Summary of Contents for AVE COBRA BEAM 100

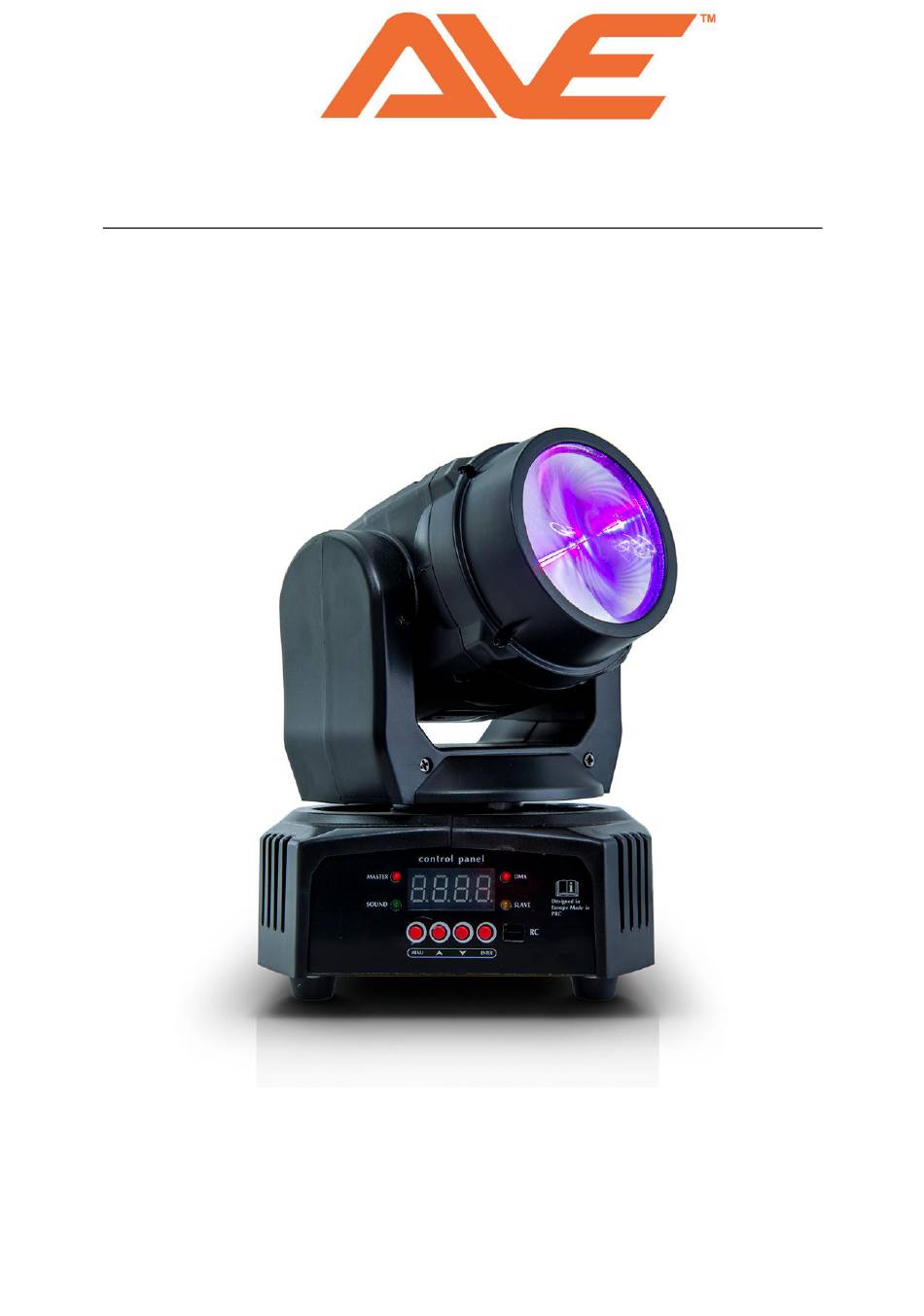

- Page 1 COBRA BEAM 100 User Manual...
- Page 2 T able of Contents Safety ..................2 Important Safety Instructions ............3 Precautions..................4 Suspension ..................4 Mounting ..................4 Description ................5 ................Features Setup ..................6 ..............Power Linking ................Operation ................Menu Map ..............DMX Channel Specifications................8...
- Page 3 Safety Important Safety Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OVEREXPOSE THIS FIXTURE TO RAIN OR MOISTURE. WARNING: CONNECT ONLY TO MAINS POWER SUPPLY WITH A PROTECTIVE EARTHING CONNECTION. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THE REAR COVER OR ATTEMPT TO OPEN THE LIGHTING FIXTURE.
- Page 4 Precautions If an AVE lighting fixture is used outdoors on a sunny day, ensure that it is in a shaded area and is well ventilated to help prevent overheating. Do not use AVE lighting fixtures in environments that are below 0°C OR exceed +40°C.
- Page 5 The digital display can also be inverted when hung making it easier to navigate the menu. Out of the box, the Cobra Beam 100 has an Auto mode with 4 pre-set programs that is sound reactive and will move to the music when detected. The master/slave function lets you easily create coordinated lighting shows and without the need for DMX.
- Page 6 4. Select the desired operation mode and press ‘enter’ 5. Wait approx. 10sec for the setting to take effect Operation To access the menus and functions of the Cobra Beam 100, use the four (4) buttons located under the main LCD control screen. Button Label...
- Page 7 Menu Map Addr 1 – 512 DMX Address Value Chnd 7 Channel DMX Mode 13Ch 13 Channel DMX Mode SLNd NASt Master SLA 1 Slave 1 SLA 2 Slave 2 ShNd Sh 1 Show 1 Sh 2 Show 2 Sh 3 Show 3 Sh 4 Show 4...
- Page 8 Specifications Light Source: 1x 10W Quad LEDs (50,000hr life expectancy) Colours: Red, Green, Blue, White Pan Range: 540° Tilt Range: 270° Strobe Rate: 0 – 10Hz DMX Channels: 7CH / 13CH DMX Connectors: 3-Pin XLR Power Consumption: 30W Power Supply: 240V AC / 50Hz Power Connectors: IEC Mains Dimensions: 148 x 145 x 178 mm Weight:...
