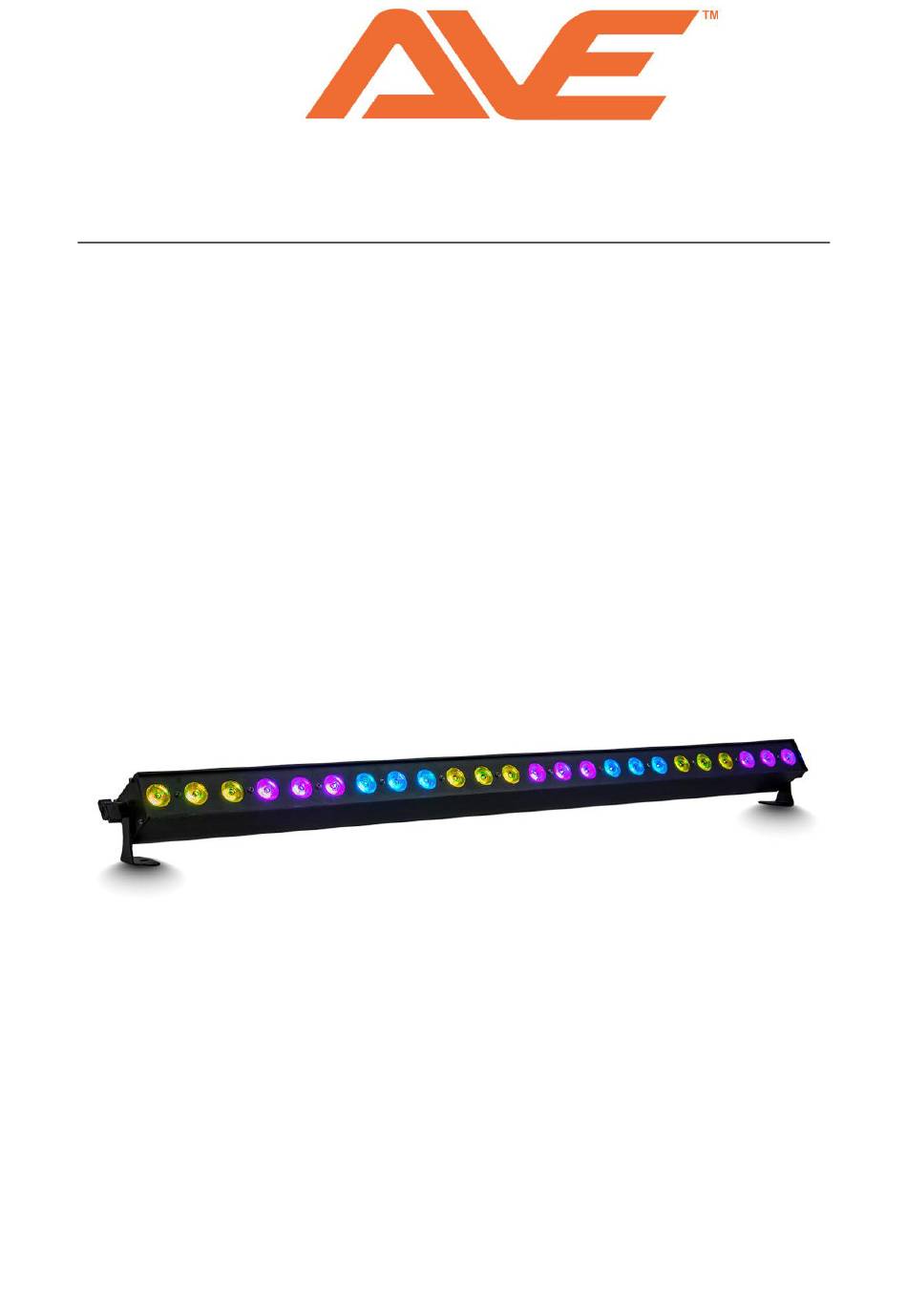

- Page 1 LEDBAR-24 User Manual...
-
Page 2: Table Of Contents
T able of Contents Safety ..................3 Important Safety Instructions ............3 Precautions..................4 Suspension ..................4 Mounting ..................4 Description ................5 ................Features Setup ..................6 ................Menu Map ................Operation ..............DMX Channel Specifications................8... -
Page 3: Safety
Safety Important Safety Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OVEREXPOSE THIS FIXTURE TO RAIN OR MOISTURE. WARNING: CONNECT ONLY TO MAINS POWER SUPPLY WITH A PROTECTIVE EARTHING CONNECTION. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THE REAR COVER OR ATTEMPT TO OPEN THE LIGHTING FIXTURE. -
Page 4: Precautions
Precautions If an AVE lighting fixture is used outdoors on a sunny day, ensure that it is in a shaded area and is well ventilated to help prevent overheating. Do not use AVE lighting fixtures in environments that are below 0°C OR exceed +40°C. -
Page 5: Description
Description The AVE LEDBAR-24 is a linear wash effect light that produces a great wash of colour, great for dance floors and washing flat surfaces. The wash effect is uses 24x 3-in-1 RGB LEDs, each with a punchy 1W output. 8 zones of control allow you to create eye catching visual chases and colour mixing effects for your event. -
Page 6: Setup
Setup To set up your AVE LEDBAR-24 follow the below steps; 1. Mount the item on your lighting stand or on the floor 2. Connect the AC power cord from a grounded mains 240v power source 3. Power the fixture/s on from the mains socket 4. -
Page 7: Operation
Operation To access the menus and functions of the LEDBAR-24, use the four (4) buttons located under the main LCD control screen. Button Label Function Menu Press to access main menu, or change function once the fixture is on Cycles upwards through the menu and options... -
Page 8: Specifications
Specifications Light Source: 24x 1W Tri-Colour (RGB) LEDs Colours: Red, Green, Blue (3-in-1) Strobe Rate: 0 – 16Hz DMX Channels: 3CH / 8CH / 10CH / 29CH DMX Connectors: 3-Pin XLR Power Consumption: 36W Power Supply: 240V AC / 50Hz Power Connectors: IEC Mains Dimensions: 65 x 50 x 980 mm (excluding mounting brackets) Weight:...
