- Page 1 HEX-FLAT6 User Manual...
-
Page 2: Table Of Contents
T able of Contents Safety ..................2 Important Safety Instructions ............3 Precautions..................4 Suspension ..................4 Description ................5 ................Features Setup ..................6 ..............Power Linking ................Mounting ................Operation ................Menu Map ..............DMX Channel Specifications................8... -
Page 3: Safety
Safety Important Safety Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OVEREXPOSE THIS FIXTURE TO RAIN OR MOISTURE. WARNING: CONNECT ONLY TO MAINS POWER SUPPLY WITH A PROTECTIVE EARTHING CONNECTION. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THE REAR COVER OR ATTEMPT TO OPEN THE LIGHTING FIXTURE. -
Page 4: Precautions
Precautions If an AVE lighting fixture is used outdoors on a sunny day, ensure that it is in a shaded area and is well ventilated to help prevent overheating. Do not use AVE lighting fixtures in environments that are below 0°C OR exceed +40°C. -
Page 5: Description

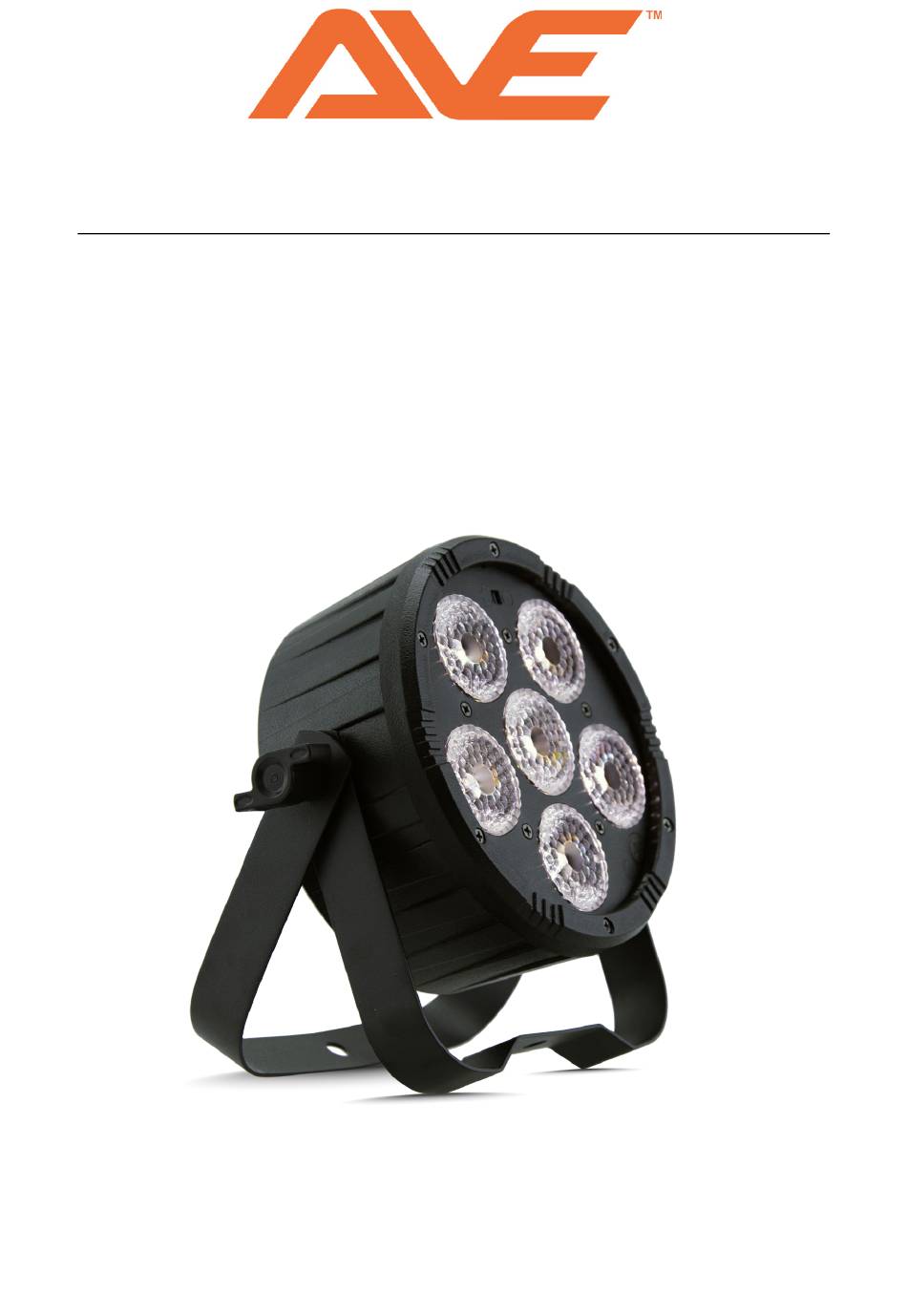

Description The AVE Hex-Flat 6 is a lightweight and high-output LED par can that is designed to give you the flexibility and performance your event or stage needs. Featuring 6x 12W LED diodes each with Hex- colour technology (RGBAW+UV) allowing you to mix any colour you could need. The par is built into a light ABS plastic housing with thermal fan to keep the fixture cool. -
Page 6: Setup
Setup To set up your AVE Hex-Flat 6 follow the below steps; 1. Mount the item on your lighting stand or on the floor 2. Connect the AC power cord from a grounded mains 240v power source. 3. Power the fixture/s on from the mains socket 4. -
Page 7: Operation
Operation To access the menus and functions of the Hex-Flat 6, use the four (4) buttons located under the main control screen. Button Label Function Menu Press to access main menu, or change function once the fixture is on Cycles upwards through the menu and options Down Cycles downwards through the menu and options Enter... -
Page 8: Dmx Channel
DMX Channels 6 CH Control 10 CH Control 1 CH 0 - 255 1 CH 0 - 255 2 CH 2 CH 0 - 255 Green 0 - 255 Green 3 CH 0 - 255 Blue 3 CH 0 - 255 Blue 4 CH 0 - 255...
