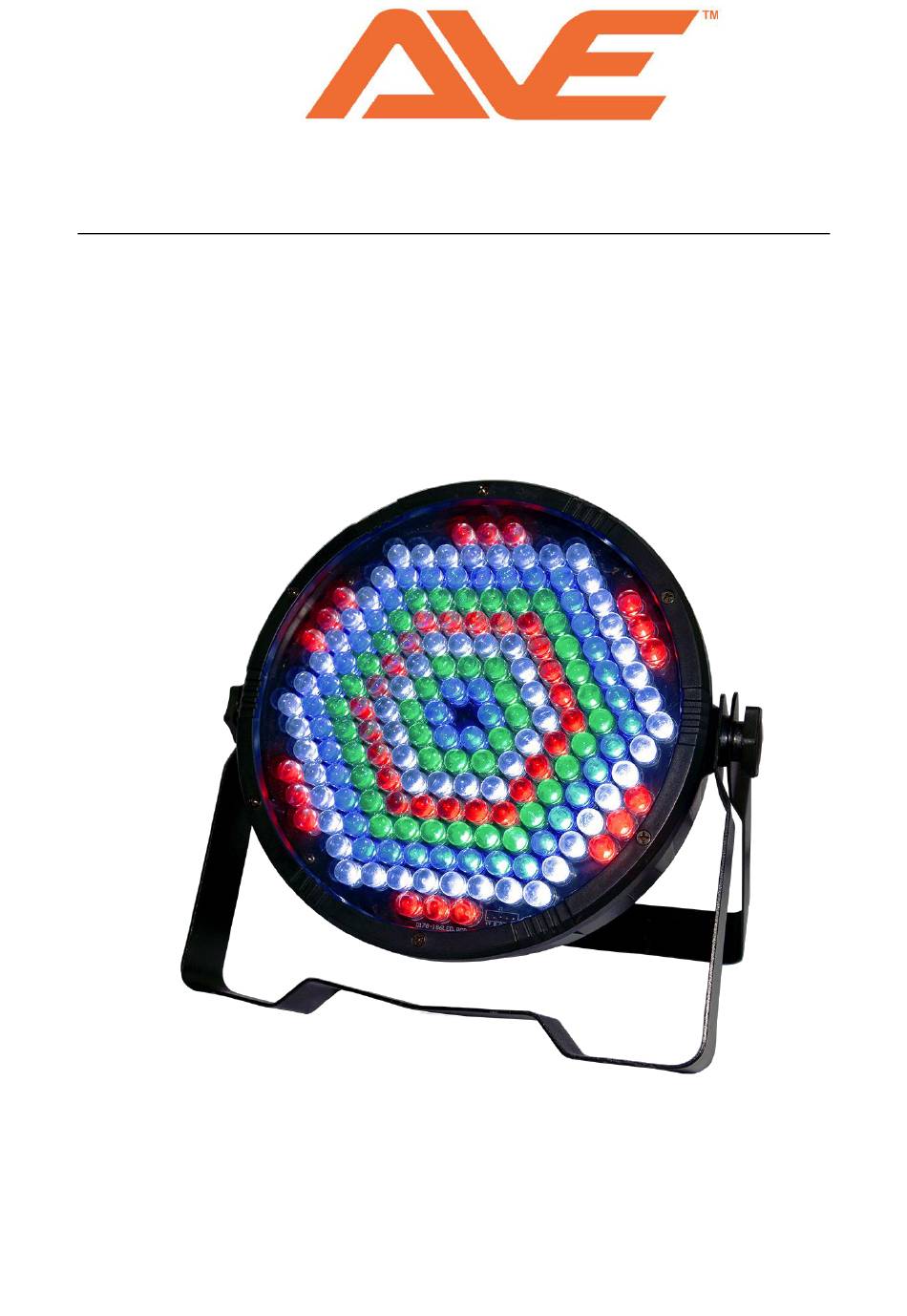

- Page 1 QUADPRO FLAT User Manual...
- Page 2 T able of Contents Safety ..................2 Important Safety Instructions ............3 Precautions..................4 Suspension ..................4 Description ................5 ................Features Setup ..................6 ..............Power Linking ................Mounting ................Operation ................Menu Map ..............DMX Channel Specifications................8...
- Page 3 Safety Important Safety Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OVEREXPOSE THIS FIXTURE TO RAIN OR MOISTURE. WARNING: CONNECT ONLY TO MAINS POWER SUPPLY WITH A PROTECTIVE EARTHING CONNECTION. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THE REAR COVER OR ATTEMPT TO OPEN THE LIGHTING FIXTURE.
- Page 4 Precautions If an AVE lighting fixture is used outdoors on a sunny day, ensure that it is in a shaded area and is well ventilated to help prevent overheating. Do not use AVE lighting fixtures in environments that are below 0°C OR exceed +40°C.

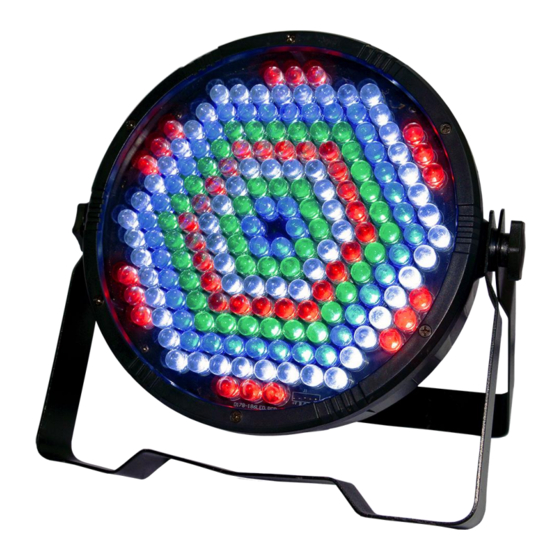

- Page 5 Description The AVE Quad Flat is a lightweight and versatile LED par can that is designed to give you the flexibility and performance your event or stage needs. Powered by 186 LEDs, divided Red, Green, Blue, and White diodes, allowing you to mix a huge colour spectrum. The par is built into a light ABS plastic housing with thermal fan to keep the fixture cool.
- Page 6 Setup To set up your AVE Quad Flat follow the below steps; 1. Mount the item on your lighting stand or on the floor 2. Connect the AC power cord from a grounded mains 240v power source. 3. Power the fixture/s on from the mains socket 4.
- Page 7 Operation To access the menus and functions of the Quad Flat, use the four (4) buttons located under the main control screen. Button Label Function Menu Press to access main menu, or change function once the fixture is on Cycles upwards through the menu and options Down Cycles downwards through the menu and options Enter...
- Page 8 DMX Channels 4 CH Control 8 CH Control 1 CH 1 CH 0 - 255 2 CH Green 2 CH 0 - 255 Green 3 CH 0 - 255 Blue 3 CH Blue 4 CH 0 - 255 White 4 CH White 5 CH 0 - 255...
