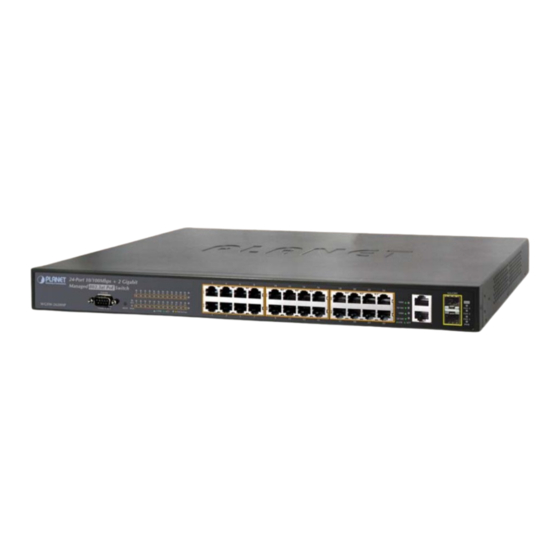

- Page 1 24-Port 10/100Mbps + 2 Gigabit TP/SFP Combo Managed 802.3at PoE Switch WGSW-2620HP Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Content ..................3 2. Requirements ....................4 3. Terminal Setup .................... 5 4. Logon to the Console ................... 6 5. Configure IP Address ................... 7 6. Start Web Management ................9 7. While IP Address be changed or forgotten admin password – ......11 8. -
Page 3: Package Content
1. Package Content Thank you for purchasing PLANET 24-Port Fast Ethernet + 2-Port Gigabit TP/ SFP Combo Managed 802.3at PoE Switch – WGSW-2620HP. Terms of “Managed Switch” means the WGSW-2620HP of this Quick Installation Guide. Upon open the box of the Managed Switch and carefully unpack it. The box should contain the following items: The Managed Switch x 1... -
Page 4: Requirements
2. Requirements The Managed Switch provide remote Web interface for manage; the following equipments are necessary for further management. Workstation installed with Ethernet NIC (Network Interface Card) The operate system of subscriber PC that running Windows XP/2003, Vista, Windows 7, MAC OS X, Linux, Fedora, Ubuntu or other platform compatible with TCP/IP protocols. -
Page 5: Terminal Setup
3. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to serial (console) port of the Managed Switch. The console port of the Managed Switch is DCE already, so that you can connect the console port directly through PC without the need of Null Modem. -
Page 6: Logon To The Console
4. Logon to the Console Once the terminal has connected to the device, power on the Managed Switch, the terminal will display that it is running testing procedures. Then, the following message asks the login user name and password. The factory default user name / password as following and the login screen in Figure 4-1 appear. -
Page 7: Configure Ip Address
5. Configure IP Address The Managed Switch is shipped with default IP address as following. IP Address: 192.168.0.100 Subnet Mask: 255.255.255.0 To check the current IP address or modify a new IP address for the Managed Switch, please use the procedures as follow: ... - Page 8 The previous command would apply the follow settings for the Managed Switch. IP: 192.168.1.100 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.254 Figure 5-2 Set IP Address Screen 5. Repeat Step 1 to check if the IP address is changed. Store current switch configuration 6.
-
Page 9: Start Web Management
6. Start Web Management The Managed Switch provides a built-in browser interface. You can manage it remotely by having a remote host with Web browser, such as Microsoft Internet Explorer, Mozilla Firefox, Google Chrome or Apple Safari. Managed Switch PC / Workstation with IE Browser RJ-45/UTP-Cable... - Page 10 3. After entering the user name and password, the Web main screen appears as Figure 6-3. Figure 6-3 Web Main Screen of WGSW-2620HP Managed Switch Now, you can use the Web management interface to continue the Managed Switch management, please refer to the user manual for more detail.
-
Page 11: While Ip Address Be Changed Or Forgotten Admin Password
192.168.0.xx and default user name / password. Be noted, all the previous setup will disappeared after factory reset. 24-Port 10/100Mbps + 2 Gigabit Managed 802.3at PoE Switch Console WGSW-2620HP RESET PoE In-Use 57600, N, 8, 1 Hardware Reset... -
Page 12: Customer Support
8. Customer Support Thank you for purchase PLANET products. You can browse our online FAQ resource at the PLANET Web site first to check if it could solve you issue. If you need more support information, please contact PLANET switch support team.
